Tripp Lite by Eaton S3M50K SmartOnline 50kVA Tower UPS - Double Conversion Online - 120/230V AC Input - 120/208V AC Output - Pure Sine Wave
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SmartOnline UPS employs double conversion online topology, which continuously conditions incoming AC power to DC and then back to clean, regulated AC. This process ensures complete isolation from utility noise, spikes, and frequency variations, providing the highest level of power quality. The unit features a unity output power factor of 1.0, allowing it to support more connected equipment without overloading its capacity rating.
Comprehensive management capabilities are built in, including support for SNMP, SSH, and Telnet protocols for remote monitoring and control. An optional WEBCARDLXMINI network card can be added for enhanced web-based management. The front panel houses a large 5-inch color LCD touchscreen that provides intuitive access to status information, diagnostics, alarm settings, and configuration menus. Four LED indicators offer at-a-glance status for AC mode, bypass, battery, and fault conditions.
Key Product Advantages
The S3M50K combines robust power protection with operational efficiency and scalable design. Its compact tower footprint is optimized for space-constrained environments like server rooms, colocation facilities, and edge computing sites, allowing more revenue-generating equipment to be housed in the same floor space.
High Efficiency Operation
Achieves up to 98% efficiency in ECO mode and up to 94% in online mode, reducing electricity consumption and associated cooling costs. Schedulable economy mode allows automatic efficiency adjustments based on time of day.
- ENERGY STAR 2.0 certified
- Reduces utility costs
- Lowers thermal output
Parallel Capability
Supports parallel operation of up to six units for increased capacity or N+1 redundancy configurations. This scalability allows power protection to grow alongside IT infrastructure without replacing the entire UPS system.
- Capacity expansion
- Redundant configurations
- Future-proof design
Comprehensive Monitoring
The large color touchscreen LCD provides detailed local monitoring and control, while multiple network management options enable remote 24/7 oversight. Alarms for low battery, overload, shutdown, and bypass mode ensure prompt response to any issues.
- 5-inch touchscreen display
- Remote management options
- Multiple alarm types
Deployment / Use Cases
This 50 kVA UPS is engineered for environments where continuous, clean power is non-negotiable. Its double conversion technology and pure sine wave output make it ideal for protecting sensitive electronic equipment from all types of power disturbances, including sags, surges, harmonics, and complete outages.
Primary deployment scenarios include data centers, server rooms, and network operations centers where it can protect entire racks of servers, storage arrays, and networking gear. The three-phase power support and hardwired connection make it suitable for industrial applications, manufacturing facilities, and financial institutions where uptime directly impacts operations and revenue. Healthcare facilities, government installations, and educational institutions also benefit from its reliable power protection for critical systems.

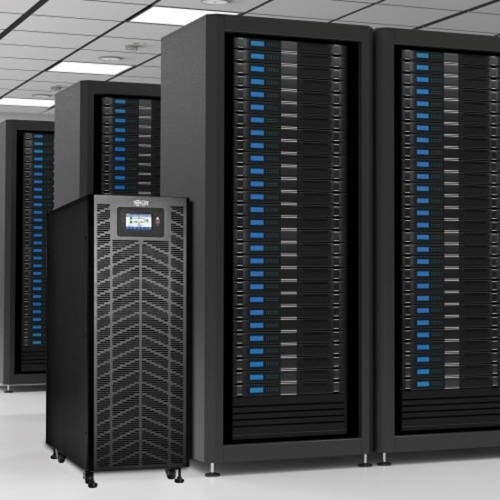

Data Center & Server Room Protection
Provides clean, uninterrupted power to servers, storage, and networking equipment, ensuring business continuity during power events. The compact tower design fits well in standard data center layouts.
Industrial & Edge Computing
Suitable for manufacturing environments, remote edge computing sites, and telecommunications infrastructure where power quality may be inconsistent. The wide input voltage range accommodates various electrical service conditions.

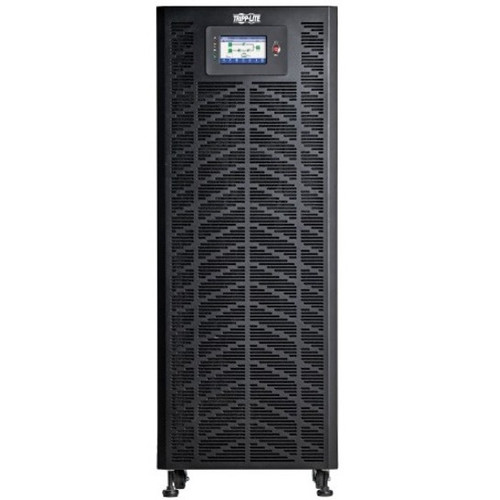

Physical Profile
The S3M50K features a tower form factor measuring 47.24 inches in height, 17.40 inches in width, and 33.46 inches in depth. With an approximate weight of 353 pounds, it requires proper handling equipment and floor loading consideration during installation. The design prioritizes serviceability with accessible components while maintaining a professional appearance suitable for data center environments. The unit operates at elevations up to 3,280 feet and includes environmental compliance with RoHS standards.
- Width
- 17.40" (441.96 mm)
- Depth
- 33.46" (849.88 mm)
- Height
- 47.24" (1199.90 mm)
- Weight
- 353.04 lb (160136.25 g)
What's in the Box
The package includes the SmartOnline S3M50K 50kVA Tower UPS along with essential connectivity accessories for immediate deployment.
Highlights
- 50 kVA double conversion online UPS with pure sine wave output
- Zero transfer time ensures uninterrupted power to connected equipment
- Three-phase power support with hardwired connection
- 5-inch color LCD touchscreen for comprehensive local monitoring
- SNMP, SSH, and Telnet management for remote oversight
- Parallel capability supports up to six units for capacity or redundancy
- ENERGY STAR 2.0 certified with high-efficiency operation
- Compact tower footprint saves valuable data center space
- Includes RS-232, parallel, USB, and dry contact connectivity
- 2-year limited warranty with RoHS environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | S3M50K |
| Brand Name | Tripp Lite series |
| Product Line | SmartOnline |
| Product Series | S3M |
| Product Model | S3M50K |
| Product Name | SmartOnline S3M50K 50kVA Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | Hard Wire (3-PH) |
| Transfer Time | 0 ns |
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Phase | Three Phase |
| Energy Saving | High efficiency economy mode operation; Schedulable daily hours of economy mode operation |
| Application/Usage | IT Equipment,Network,Telecommunication,Finance,Industrial,Data Center,Server Room,Critical System,Banking,Education,Healthcare,Government,Manufacturing Facility,Edge Computing |
| Power Description | |
| Load Capacity (VA) | 50 kVA |
| Input Voltage | 120 V AC,230 V AC |
| Output Voltage | 120 V AC,208 V AC |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Management | |
| Network Management | SNMP Manageable,SSH,Telnet |
| Alarm | Low Battery,Overload,Shutdown,Bypass Mode |
| Controls/Indicators | |

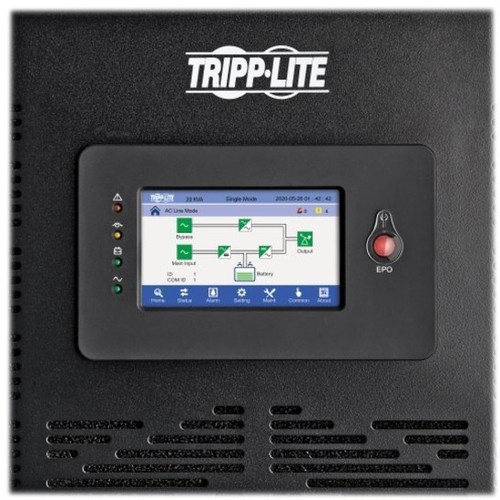

| Status Indicators | Front Panel LCD Display: Large touchscreen color LCD display (5in/ 12.7cm) enables comprehensive local monitoring Diagnostics and control Intuitive and user-friendly interface Sub-screens Status: Home Status Alarm Setting Maint Common About LED Indicators: Four LEDs indicate AC mode (Green) Bypass (Yellow) Battery (Yellow) Fault (Red) Modes |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Battery Information | |
| DC System Voltage | 120 V DC |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 3280 ft (999744 mm) |
| Thermal Dissipation | 12628 BTU/h |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 47.24" (1199.90 mm) |
| Width | 17.40" (441.96 mm) |
| Depth | 33.46" (849.88 mm) |
| Weight (Approximate) | 353.04 lb (160136.25 g) |
| Miscellaneous | |
| Package Contents | SmartOnline S3M50K 50kVA Tower UPS RS-232 Cable (Male/Female), 5 ft. (1.5 m) Parallel Cable (Male/Female), 5 ft. (1.5 m) USB Cable, 5 ft. (1.5 m) Dry Contact Connector (Green) Owner's Manual |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The Tripp Lite by Eaton SmartOnline S3M50K provides 50 kVA of power capacity. This rating indicates the maximum apparent power the UPS can deliver to connected equipment. With a unity power factor of 1.0, it can support substantial IT loads including servers, storage arrays, and networking gear in data center and industrial environments.
What input and output voltages does this UPS support?
This UPS accepts input voltages of 120 V AC and 230 V AC, providing flexibility for different electrical service configurations. It delivers output voltages of 120 V AC and 208 V AC at 60 Hz with pure sine wave quality. The dual voltage support makes it compatible with a wide range of equipment commonly found in North American data centers and commercial facilities.
What type of UPS topology does this model use?
The S3M50K employs double conversion online topology, which is the highest level of UPS protection available. This technology continuously converts incoming AC power to DC and then back to clean, regulated AC, providing complete isolation from utility power problems. It offers zero transfer time to battery backup and delivers pure sine wave output suitable for sensitive electronic equipment.
How can I monitor and manage this UPS?
Local monitoring is provided through a 5-inch color LCD touchscreen on the front panel, offering intuitive access to status, diagnostics, and configuration. For remote management, the UPS supports SNMP, SSH, and Telnet protocols. An optional WEBCARDLXMINI network card can be added for web-based management. The unit also includes serial, USB, and dry contact ports for additional connectivity options.
Can multiple units be connected together?
Yes, this UPS supports parallel operation of up to six units. This capability allows for increased capacity when power requirements grow beyond a single unit's rating, or for creating N+1 redundant configurations where one unit can fail without affecting the protected load. The package includes a parallel cable to facilitate this connectivity.
What is included in the warranty?
Tripp Lite by Eaton provides a 2-year limited warranty for the S3M50K UPS. This warranty covers defects in materials and workmanship under normal use. The product also complies with RoHS environmental standards and carries ENERGY STAR 2.0 certification for energy efficiency. For complete warranty details and terms, refer to the included owner's manual or contact the manufacturer directly.
What power capacity is listed for this UPS?
The listed power specification is 50 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC,230 V AC, which helps position the unit for the right load level and installation role.
