Tripp Lite by Eaton SU5000RTF SmartOnline 5000VA/4. 5kW Rack/Tower UPS - 6U - 230V AC Input - Pure Sine Wave - AVR
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This online UPS employs double-conversion technology, continuously converting incoming AC power to DC and back to AC, isolating connected equipment from all power anomalies. It delivers a pure sine wave output with 98% efficiency in ECO mode, minimizing energy waste and heat generation. The unit supports a broad output voltage range from 100V AC to 240V AC and frequencies of 50 Hz or 60 Hz, ensuring compatibility with global equipment standards.
Power management is facilitated through an 180V DC system voltage, valve-regulated lead-acid batteries, and hot-swappable, user-replaceable battery modules. The built-in EMI/RFI noise filter and surge suppression protect against electrical interference, while the circuit breaker and thermal dissipation of 1560 BTU/h maintain safe operating conditions. The UPS operates within a temperature range of 32°F to 104°F (0°C to 40°C), suitable for controlled environments.
Key Product Advantages
The SU5000RTF distinguishes itself with enterprise-grade reliability, flexible deployment options, and advanced power quality features that safeguard sensitive electronics. Its design prioritizes uptime, manageability, and ease of maintenance in demanding IT and network applications.
Uninterrupted Power Quality
Double-conversion online topology and pure sine wave output ensure clean, stable power free from harmonics, sags, or surges, protecting servers, storage, and networking gear from damage and data corruption.
- 0 ns transfer time
- AVR corrects voltage fluctuations
- EMI/RFI noise filtering
Scalable Runtime & Management
Hot-swappable batteries allow for runtime extension or replacement without downtime, while network card, USB, serial, and dry contact interfaces enable remote monitoring, shutdown, and integration with power management software.
- 11-minute runtime at half load
- SNMP, USB, RS-232 connectivity
- LCD with status indicators
Rack/Tower Flexibility
The 6U form factor includes rack-mounting hardware and tower support stands, offering installation versatility for data center racks or standalone tower setups where rack space is limited.
- 6U rack height
- Tower stands included
- 201 lb weight for stability
Deployment / Use Cases
This UPS is engineered for environments where power continuity is non-negotiable, such as data centers hosting virtualized servers, network operations centers with critical switches and routers, and industrial control systems requiring clean power. Its 5000VA capacity supports high-density server racks, storage arrays, and networking equipment clusters.
In healthcare, it can back up diagnostic imaging systems or laboratory analyzers. In broadcasting, it protects editing suites and transmission equipment. The flexible output voltage and frequency make it suitable for multinational deployments or facilities with mixed-voltage gear. The included SUTFMR 120V stepdown transformer further extends compatibility with 120V devices.
Data Center Server Racks
Provides backup for blade servers, SAN/NAS storage, and top-of-rack switches, with network management for integration into DCIM solutions and audible alarms for immediate fault notification.
Network Infrastructure Hubs
Safeguards core routers, firewalls, and VoIP systems against outages, with pure sine wave output ensuring compatibility with active PFC power supplies common in modern networking hardware.
Physical Profile

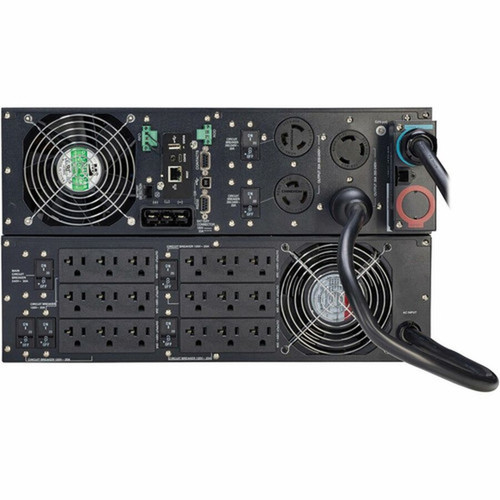

The SU5000RTF measures 10.20" (259.08 mm) in height, 17.30" (439.42 mm) in width, and 27.03" (686.56 mm) in depth, occupying a 6U rack space. Its 201 lb (91172.07 g) weight ensures stability in rack or tower configurations, with reinforced construction for durability. The front panel features an LCD display, status LEDs, and controls for easy operation, while rear panels house the extensive outlet array and connectivity ports.
- Width
- 17.30" (439.42 mm)
- Depth
- 27.03" (686.56 mm)
- Height
- 10.20" (259.08 mm)
- Weight
- 201 lb (91172.07 g)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes all necessary components for immediate deployment and management.
Highlights
- 5000VA/4.5kW double-conversion online UPS for mission-critical IT equipment
- Pure sine wave output with 0 ns transfer time and AVR for clean power
- 6U rack/tower form factor with included mounting hardware and tower stands
- 3-minute full-load and 11-minute half-load runtime with hot-swappable batteries
- LCD display, network card, USB, RS-232, and SNMP for comprehensive management
- 21 outlets (18x NEMA 5-20R, 2x L6-20R, 1x L6-30R) plus hardwired option
- 230V AC input with wide output voltage range (100-240V AC) and 50/60 Hz support
- 98% efficiency in ECO mode, Energy Star certified, and RoHS compliant
- 2-year limited warranty with $250,000 ultimate lifetime insurance
- Valve-regulated lead-acid batteries, user-replaceable and hot-swappable
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SU5000RTF |
| Brand Name | Tripp Lite series |
| Product Line | SmartOnline |
| Product Model | SU5000RTF |
| Product Name | SmartOnline SU5000RTF 5000VA Rack/tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA L6-30P,Hardwired |
| Receptacle Type | NEMA 5-20R,NEMA L6-20R,NEMA L6-30R,Hardwired |
| Receptacle Detail | 18 x NEMA 5-20R,2 x NEMA L6-20R,1 x NEMA L6-30R |
| Cord Length | 10 ft (3.05 m) |
| Transfer Time | 0 ns |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Efficiency Detail | 98% (ECO Mode) |
| Application/Usage | Mission Critical Equipment,IT Equipment,Network Device |
| Surge Suppression | Yes |
| Features | Audible Alarm,Cold Start Function,Green Energy Saving |
| Power Description | |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 4.50 kW |
| Input Voltage | 230 V AC |
| Input Current | 23.30 A |
| Output Voltage | 230 V AC,240 V AC,220 V AC,208 V AC,200 V AC,100 V AC,110 V AC,120 V AC |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Pure Sine Wave |
| Circuit Breaker | Yes |
| Output Power Factor | 0.9 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Network Card,DB-9 RS-232,Dry Contact,USB,SNMP |
| Alarm | Utility Power Failure,Low Battery,Overload,Battery Fault,Remote Shutdown |
| Controls/Indicators | |
| Status Indicators | LED Indicators: 4 status-indicating LEDs |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Battery Information | |
| DC System Voltage | 180 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 1560 BTU/h |
| Physical Characteristics | |
| Height | 10.20" (259.08 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 27.03" (686.56 mm) |
| Rack Height | 6U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 201 lb (91172.07 g) |
| Miscellaneous | |

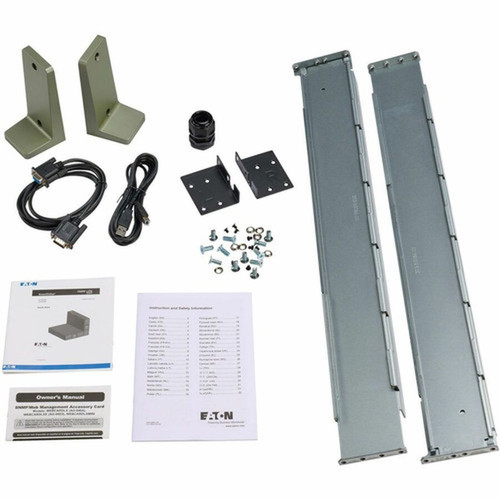

| Package Contents | SmartOnline SU5000RTF 5000VA Rack/tower UPS SUTFMR 120V Stepdown Transformer WEBCARDLXE Network Card USB Cable RS-232 Cable Tower Support Stands Cable Gland for Hardwire Connection Rack-mounting Hardware for UPS and Transformer Quick Start Guide |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
| Additional Warranty Information | 250,000 Ultimate Lifetime Insurance |
User Manual
FAQ
What is the power capacity of the SU5000RTF UPS?
The SU5000RTF provides 5000VA (5 kVA) and 4500W (4.5 kW) of power capacity. This supports high-density server racks, network gear, and storage systems, with an input voltage of 230V AC and a broad output range from 100V AC to 240V AC for versatile equipment compatibility.
How long does the battery backup last during a power outage?
At full load (4.5 kW), the runtime is 3 minutes, allowing for orderly shutdown of connected equipment. At half load (2.25 kW), runtime extends to 11 minutes. These times are based on the included valve-regulated lead-acid batteries, which are hot-swappable for replacement or expansion without downtime.
Can this UPS be installed in both rack and tower configurations?
Yes, the SU5000RTF is designed for flexible deployment as a 6U rack-mount unit or as a standalone tower. The package includes rack-mounting hardware for the UPS and transformer, plus tower support stands, making it suitable for data centers, server rooms, or locations without rack infrastructure.
What management and monitoring options are available?
Management interfaces include a network card (WEBCARDLXE) for SNMP/web monitoring, USB and DB-9 RS-232 for local software control, and dry contacts for external alarm integration. The front LCD display and four status LEDs provide real-time information on utility power, battery status, load, and faults.
Does this UPS provide pure sine wave output?
Yes, the SU5000RTF delivers pure sine wave output, which is essential for sensitive electronics like servers, networking equipment, and medical devices. This ensures compatibility with active power factor correction (PFC) power supplies and prevents potential damage or instability from simulated sine waves.
What is included in the warranty?
The UPS comes with a 2-year limited warranty from Tripp Lite by Eaton. Additionally, it includes $250,000 ultimate lifetime insurance, which covers connected equipment against damage due to power surges or UPS failure, providing extra protection for your investment.
What power capacity is listed for this UPS?
The listed power specification is 5 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
