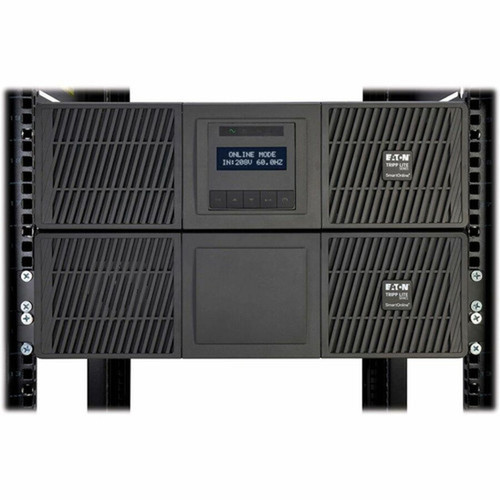

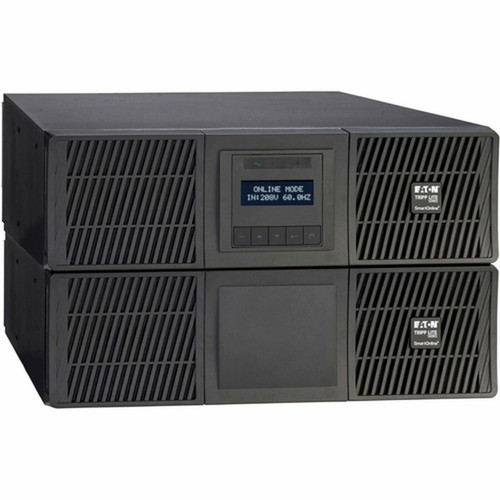

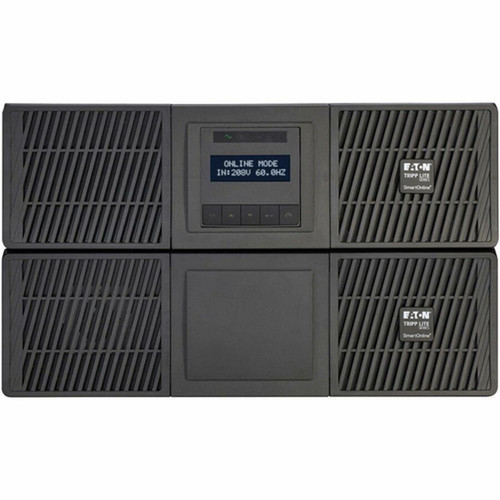

Tripp Lite by Eaton SU6000RTF SmartOnline 6000VA Rack/Tower UPS - 6U Double Conversion Online - 5. 40 kW - Pure Sine Wave
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This UPS employs double conversion online topology, which continuously converts incoming AC power to DC and then back to clean AC, providing complete isolation from utility power anomalies. The 180 V DC battery system uses valve-regulated lead-acid chemistry and is both hot-swappable and user-replaceable, minimizing downtime during maintenance.
Power management features include a built-in circuit breaker, surge suppression, and an EMI/RFI noise filter. The unit offers extensive connectivity through a network card slot, DB-9 RS-232 port, dry contact terminals, and USB interface for comprehensive monitoring and control via SNMP or dedicated software.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SmartOnline SU6000RTF delivers enterprise-grade power protection with the flexibility to deploy in either rack-mounted or tower configurations. Its robust design ensures reliable operation for critical infrastructure where power continuity is non-negotiable.
Zero Transfer Time Protection
Double conversion technology eliminates any break in power during switchover, providing seamless protection against blackouts, brownouts, and voltage spikes.
- Continuous power conditioning
- Complete isolation from grid disturbances
- Ideal for sensitive electronic equipment
Comprehensive Outlet Configuration
Equipped with 18 NEMA 5-20R, 2 NEMA L6-20R, and 1 NEMA L6-30R receptacles, plus hardwiring capability via included cable gland.
- Supports multiple device types
- Flexible power distribution
- Hardwire option for permanent installations
Advanced Battery Management
Features hot-swappable, user-replaceable batteries with cold start function, allowing system operation even when utility power is unavailable and batteries need replacement.
- Minimizes maintenance downtime
- Extends system availability
- Simplifies battery replacement procedures
Deployment / Use Cases
The SU6000RTF is engineered for environments where power quality and availability directly impact operational continuity. Its 6U rack-mountable form factor makes it suitable for standard server cabinets, while included tower support stands enable freestanding deployment in equipment rooms or data centers.
Primary applications include protecting server racks, network operation centers, telecommunications equipment, and industrial control systems. The 3-minute runtime at full load (extending to 8 minutes at half load) provides sufficient time for graceful shutdowns or transfer to backup generators during extended outages.
Data Center Server Protection
Provides clean, uninterrupted power to rack-mounted servers, storage arrays, and networking gear, preventing data corruption and hardware damage during power events.
Network Infrastructure Support
Ensures continuous operation of switches, routers, and communication equipment in network closets and telecommunications facilities.
Physical Profile
The UPS measures 10.20" (259.08 mm) in height, 17.30" (439.42 mm) in width, and 27.03" (686.56 mm) in depth, occupying 6U of rack space. Its substantial 201 lb weight reflects the robust construction and large battery capacity. The unit operates within a temperature range of 32°F to 104°F (0°C to 40°C), suitable for typical data center and equipment room environments.
- Width
- 17.30" (439.42 mm)
- Depth
- 27.03" (686.56 mm)
- Height
- 10.20" (259.08 mm)
- Weight
- 201 lb (91172.07 g)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes all necessary components for immediate deployment in either rack or tower configuration.
Highlights
- 6000VA/5.40 kW double conversion online UPS with pure sine wave output
- Zero transfer time and automatic voltage regulation (AVR) for seamless protection
- Rack/tower convertible design with 6U rack height and included mounting hardware
- Hot-swappable, user-replaceable valve-regulated lead-acid batteries
- 3-minute runtime at full load, extending to 8 minutes at half load
- 21 total outlets (18× NEMA 5-20R, 2× NEMA L6-20R, 1× NEMA L6-30R) plus hardwiring option
- Network management via optional card with SNMP, RS-232, dry contact, and USB interfaces
- 98% efficiency in ECO mode reduces energy costs and heat output
- Energy Star certified and RoHS compliant
- 2-year limited warranty with $250,000 ultimate lifetime insurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SU6000RTF |
| Brand Name | Tripp Lite series |
| Product Line | SmartOnline |
| Product Model | SU6000RTF |
| Product Name | SmartOnline SU6000RTF 6000VA Rack/tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA L6-30P,Hardwired |
| Receptacle Type | NEMA 5-20R,NEMA L6-20R,NEMA L6-30R,Hardwired |
| Receptacle Detail | 18 x NEMA 5-20R,2 x NEMA L6-20R,1 x NEMA L6-30R |
| Cord Length | 10 ft (3.05 m) |
| Transfer Time | 0 ns |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Efficiency Detail | 98% (ECO Mode) |
| Application/Usage | Mission Critical Equipment,IT Equipment,Network Device |
| Surge Suppression | Yes |
| Features | Audible Alarm,Cold Start Function,Green Energy Saving |
| Power Description | |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 5.40 kW |
| Input Voltage | 230 V AC |
| Input Current | 24.80 A |
| Output Voltage | 230 V AC,240 V AC,220 V AC,208 V AC,200 V AC,100 V AC,110 V AC,120 V AC |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Pure Sine Wave |
| Circuit Breaker | Yes |
| Output Power Factor | 0.9 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Network Card,DB-9 RS-232,Dry Contact,SNMP |
| Alarm | Utility Power Failure,Low Battery,Overload,Battery Fault,Remote Shutdown |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Battery Information | |
| DC System Voltage | 180 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 8 Minute |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 1895 BTU/h |
| Physical Characteristics | |
| Height | 10.20" (259.08 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 27.03" (686.56 mm) |
| Rack Height | 6U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 201 lb (91172.07 g) |
| Miscellaneous | |
| Package Contents | SmartOnline SU6000RTF 6000VA Rack/tower UPS SUTFMR 120V Stepdown Transformer WEBCARDLXE Network Card USB Cable RS-232 Cable Tower Support Stands Cable Gland for Hardwire Connection Rack-mounting Hardware for UPS and Transformer Quick start guide |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
| Additional Warranty Information | 250,000 Ultimate Lifetime Insurance |
User Manual
FAQ
What is the power capacity of the SU6000RTF UPS?
The Tripp Lite by Eaton SmartOnline SU6000RTF provides 6000VA (6 kVA) apparent power and 5.40 kW real power capacity. This substantial capacity supports multiple servers, network devices, or other critical equipment simultaneously, with an output power factor of 0.9 for efficient power delivery to modern electronic loads.
How long will this UPS run on battery power?
At full 5.40 kW load, the SU6000RTF provides approximately 3 minutes of runtime. At half load (2.70 kW), runtime extends to approximately 8 minutes. These runtimes allow sufficient time for graceful system shutdowns or transfer to backup generators during utility power failures.
Can this UPS be installed in both rack and tower configurations?
Yes, the SU6000RTF is designed for dual deployment. It occupies 6U of rack space and includes all necessary rack-mounting hardware. The package also contains tower support stands for freestanding installation, providing flexibility for different data center or equipment room layouts.
What type of power output does this UPS provide?
This double conversion online UPS delivers pure sine wave output, which is identical to utility-grade power. Pure sine wave is essential for sensitive electronic equipment, as it prevents compatibility issues, reduces heat generation, and ensures optimal performance of servers, networking gear, and other critical devices.
How is the SU6000RTF monitored and managed?
The UPS includes multiple management interfaces: an LCD display for local status, plus connections for an optional network management card (WEBCARDLXE included), DB-9 RS-232 serial port, dry contact terminals, and USB. These enable remote monitoring via SNMP, email alerts, shutdown commands, and integration with power management software.
What input voltage does this UPS require?
The SU6000RTF requires 230 V AC input at 24.80 A. It outputs a wide range of voltages from 100 V AC to 240 V AC at either 50 Hz or 60 Hz frequency, making it compatible with equipment designed for different regional power standards without requiring additional transformers for most applications.
What power capacity is listed for this UPS?
The listed power specification is 6 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
