Tripp Lite by Eaton SUINT3000RTXL2U SmartOnline 3000VA/2500W 2U Rack/Tower UPS - 220V Input - 10 Outlets - Hot-Swappable Batteries
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SmartOnline UPS employs double-conversion online technology, which continuously converts incoming AC power to DC and back to clean AC output, providing complete isolation from power line disturbances. The unit delivers 3 kVA/2500W of power capacity with output voltages configurable for 208V, 220V, 230V, or 240V operation.
The battery system offers 6 minutes of runtime at full load and 15 minutes at half load, with a typical recharge time of 4.8 hours. Management capabilities include SNMP, USB, and serial interfaces for remote monitoring and control through Tripp Lite's PowerAlert software.
This section brings together practical product details such as Receptacle Detail, Transfer Time, Load Capacity (VA), Load Capacity (Watt), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SUINT3000RTXL2U combines enterprise-grade power protection with flexible deployment options in a compact 2U footprint. Its dual rack/tower mounting capability makes it suitable for both data center and office environments where space optimization is critical.
Zero Transfer Time Protection
Double-conversion technology ensures continuous clean power with no switching delay during utility power failures or fluctuations.
- Complete isolation from power disturbances
- Constant voltage regulation
- Ideal for sensitive electronic equipment
Flexible Deployment Options

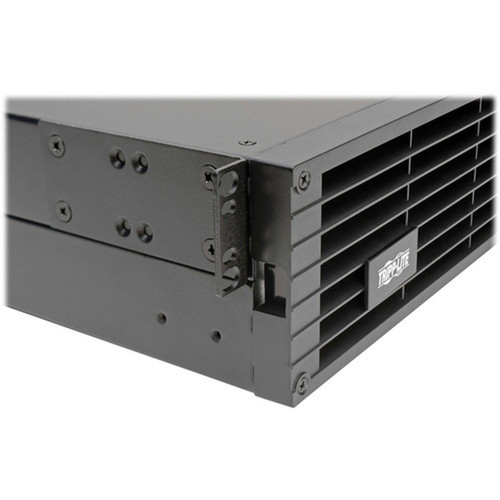

The 2U rack/tower design accommodates both standard server racks and standalone tower installations with included mounting hardware.
- Includes 4-post rackmount brackets
- Compact 3.5" height saves rack space
- 78.3 lb weight with stable footprint
Comprehensive Management
Multiple interface options provide complete monitoring and control capabilities for both local and remote power management.
- SNMP support for network integration
- USB and serial connectivity
- PowerAlert software for automated shutdown
Deployment / Use Cases
This 3000VA UPS is engineered for protecting critical infrastructure in small to medium business environments. Its 2U form factor and rack/tower flexibility make it particularly suitable for network closets, server rooms, and telecommunications installations where space is at a premium.

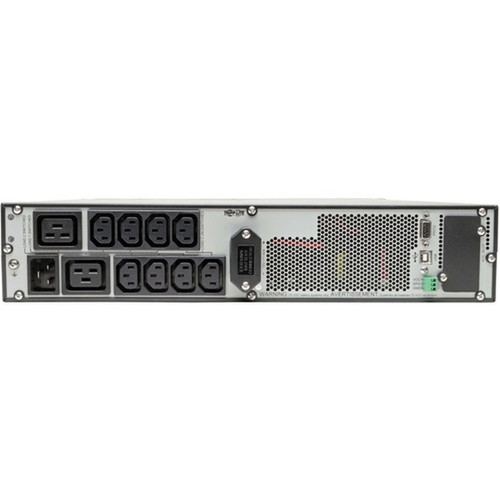

Typical applications include protecting network switches, routers, servers, storage systems, and VoIP equipment. The 10 outlets accommodate multiple devices, while the 220V input compatibility supports international power standards and higher efficiency operation.
Network Infrastructure Protection
Safeguard core networking equipment including switches, routers, and firewalls with clean, uninterrupted power during outages.
- Protects against data corruption
- Maintains network connectivity
- Prevents equipment damage from surges
Server Room & Data Center
Provide reliable backup power for rack-mounted servers and storage systems in compact data center environments.
- 2U rack space optimization
- Hot-swappable batteries for maintenance
- SNMP integration with monitoring systems
Physical Profile
The SUINT3000RTXL2U features a compact design measuring 3.5" (88.9 mm) in height, 17.3" (439.42 mm) in width, and 26" (660.4 mm) in depth. This 2U form factor optimizes rack space while providing substantial power capacity. The unit weighs 78.3 pounds (35.5 kg) and includes four-post rackmount installation brackets for secure mounting in standard server racks.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.50" (88.90 mm), 17.30" (439.42 mm), 26" (660.40 mm), 78.30 lb (35516.28 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.30" (439.42 mm)
- Depth
- 26" (660.40 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 78.30 lb (35516.28 g)
What's in the Box
The package includes all necessary components for immediate deployment and operation.
Highlights
- 3000VA/2500W double-conversion online UPS protection
- 2U rack/tower form factor for space-efficient deployment
- 10 outlets with 220V input voltage compatibility
- Hot-swappable batteries for maintenance without downtime
- 6-minute full load runtime (15 minutes at half load)
- SNMP, USB, and serial management interfaces
- Zero transfer time with double-conversion technology
- Includes PowerAlert software for automated shutdown
- RoHS compliant and environmentally friendly
- 2-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SUINT3000RTXL2U |
| Brand Name | Tripp Lite series |
| Product Line | SmartOnline |
| Product Model | SUINT3000RTXL2U |
| Product Name | SmartOnline SUINT3000RTXL2U 3000 VA Tower/Rack Mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Receptacle Detail | 10 |
| Transfer Time | 0 ns |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.50 kW |
| Input Voltage | 220 V AC |
| Input Current | 15 A |
| Output Voltage | 240 V AC,208 V AC,220 V AC,230 V AC |
| Management | |
| Network Management | SNMP Manageable |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 6 Minute |
| Backup/Run Time (Half Load) | 15 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4.80 Hour |
| Physical Characteristics | |
| Height | 3.50" (88.90 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 26" (660.40 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 78.30 lb (35516.28 g) |
| Miscellaneous | |
| Package Contents | SmartOnline SUINT3000RTXL2U 3000 VA Tower/Rack Mountable UPS 4 Post Rackmount Installation Brackets C19 to C20 Power Cable PowerAlert Software CD USB Cable Serial Cable Owner's Manual with Warranty Information |
| Software Included | PowerAlert Software |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The Tripp Lite SmartOnline SUINT3000RTXL2U provides 3000VA (3 kVA) of apparent power and 2500W (2.5 kW) of real power capacity. This rating indicates the maximum load the UPS can support while maintaining battery backup functionality during power interruptions.
How long will this UPS run on battery power?
At full load (2500W), the UPS provides approximately 6 minutes of runtime. At half load (1250W), runtime extends to approximately 15 minutes. These times are based on the included batteries; runtime can be expanded with additional external battery packs.
What input voltage does this UPS require?
This UPS requires 220V AC input voltage with 15A current. It is designed for standard 220V power circuits commonly found in commercial and industrial environments, though it can also accommodate other input voltages within its operational range.
Can this UPS be mounted in a server rack?
Yes, the SUINT3000RTXL2U is designed for both rack and tower deployment. It occupies 2U of rack space (3.5" height) and includes four-post rackmount installation brackets. The unit can also be used as a standalone tower for environments without rack infrastructure.
What management options are available for this UPS?
This UPS supports multiple management interfaces including SNMP for network integration, USB for direct computer connection, and serial port for legacy systems. Tripp Lite's PowerAlert software is included for automated shutdown, monitoring, and configuration management.
Are the batteries hot-swappable in this UPS?
Yes, the SUINT3000RTXL2U features hot-swappable batteries that can be replaced without shutting down connected equipment. This design ensures continuous power protection during battery maintenance or replacement, which is essential for critical infrastructure applications.
What power capacity is listed for this UPS?
The listed power specification is 3 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 220 V AC, which helps position the unit for the right load level and installation role.
