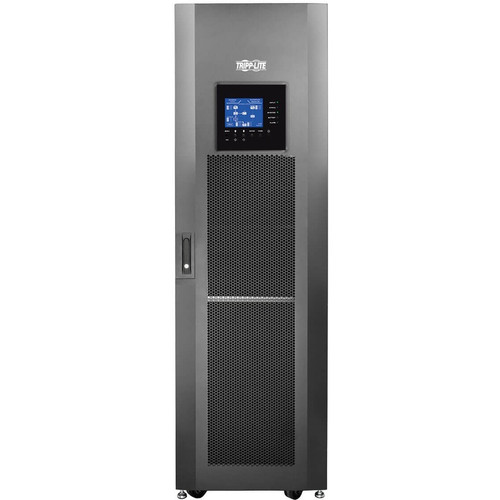

Tripp Lite by Eaton SV120KL SmartOnline 120kVA Tower UPS - Double Conversion Online - Pure Sine Wave - 120/230V AC Input/Output - SNMP/SSH/Telnet
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SmartOnline SV120KL operates on a double conversion online topology, which continuously conditions incoming power to deliver clean, stable output regardless of utility fluctuations. This design ensures zero transfer time to battery during outages, providing seamless protection for sensitive equipment. The pure sine wave output is essential for compatibility with modern servers, networking gear, and precision instruments that require high-quality power.
Electrical specifications include a 120 kVA load capacity, three-phase configuration, and hardwired plug/receptacle connections. The dual voltage input and output support both 120V AC and 230V AC, offering flexibility in deployment across different power grids. Network management is facilitated through SNMP, SSH, and Telnet protocols, enabling integration into existing monitoring systems for proactive power management.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Phase, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This UPS combines high-capacity power protection with advanced features designed for critical environments. The double conversion online topology ensures maximum power quality by isolating connected equipment from all common power problems, including surges, sags, and frequency variations.
Dual Voltage Flexibility
Supports both 120V AC and 230V AC input and output, allowing deployment in varied electrical systems without requiring voltage transformers.
- Eliminates need for external transformers
- Simplifies multi-site deployments
Comprehensive Network Management
Integrated SNMP, SSH, and Telnet support enables remote monitoring, configuration, and alerts, reducing onsite maintenance needs.
- Proactive outage notifications
- Centralized management capability
Pure Sine Wave Output
Delivers clean power that matches utility-grade electricity, ensuring compatibility with all sensitive electronic equipment including servers, storage, and medical devices.
- Prevents equipment damage
- Maintains optimal performance
Deployment / Use Cases
The SV120KL is designed for environments requiring high-capacity, reliable power protection with advanced management capabilities. Its tower form factor and substantial power rating make it ideal for standalone installations where rack mounting isn't feasible or where maximum power density is required.
Primary deployment scenarios include data center edge locations, industrial control rooms, healthcare imaging suites, and broadcast facilities. The dual voltage support allows international deployment flexibility, while the three-phase design handles balanced loads across commercial and industrial applications. The hardwired connections provide secure, permanent installation for mission-critical systems that cannot tolerate connection interruptions.
Data Center Power Distribution
Protects server racks, network switches, and storage arrays in colocation facilities or enterprise data centers where utility power quality varies.
Industrial Automation
Safeguards PLCs, HMIs, and control systems in manufacturing environments where power disturbances can cause costly production downtime.
Physical Profile
The tower form factor measures 79.13" high × 23.62" wide × 43.30" deep (2009.90 × 599.95 × 1099.82 mm) with an approximate weight of 1058 lb (479,900 g). These dimensions accommodate the substantial internal components required for 120 kVA capacity while maintaining a footprint suitable for floor placement in equipment rooms. The weight necessitates proper floor loading assessment and may require specialized handling equipment for installation.
- Width
- 23.62" (599.95 mm)
- Depth
- 43.30" (1099.82 mm)
- Height
- 79.13" (2009.90 mm)
- Weight
- 1058 lb (479900 g)
What's in the Box
The package includes all components necessary for immediate deployment and operation.
Highlights
- 120 kVA double conversion online UPS topology
- Pure sine wave output for equipment compatibility
- Dual voltage 120/230V AC input and output support
- Three-phase power configuration
- Hardwired plug and receptacle connections
- SNMP, SSH, and Telnet network management
- Tower form factor for floor placement
- Includes six 20kVA power modules
- RoHS compliant and environmentally friendly
- One-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SV120KL |
| Brand Name | Tripp Lite series |
| Product Line | SmartOnline |
| Product Series | SV |
| Product Model | SV120KL |
| Product Name | SmartOnline SV120KL 120kVA Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | Hardwired |
| Phase | Three Phase |
| Power Description | |
| Load Capacity (VA) | 120 kVA |
| Input Voltage | 120 V AC,230 V AC |
| Output Voltage | 120 V AC,230 V AC |
| Waveform Type | Pure Sine Wave |
| Management | |
| Network Management | SNMP Manageable,SSH,Telnet |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 79.13" (2009.90 mm) |
| Width | 23.62" (599.95 mm) |
| Depth | 43.30" (1099.82 mm) |
| Weight (Approximate) | 1058 lb (479900 g) |
| Miscellaneous | |
| Package Contents | SmartOnline SV120KL 120kVA Tower UPS Pre-installed network interface 6 X SV20PM 20kVA power modules Owner's manual DB9 cabling |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the power capacity of the SV120KL UPS?
The Tripp Lite by Eaton SmartOnline SV120KL provides 120 kVA (kilovolt-ampere) load capacity. This rating indicates the maximum apparent power the UPS can deliver to connected equipment, making it suitable for protecting substantial server racks, industrial systems, or multiple equipment cabinets in critical environments.
Does this UPS support dual voltage operation?
Yes, the SV120KL supports both 120V AC and 230V AC input and output voltages. This dual voltage capability allows deployment in different electrical systems without requiring external transformers, providing flexibility for multi-site installations or locations with varying utility power standards.
What type of power topology does this UPS use?
This unit employs double conversion online topology. This means incoming AC power is continuously converted to DC, then back to clean AC output, providing complete isolation from utility power problems. This design ensures zero transfer time to battery during outages and offers the highest level of power protection available.
How can I monitor and manage this UPS remotely?
The SV120KL includes integrated network management supporting SNMP, SSH, and Telnet protocols. These allow remote monitoring of power status, configuration changes, and alert notifications through existing network management systems. The pre-installed network interface facilitates immediate connectivity without additional hardware purchases.
What is included with the UPS for installation?
The package contains the SmartOnline SV120KL 120kVA Tower UPS unit, a pre-installed network interface, six SV20PM 20kVA power modules, an owner's manual, and DB9 cabling. These components provide everything needed for basic deployment, though professional installation is recommended due to the unit's size and weight.
What are the physical dimensions and weight?
The tower measures 79.13 inches high, 23.62 inches wide, and 43.30 inches deep (2009.90 × 599.95 × 1099.82 mm) with an approximate weight of 1058 pounds (479,900 grams). These dimensions require adequate floor space and proper handling equipment for installation in equipment rooms or data centers.
What power capacity is listed for this UPS?
The listed power specification is 120 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC,230 V AC, which helps position the unit for the right load level and installation role.
