Tripp Lite by Eaton SVT10KX SmartOnline 10kVA Tower UPS - Double Conversion Online - 220-415V AC Input/Output - SNMP/HTTP Remote Monitoring
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double-conversion online UPS continuously conditions incoming power, providing isolation from utility disturbances while delivering clean sine wave output. The 10kVA capacity supports substantial server and network equipment loads, with runtime specifications of 3.8 minutes at full load and 10.5 minutes at half load.
Voltage flexibility is a key technical advantage, with both input and output supporting 220V, 230V, 240V, 380V, 400V, and 415V AC configurations. Hardwired connections ensure secure, permanent installation, while SNMP/HTTP remote monitoring enables centralized management through network interfaces.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Load Capacity (VA), Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SmartOnline SVT10KX combines industrial-grade power protection with enterprise management features in a tower configuration that simplifies deployment. Its environmental compliance with RoHS standards and one-year limited warranty provide additional value for business purchasers.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Double Conversion Protection, Multi-Voltage Compatibility, Enterprise Management.
Double Conversion Protection
Provides complete isolation from utility power issues, including surges, sags, and frequency variations, while delivering clean regulated output to connected equipment.
Multi-Voltage Compatibility
Supports six different voltage configurations from 220V to 415V AC, making it adaptable to various electrical systems without requiring voltage transformers.
Enterprise Management
SNMP/HTTP remote monitoring enables integration with existing network management systems for centralized UPS monitoring and control.
Deployment / Use Cases
This UPS is particularly effective in environments where equipment must remain operational during brief power interruptions or until generators can engage. The tower form factor makes it appropriate for standalone deployment next to equipment racks or in locations where rack mounting isn't feasible.
Network administrators will appreciate the remote monitoring capabilities that allow integration with existing management platforms, providing alerts and status information without requiring physical access to the UPS location.
Server Room Protection
Ideal for protecting critical servers, storage arrays, and network switches in small to medium server rooms where rack space is limited or floor placement is preferred.
Industrial Control Systems
Suitable for manufacturing environments, process control systems, and industrial automation equipment requiring clean power with multi-voltage support.
Physical Profile
The tower design measures 33.90" in height, 9.80" in width, and 32.01" in depth, with a substantial weight of 260 pounds. This footprint requires adequate floor space and consideration for weight distribution when positioning the unit. The dimensions support stable standalone placement while accommodating the internal battery bank and power electronics necessary for 10kVA capacity.
- Width
- 9.80" (249 mm)
- Depth
- 32.01" (813 mm)
- Height
- 33.90" (861 mm)
- Weight
- 260 lb (117934.02 g)
What's in the Box
The package includes all necessary components for installation and operation.

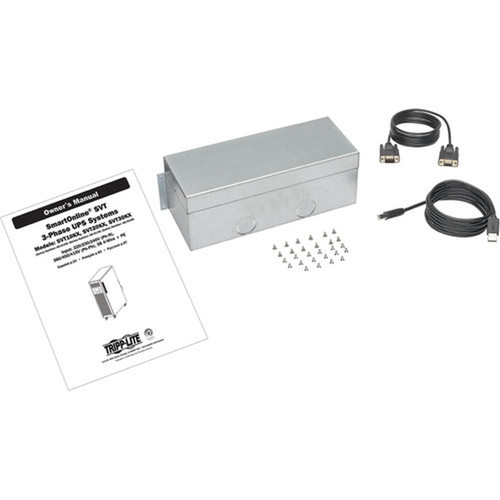

Package contents include SmartOnline SVT10KX 10kVA Tower UPS DB9 Cable Owner's Manual, SmartOnline SVT10KX 10kVA Tower UPS. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 10kVA double-conversion online UPS protection
- Tower form factor for standalone deployment
- Multi-voltage support: 220V-415V AC input/output
- SNMP/HTTP remote monitoring capabilities
- 3.8-minute runtime at full load
- 10.5-minute runtime at half load
- Hardwired connections for permanent installation
- RoHS compliant environmental standards
- One-year limited warranty
- Includes DB9 cable for management connectivity
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SVT10KX |
| Brand Name | Tripp Lite series |
| Product Line | SmartOnline |
| Product Series | SVTX |
| Product Model | SVT10KX |
| Product Name | SmartOnline SVT10KX 10kVA Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | Hardwired |
| Power Description | |
| Load Capacity (VA) | 10 kVA |
| Input Voltage | 220 V AC,230 V AC,240 V AC,380 V AC,400 V AC,415 V AC |
| Output Voltage | 220 V AC,230 V AC,240 V AC,380 V AC,400 V AC,415 V AC |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Battery Information | |
| Backup/Run Time (Full Load) | 3.80 Minute |
| Backup/Run Time (Half Load) | 10.50 Minute |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 33.90" (861 mm) |
| Width | 9.80" (249 mm) |
| Depth | 32.01" (813 mm) |
| Weight (Approximate) | 260 lb (117934.02 g) |
| Miscellaneous | |
| Package Contents | SmartOnline SVT10KX 10kVA Tower UPS DB9 Cable Owner's Manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the power capacity of the Tripp Lite SVT10KX UPS?
The SVT10KX provides 10kVA (kilovolt-ampere) of power capacity, which determines how much equipment it can support during normal operation and battery backup. This capacity is suitable for protecting multiple servers, network switches, and storage devices in small to medium server environments.
How long will this UPS run on battery power?
Runtime varies by load. At full load (10kVA), the UPS provides approximately 3.8 minutes of battery backup. At half load (5kVA), runtime extends to about 10.5 minutes. These specifications allow sufficient time for graceful equipment shutdown or generator startup during power interruptions.
What voltage configurations does this UPS support?
The SVT10KX supports six voltage configurations for both input and output: 220V, 230V, 240V, 380V, 400V, and 415V AC. This multi-voltage capability makes it adaptable to various electrical infrastructures without requiring additional voltage conversion equipment.
How is this UPS managed and monitored?
Network management is provided through SNMP/HTTP remote monitoring, allowing integration with existing network management systems. This enables centralized monitoring of UPS status, battery health, and power conditions without requiring physical access to the unit.
What type of UPS topology does the SVT10KX use?
This unit employs double-conversion online topology, which continuously converts incoming AC power to DC and then back to clean AC output. This provides complete isolation from utility power disturbances and delivers regulated sine wave power to connected equipment.
What is included in the package with this UPS?
The package contains the SmartOnline SVT10KX 10kVA Tower UPS unit, a DB9 cable for management connectivity, and the owner's manual. These components provide everything needed for basic installation and operation of the UPS system.
What power capacity is listed for this UPS?
The listed power specification is 10 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
220 V AC,230 V AC,240 V AC,380 V AC,400 V AC,415 V AC.
