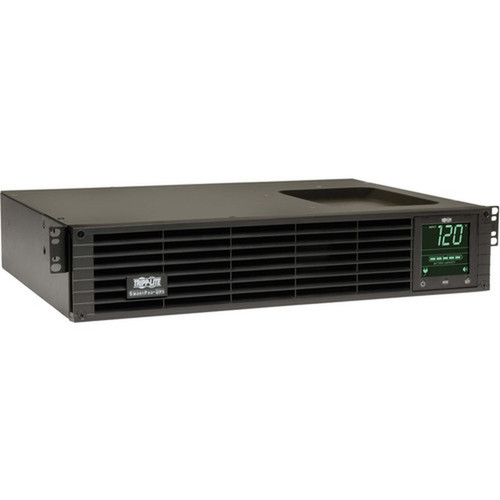

Tripp Lite by Eaton SMART1000RM2UN SmartPro 1000VA/800W Rack-mountable UPS - 2U Form Factor - 6 Outlets - Pure Sine Wave - 5. 3 Min Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SmartPro UPS operates with a single-phase input of 120V AC and provides regulated output voltages of 110V, 115V, or 120V AC. The pure sine wave output ensures compatibility with sensitive electronic loads, including servers, networking gear, and telecommunications equipment. The unit incorporates a 570-joule surge energy rating and EMI/RFI noise filtering for comprehensive power protection.
Battery performance includes a 5.3-minute runtime at full load and 15 minutes at half load, with a typical recharge time of four hours. The 24V DC system uses hot-swappable, replaceable lead-acid batteries, and the UPS includes an EPO port for emergency power-off functionality. Management interfaces include USB, serial, and network connectivity via SNMP, Telnet, and SSH protocols.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages

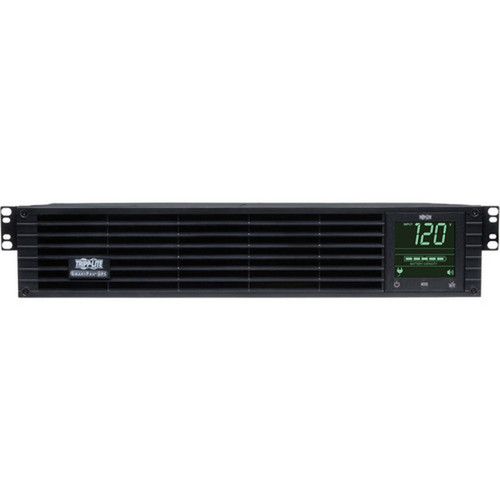

The SMART1000RM2UN combines robust power protection with enterprise-grade manageability and a compact 2U rack footprint. Its integrated WEBCARDLX network card provides full remote monitoring and configuration capabilities, while the front-panel LCD displays real-time voltage, battery status, and system alerts for local oversight.
Automatic Voltage Regulation
Maintains a continuous 120V nominal output during brownouts and overvoltages, correcting input voltage fluctuations without switching to battery power.
- Prevents unnecessary battery drain
- Extends battery life
- Ensures stable power to connected equipment
Network-Ready Management
The pre-installed WEBCARDLX card enables remote access via SNMP, Telnet, or SSH, allowing administrators to monitor power conditions, configure settings, and receive alerts from anywhere.
- 24/7 remote accessibility
- Supports SNMP v3 for secure management
- Compatible with major network management systems
Deployment / Use Cases
This rack-mountable UPS is ideal for environments requiring reliable backup power in a standardized rack form factor. Its 1000VA capacity and pure sine wave output make it suitable for protecting critical network infrastructure, servers, and telecommunications systems.
Common applications include wiring closets, server racks, digital signage installations, security systems, and retail point-of-sale environments. The unit's six outlets support multiple devices, while its 2U height conserves valuable rack space in dense deployments.
Network Equipment Protection
Provides backup power for switches, routers, firewalls, and wireless access points, ensuring network continuity during power interruptions.
- Supports SNMP for integration with NMS
- Pure sine wave safe for sensitive electronics
- 6 outlets for multiple devices
Server Room & Data Center
Offers runtime for safe shutdown of servers and storage systems, protecting data integrity and preventing hardware damage during outages.
- 2U rack-mount design saves space
- Hot-swappable batteries for zero-downtime maintenance
- EPO port for emergency shutdown
Physical Profile
The UPS measures 3.46 inches in height, 17.36 inches in width, and 12.52 inches in depth, occupying 2U of standard 19-inch rack space. Its compact design maximizes rack density while providing full front-panel accessibility for monitoring and controls. The unit weighs approximately 35.41 pounds and operates within a temperature range of up to 104°F (40°C).
- Width
- 17.36" (441 mm)
- Depth
- 12.52" (318 mm)
- Height
- 3.46" (88 mm)
- Weight
- 45 dB(A)
What's in the Box
The package includes all necessary components for immediate deployment and management.
Highlights
- 1000VA/800W rack-mountable UPS with 2U form factor for space-efficient deployment
- Six NEMA 5-15R outlets provide power to multiple connected devices
- Pure sine wave output ensures compatibility with sensitive electronic equipment
- 5.3-minute runtime at full load and 15 minutes at half load for critical backup
- Integrated WEBCARDLX network card enables remote management via SNMP, Telnet, or SSH
- Front-panel LCD displays real-time voltage, battery status, and system alerts
- Automatic voltage regulation corrects brownouts and overvoltages without battery use
- Hot-swappable, replaceable lead-acid battery supports maintenance without downtime
- Includes EPO port for emergency power-off and comprehensive alarm notifications
- Energy Star certified and RoHS compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART1000RM2UN |
| Brand Name | Tripp Lite series |
| Product Line | SmartPro |
| Product Model | SMART1000RM2UN |
| Product Name | SmartPro SMART1000RM2UN 1000VA Rack-mountable UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Overload Protection | Yes |
| Transfer Time | 4 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Application/Usage | Digital Signage,Network Equipment,Telecommunication,Security System,Wiring Closet,High-end System Component,Gaming Console,Retail and Wholesale,Casino,Hotel/Motel Management,Electronic |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 800 W |
| Input Voltage | 120 V AC |
| Output Voltage | 110 V AC,115 V AC,120 V AC |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 570 J |
| Management | |
| Network Management | SNMP/Telnet/SSH |
| Alarm | UPS StartUp,Power Failure,Low Battery,Overload,UPS Fault,Remote Shutdown |
| Controls/Indicators | |
| Status Indicators | Front Panel LCD Display: Front panel LCD information Configuration screen offers detailed UPS Site power status and operating data Plus configuration of voltage Operating mode Alarm function and a variety of additional options |
| Interfaces/Ports | |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 24 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5.30 Minute |
| Backup/Run Time (Half Load) | 15 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Thermal Dissipation | 134 BTU/h |
| Physical Characteristics | |
| Height | 3.46" (88 mm) |
| Width | 17.36" (441 mm) |
| Depth | 12.52" (318 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 35.41 lb (16060 g) |
| Miscellaneous | |

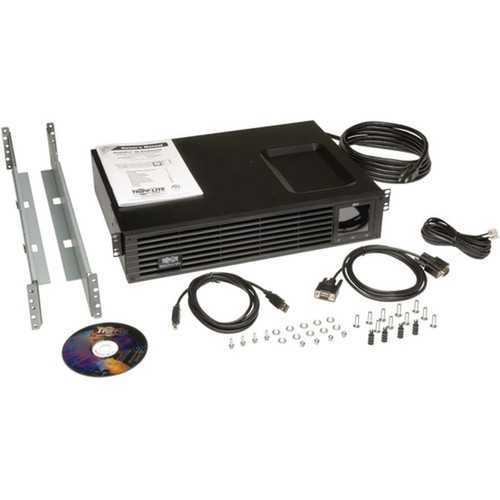

| Package Contents | SmartPro SMART1000RM2UN 1000VA Rack-mountable UPS WEBCARDLX Network Management Card Micro USB to USB-A Cable USB Cable DB9 Cable EPO Cable Rack-mounting Hardware Owner's Manual |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The Tripp Lite by Eaton SmartPro SMART1000RM2UN has a load capacity of 1000VA (1 kVA) and 800 watts. This capacity supports typical server, networking, and telecommunications equipment, providing sufficient power for multiple devices during outages.
How long does the battery last during a power outage?
At full load, the UPS provides 5.3 minutes of runtime, allowing time for safe shutdown of connected equipment. At half load, runtime extends to 15 minutes. These figures are based on the valve-regulated lead-acid battery included with the unit.
What type of outlets does this UPS have?
The UPS features six NEMA 5-15R outlets, all providing battery backup and surge protection. The input plug is a standard NEMA 5-15P, compatible with typical North American 120V AC wall outlets.
Can this UPS be managed remotely?
Yes, the included WEBCARDLX network management card supports remote access via SNMP, Telnet, and SSH protocols. This allows administrators to monitor power conditions, configure settings, and receive alerts from any network location.
What is the physical size and rack compatibility?
The UPS has a 2U rack-mountable form factor, measuring 3.46 inches high, 17.36 inches wide, and 12.52 inches deep. It fits standard 19-inch server racks and includes all necessary mounting hardware for installation.
Does this UPS provide pure sine wave output?
Yes, the UPS delivers pure sine wave output, which is essential for sensitive electronic equipment like servers, networking gear, and medical devices. This ensures clean, stable power that prevents compatibility issues and potential damage.
What power capacity is listed for this UPS?
The listed power specification is 1 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 6, which helps buyers understand how many connected devices it can support in its intended deployment.
