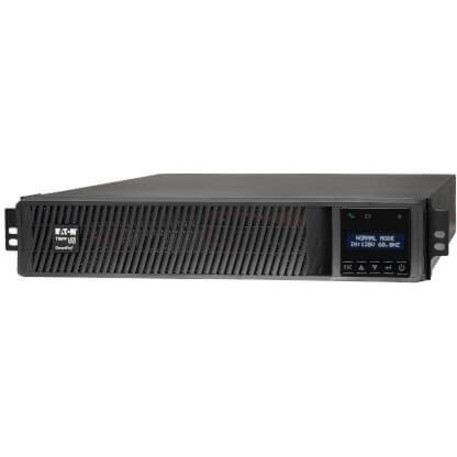

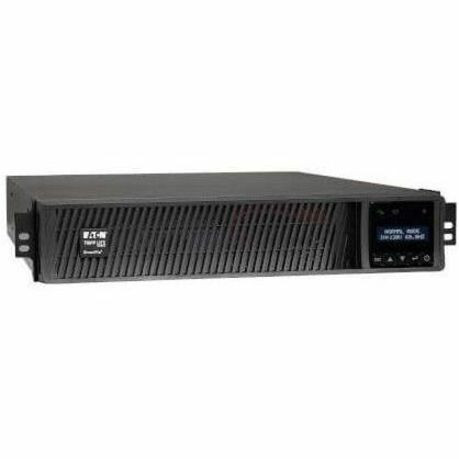

Tripp Lite by Eaton SMART1000RMX2UN SmartPro 1000VA Rack/Tower UPS - 2U Line-Interactive - 8 Outlets - Pure Sine Wave - 6 Min Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This line-interactive UPS features automatic voltage regulation (AVR) to correct brownouts and overvoltages without switching to battery, extending runtime and battery life. The transfer time is 4 milliseconds, ensuring seamless protection during brief power transitions. The unit supports a load capacity of 1 kVA (1000VA) and 1 kW with a unity power factor of 1, delivering maximum usable power at the rated capacity.
Battery performance includes a 6-minute runtime at full load and 17 minutes at half load, powered by a hot-swappable, valve-regulated lead-acid battery system. The typical recharge time is 4.50 hours. Input accepts 120 V AC at 60 Hz, while output provides adjustable voltage settings of 110 V AC, 115 V AC, or 120 V AC at 60 Hz with pure sine wave quality.
Key Product Advantages
The SmartPro SMART1000RMX2UN combines high-efficiency design with robust protection features for demanding IT infrastructure. Its ENERGY STAR 2.0 certification reduces electricity consumption and operational costs, while the RoHS compliance ensures environmentally responsible manufacturing.
Network-Ready Management
The included WEBCARDLX network interface card provides 24/7 remote monitoring, configuration, and graceful shutdown capabilities via SNMP, web browser, or compatible management software, ideal for unattended sites or IT environments.
- SNMP/Web management
- Remote shutdown alerts
- Power event logging
Comprehensive Power Protection
Beyond battery backup, the UPS safeguards connected equipment against surges, spikes, line noise, and frequency variations with a 380-joule surge rating and EMI/RFI filtering.
- 380 J surge protection
- EMI/RFI noise filter
- Overload protection
Deployment / Use Cases

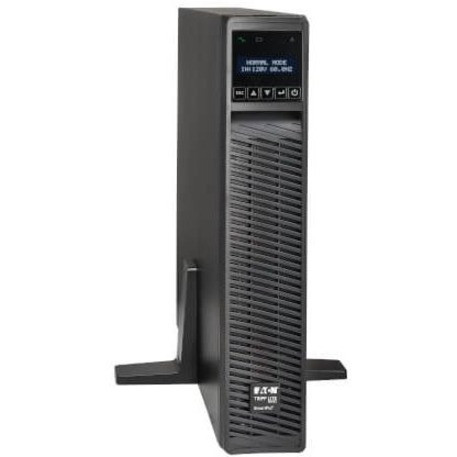

This UPS is engineered for small to medium server rooms, network closets, and edge computing locations where space is constrained but reliability is non-negotiable. The 2U form factor optimizes rack space while the tower configuration offers flexibility for office or lab settings.
Typical applications include protecting rack-mounted servers, network switches, network-attached storage (NAS) devices, VoIP equipment, and security system controllers. The 8 outlets accommodate multiple devices, and the pure sine wave output ensures compatibility with active PFC power supplies found in modern servers and networking gear.
Server & Storage Protection
Provides enough runtime for safe shutdowns of critical servers and storage arrays during extended outages, preventing data loss and hardware damage.
Network Infrastructure Support
Keeps switches, routers, and VoIP systems online during power fluctuations, maintaining network connectivity and communication services.
Physical Profile
The UPS measures 3.46 inches (88 mm) in height, 17.28 inches (439 mm) in width, and 17.60 inches (447 mm) in depth, with a weight of approximately 44.53 pounds (20.2 kg). The 2U rack height fits standard server racks, and the included rack-mounting hardware and tower support stands allow for versatile installation. The front-panel LCD displays UPS status and site power information across 10 selectable screens, while the compact design minimizes footprint in crowded racks.
- Width
- 17.28" (439 mm)
- Depth
- 17.60" (447 mm)
- Height
- 3.46" (88 mm)
- Weight
- 45 dB(A)
What's in the Box
The package includes all necessary components for immediate deployment in either rack or tower mode.
Highlights
- 1000VA/1000W line-interactive UPS with 2U rack/tower form factor
- 8 NEMA 5-15R outlets provide pure sine wave output for sensitive equipment
- 6-minute runtime at full load, 17 minutes at half load
- Includes WEBCARDLX network management card for remote SNMP/web monitoring
- Front-panel LCD with 10 selectable screens for real-time status and configuration
- Automatic voltage regulation (AVR) corrects brownouts and overvoltages
- Hot-swappable, valve-regulated lead-acid battery for easy maintenance
- ENERGY STAR 2.0 certified and RoHS compliant for energy efficiency and environmental safety
- 4 ms transfer time and 380-joule surge protection
- 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART1000RMX2UN |
| Brand Name | Tripp Lite series |
| Product Line | SmartPro |
| Product Model | SMART1000RMX2UN |
| Product Name | SmartPro SMART1000RMX2UN 1000VA Rack/Tower UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Overload Protection | Yes |
| Transfer Time | 4 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Green Energy-Saving |
| Application/Usage | Data Storage,Server,Switch,IT Equipment,VoIP |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 1 kW |
| Input Voltage | 120 V AC |
| Output Voltage | 110 V AC,115 V AC,120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 380 J |
| Output Power Factor | 1 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | SNMP/Web |
| Alarm | Remote Shutdown,UPS StartUp,Power Failure,Overload,UPS Fault,Low Battery |
| Controls/Indicators | |
| Status Indicators | Front Panel LCD Information And Configuration Screen: UPS and Site Power Status Operating Data Plus Configuration Of Voltage Frequency Operating Mode Alarm Function and A Variety Of Additional Options |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 48 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 6 Minute |
| Backup/Run Time (Half Load) | 17 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4.50 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Thermal Dissipation | 542 BTU/h |
| Physical Characteristics | |
| Height | 3.46" (88 mm) |
| Width | 17.28" (439 mm) |
| Depth | 17.60" (447 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 44.53 lb (20198.47 g) |
| Miscellaneous | |
| Package Contents | SmartPro SMART1000RMX2UN 1000VA Rack/Tower UPS WEBCARDLX Network Management Card USB cable DB9 cable Rack-mounting hardware Tower support stands Safety instructions Advanced User Guide |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The Tripp Lite by Eaton SmartPro SMART1000RMX2UN has a load capacity of 1 kVA (1000VA) and 1 kW. With a unity power factor of 1, it delivers the full 1000 watts of usable power at the rated capacity, making it suitable for protecting servers, network switches, and storage devices.
How long will the UPS run on battery during an outage?
At full load, the UPS provides 6 minutes of runtime. At half load, runtime extends to 17 minutes. These figures allow sufficient time for safe shutdowns of connected equipment or for auxiliary power sources to engage, preventing data loss and hardware damage.
Can this UPS be installed in a server rack?
Yes, the UPS has a 2U rack-mount form factor and includes all necessary rack-mounting hardware. It measures 3.46 inches in height, fitting standard 19-inch server racks. Tower support stands are also included for freestanding deployment on a floor or shelf.
What type of power output does this UPS provide?
The UPS delivers pure sine wave output, which is essential for compatibility with active power factor correction (PFC) power supplies found in modern servers, networking gear, and sensitive electronics. This ensures clean, stable power without risk of waveform distortion that could damage equipment.
Does this UPS include network management capabilities?
Yes, the included WEBCARDLX network management card enables remote monitoring, configuration, and control via SNMP or a web browser. This allows IT administrators to manage the UPS 24/7, receive alerts for power events, and initiate graceful shutdowns of connected systems during extended outages.
What is the warranty period for this UPS?
The Tripp Lite by Eaton SmartPro SMART1000RMX2UN comes with a 3-year limited warranty, covering defects in materials and workmanship. This warranty supports long-term reliability in business IT environments, providing peace of mind for critical power protection investments.
What power capacity is listed for this UPS?
The listed power specification is 1 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
