Tripp Lite by Eaton SMART3000CRMXLN SmartPro 3000VA Rack-mountable UPS - 4U Form Factor - 2. 88 kW - 7. 5 Min Full Load Runtime - AVR
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SmartPro UPS features a comprehensive power management architecture with 120 V AC input delivering regulated 110-115-120 V AC output through pure sine wave technology. The 48 V DC battery system supports hot-swappable operation with valve-regulated lead-acid chemistry for reliable performance across temperature ranges from 5°F to 122°F storage and up to 104°F operating.
Network management capabilities include SNMP, Telnet, and SSH protocols via the pre-installed WEBCARDLX network management card, complemented by USB HID-compliant and serial ports for local connectivity. The system provides dataline protection through RJ-11 ports and includes an EPO (Emergency Power Off) port for safety integration.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SMART3000CRMXLN combines robust power protection with enterprise-grade management features in a rack-optimized form factor. Automatic voltage regulation corrects brownout and overvoltage conditions without switching to battery power, extending battery life and reducing maintenance cycles.
Intelligent Power Management
Advanced monitoring through multiple interface options enables proactive power management and remote administration capabilities.
- Pre-installed WEBCARDLX network card
- SNMP/Telnet/SSH protocols
- USB HID-compliant and serial ports
- EPO safety integration
Reliable Runtime Performance
Optimized battery configuration delivers predictable runtime for critical shutdown procedures across varying load conditions.
- 7.5 minutes at full 2.88 kW load
- 19 minutes at half load
- 7.2-hour typical recharge time
- Hot-swappable battery design
Deployment / Use Cases
This 3000VA UPS is engineered for environments requiring reliable power continuity for digital signage, security systems, casino equipment, gaming consoles, and retail building infrastructure. The 4U rack-mountable design integrates seamlessly into standard server racks while providing accessible front-panel controls and status indicators.

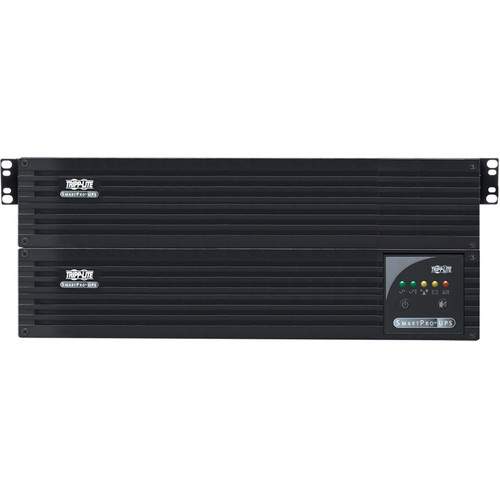

Mission-critical applications benefit from the system's comprehensive protection features including overload protection, 5ms transfer time, and detailed status monitoring through five LED indicators displaying line power, battery power, overload, voltage regulation, and battery replacement status.
Data Center & Server Room
Protect rack-mounted servers, network switches, and storage systems with sufficient runtime for graceful shutdowns during extended outages.
Network Infrastructure
Ensure continuous operation of critical networking equipment including routers, firewalls, and VoIP systems in wiring closets and telecom rooms.
Physical Profile

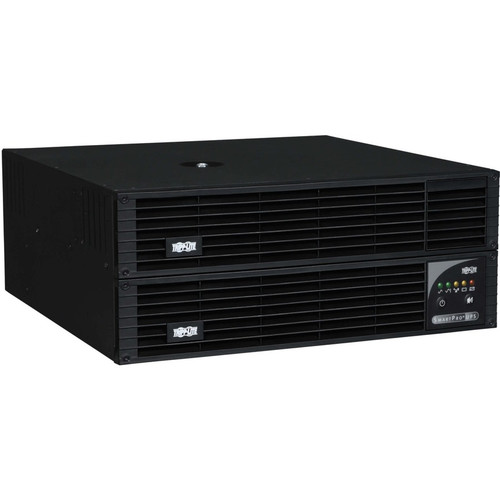

The SMART3000CRMXLN occupies 4U of standard 19-inch rack space with dimensions of 6.89" (175 mm) height, 17.28" (439 mm) width, and 17.80" (452 mm) depth. The 102-pound unit features rack-mounting hardware for secure installation in data center environments. Front-panel accessibility provides clear status indication and management port access while maintaining a professional appearance in rack configurations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.89" (175 mm), 17.28" (439 mm), 17.80" (452 mm), 45 dB(A). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.28" (439 mm)
- Depth
- 17.80" (452 mm)
- Height
- 6.89" (175 mm)
- Weight
- 45 dB(A)
What's in the Box
This UPS ships complete with all necessary components for immediate deployment in rack environments.
Highlights
- 3000VA/2880W rack-mountable UPS with 4U form factor
- 7.5-minute full load runtime and 19-minute half load runtime
- Automatic voltage regulation (AVR) for stable power output
- Hot-swappable valve-regulated lead-acid battery system
- Network management via SNMP, Telnet, and SSH protocols
- 8 x NEMA 5-15/20R and 1 x NEMA L5-30R outlets
- Pure sine wave output for sensitive equipment compatibility
- 5ms transfer time with EMI/RFI noise filtering
- Pre-installed WEBCARDLX network management card
- 3-year limited warranty with RoHS compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART3000CRMXLN |
| Brand Name | Tripp Lite series |
| Product Line | SmartPro |
| Product Model | SMART3000CRMXLN |
| Product Name | SmartPro SMART3000CRMXLN 3000VA Rack-mountable UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-15/20R,NEMA L5-30R |
| Receptacle Detail | 8 x NEMA 5-15/20R,1 x NEMA L5-30R |
| Dataline Protection | RJ-11 |
| Overload Protection | Yes |
| Transfer Time | 5 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Application/Usage | Digital Signage,Security System,Casino,Gaming Console,Network Device,Desktop Computer,Mission Critical Equipment,Retail Building,Wiring Closet,Hotel/Motel Management |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.88 kW |
| Input Voltage | 120 V AC |
| Output Voltage | 110 V AC,115 V AC,120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 570 J |
| Management | |
| Network Management | SNMP/Telnet/SSH |
| Alarm | Power Failure,Overload,Low Battery |
| Controls/Indicators | |
| Status Indicators | LED Indicators: 5 LEDs Indicate Line Power Battery Power Overload Voltage Regulation Battery Low/Replace Status |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 48 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 7.50 Minute |
| Backup/Run Time (Half Load) | 19 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 7.20 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Thermal Dissipation | 539 BTU/h |
| Physical Characteristics | |
| Height | 6.89" (175 mm) |
| Width | 17.28" (439 mm) |
| Depth | 17.80" (452 mm) |
| Rack Height | 4U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 102.01 lb (46270 g) |
| Miscellaneous | |
| Package Contents | SmartPro SMART3000CRMXLN 3000VA Rack-mountable UPS Pre-Installed WEBCARDLX Network Management Card USB Cable DB9 Cable EPO Cable Rack-mounting Hardware Owner's Manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Tripp Lite UPS?
The SMART3000CRMXLN delivers 3000VA (3 kVA) apparent power and 2880W (2.88 kW) real power capacity. This rating supports substantial equipment loads including servers, network gear, and critical infrastructure with 120V AC input providing regulated 110-120V AC output through pure sine wave technology.
How long will this UPS run on battery power?
At full 2.88 kW load, the UPS provides 7.5 minutes of runtime for orderly shutdown procedures. At half load (1.44 kW), runtime extends to 19 minutes. These figures represent typical performance with the valve-regulated lead-acid battery system under standard operating conditions.
What rack space does this UPS require?
This unit occupies 4U (approximately 7 inches) of vertical space in a standard 19-inch equipment rack. The dimensions are 6.89" height, 17.28" width, and 17.80" depth, with included rack-mounting hardware for secure installation in data center environments.
What management options are available for this UPS?
Network management includes SNMP, Telnet, and SSH protocols through the pre-installed WEBCARDLX network card. Local management options include USB HID-compliant and serial ports, with an EPO (Emergency Power Off) port for safety integration. Five front-panel LED indicators provide clear status for line power, battery, overload, voltage regulation, and battery replacement.
What type of outlets does this UPS provide?

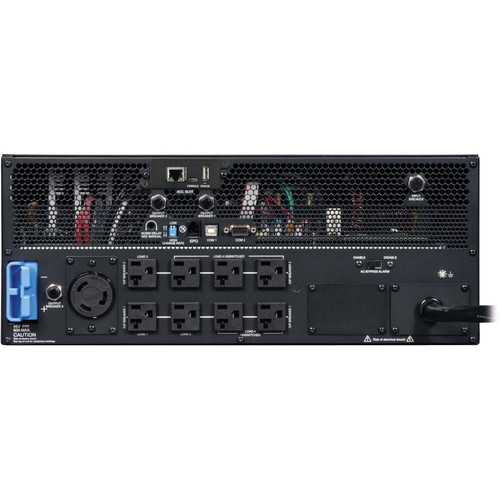

The unit features eight NEMA 5-15/20R outlets and one NEMA L5-30R outlet, accommodating various equipment plug types. The input connection uses a NEMA L5-30P plug, with overload protection and EMI/RFI noise filtering across all outlets for comprehensive equipment protection.
What is included with the SMART3000CRMXLN UPS?
The package contains the SmartPro SMART3000CRMXLN 3000VA rack-mountable UPS with pre-installed WEBCARDLX network management card, USB cable, DB9 cable, EPO cable, rack-mounting hardware, and owner's manual. All necessary components for immediate deployment in rack environments are included.
What power capacity is listed for this UPS?
The listed power specification is 3 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
