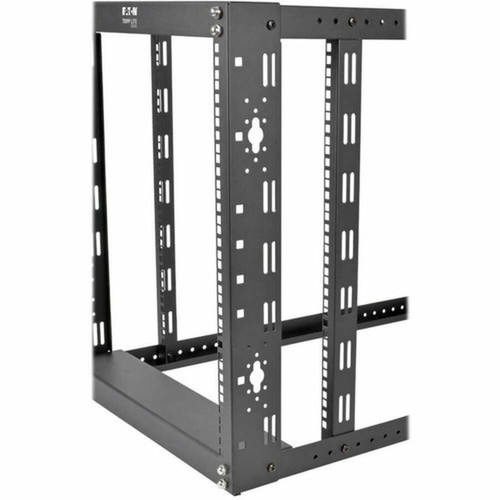

Tripp Lite series SmartRack 12U 4-Post Open Frame Rack - For Patch Panel, A/V Equipment, Server - 12U Rack Height x 19" (482.60 mm) x (SR12UBEXPNDKD)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 4 x Vertical mounting rails
- 4 x Side brackets
- 2 x Base brackets with built-in casters
- 2 x Top brackets
- 2 x Adjustable side support/mounting rails
- 12 x M6 x 12 mm screws
- 16 x M8 screws
- 20 x M6 cage nuts
- 20 x PVC cup washers
- 20 x M6 screws

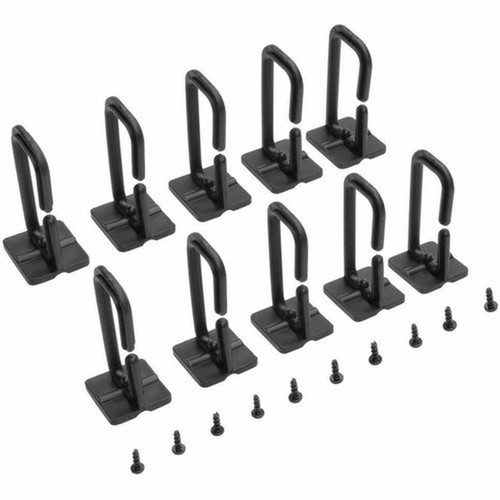

- 10 x Cable management hooks
- 10 x Hook mounting screws
- Owner's Manual
Application/Usage: Patch Panel,A/V Equipment,Server
Color Family: Black
Product Color: Black Powder Coat
Product Material: Steel
Maximum Weight Capacity: 1000 lb (453592.37 g)
Static/Stationary Weight Capacity: 1000 lb (453592.37 g)
Height: 25.60" (650.24 mm)
Width: 20.37" (517.40 mm)
Depth: 35.94" (912.88 mm)
Rack Height: 12U
Rack Width: 19" (482.60 mm)
Rack Depth: 36" (914.40 mm)
Weight (Approximate): 45 lb (20411.66 g)
Package Contents:
Assembly Required: Yes
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
- Maximum load capacity of 1,000 lb.
- Secures 12U of 19 in. rack equipment up to 36 in. deep
- Heavy-duty steel construction designed to last
- Assembles using included hardware
- Accommodates toolless button mounting for PDUs
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SR12UBEXPNDKD |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Line | SmartRack |
| Product Model | SR12UBEXPNDKD |
| Product Name | SmartRack 12U 4-Post Open Frame Rack |
| Product Type | Rack Frame |
| Technical Information | |
| Application/Usage | Patch Panel,A/V Equipment,Server |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black Powder Coat |
| Product Material | Steel |
| Maximum Weight Capacity | 1000 lb (453592.37 g) |
| Static/Stationary Weight Capacity | 1000 lb (453592.37 g) |
| Height | 25.60" (650.24 mm) |
| Width | 20.37" (517.40 mm) |
| Depth | 35.94" (912.88 mm) |
| Rack Height | 12U |
| Rack Width | 19" (482.60 mm) |
| Rack Depth | 36" (914.40 mm) |
| Weight (Approximate) | 45 lb (20411.66 g) |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
