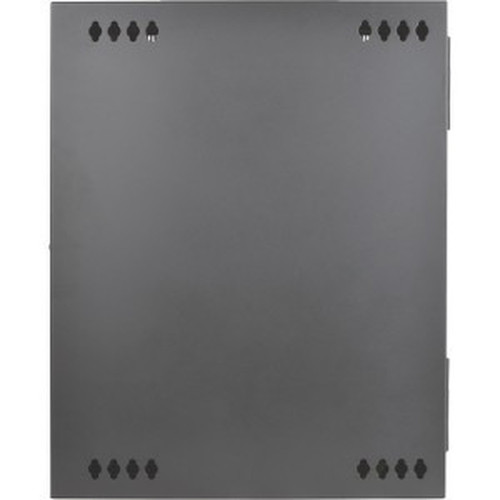

Tripp Lite series SRW15USG SmartRack 15U Low-Profile Switch-Depth WallMount Rack Enclosure Cabinet - For LAN Switch, Patch Panel - 15U (SRW15USG)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features

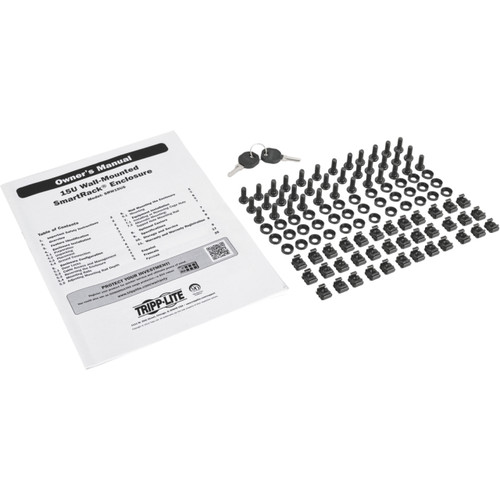

- SRW15USG SmartRack 15U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet
- 20 x M6 Screws
- 20 x M6 Cage Nuts
- 20 x M6 Washers
- 20 x 12-24 Screws
- 2 x Keys
- Owner's Manual
Application/Usage: LAN Switch,Patch Panel
Form Factor: Wall Mountable
Color Family: Black
Product Color: Black Powder Coat
Product Material: Acrylic,Steel
Maximum Weight Capacity: 200 lb (90718.47 g)
Static/Stationary Weight Capacity: 200 lb (90718.47 g)
Height: 30.33" (770.38 mm)
Width: 23.62" (599.95 mm)
Depth: 21.60" (548.64 mm)
Rack Height: 15U
Rack Width: 19" (482.60 mm)
Rack Depth: 10.42" (264.67 mm)
Weight (Approximate): 88.20 lb (40006.85 g)
Package Contents:
Assembly Required: No
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
- Maximum load capacity of 200 lb.
- Swings away from wall bracket on a hinge for easy access
- Front door includes shatter-resistant clear acrylic window
- Locking steel cabinet vented at sides, top and bottom
- Secures 15U of 19 in. rack equipment up to 20.5 in. deep
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRW15USG |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Line | SmartRack |
| Product Model | SRW15USG |
| Product Name | SRW15USG SmartRack 15U Low-Profile Switch-Depth WallMount Rack Enclosure Cabinet |
| Product Type | Rack Cabinet |
| Technical Information | |
| Application/Usage | LAN Switch,Patch Panel |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black Powder Coat |
| Product Material | Acrylic,Steel |
| Maximum Weight Capacity | 200 lb (90718.47 g) |
| Static/Stationary Weight Capacity | 200 lb (90718.47 g) |
| Height | 30.33" (770.38 mm) |
| Width | 23.62" (599.95 mm) |
| Depth | 21.60" (548.64 mm) |
| Rack Height | 15U |
| Rack Width | 19" (482.60 mm) |
| Rack Depth | 10.42" (264.67 mm) |
| Weight (Approximate) | 88.20 lb (40006.85 g) |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-options]
| Product | Tripp Lite SR1UPANEL50 1U Blanking Panel Kit - 19" |
| SKU | SR1UPANEL50 |
| Sale Price | $283.95 |
| Product | Tripp Lite SR1UPANEL10 1U Blanking Panel Kit - 19" |
| SKU | SR1UPANEL10 |
| Sale Price | $81.95 |
| Product | Tripp Lite SRCABLERING1U - Cable Panel - Black - 1U Rack Height x 19" Panel Width - Steel |
| SKU | SRCABLERING1U |
| Sale Price | $53.95 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
User-Manual
[/custom-user-manual]
