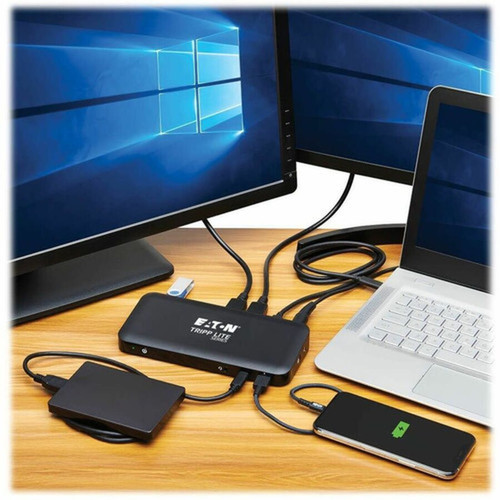

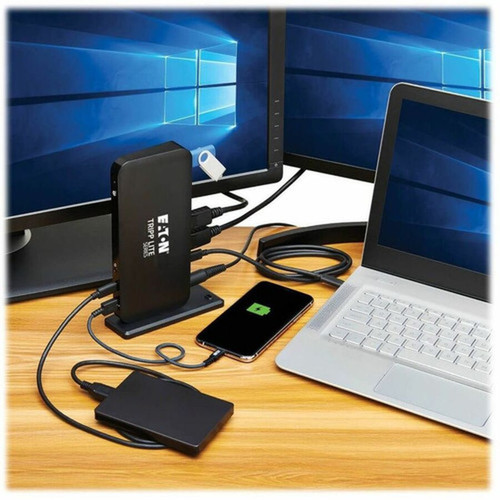

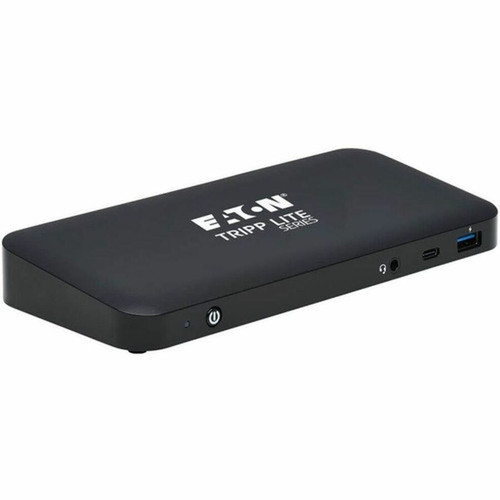

Tripp Lite series U442-DOCK8-B Docking Station - for Flash Drive, Mouse, Keyboard, Smartphone, Notebook, Monitor, Headset - 85 W - USB (U442-DOCK8-B)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- U442-DOCK8-B Docking Station
- USB-C to USB-C Cable, 3.3 ft.
- External Power Supply (Input: 100-240V, 50/60 Hz, 2A; Output: 20V 5A)
- C5 to NEMA 5-15P Adapter, 6 ft.
- Owner's Manual
Connectivity Technology: Wired
Number of Displays Supported: 3
Supported Resolutions: 3840 x 2160,1280 x 720,1920 x 1080
Screen Mode Supported: 4K
Device Supported: Flash Drive,Mouse,Keyboard,Smartphone,Notebook,Monitor,Headset
Ethernet Technology: Gigabit Ethernet
Host Interface: USB Type C
Total Number of USB Ports: 5
Number of USB 3.2 Gen 2 Type-A Ports: 3
Number of USB Type-C Ports: 1
USB Type-C: Yes
USB Type-C Detail: 2 x USB C (FEMALE)
Number of USB Type-A Ports: 3
USB Type-A: Yes
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
Number of DisplayPorts: 2
DisplayPort: Yes
DisplayPort Version: 1.4
Headphone/Microphone Combo Port: Yes
Number of HDMI Ports: 1
HDMI: Yes
Thunderbolt: Yes
Operating System Supported: Windows
Maximum Power Supply Wattage: 85 W
Product Color: Black
Form Factor: Portable
Height: 3.40" (86.36 mm)
Width: 7.50" (190.50 mm)
Depth: 1.10" (27.94 mm)
Weight (Approximate): 8.80 oz (249.48 g)
Package Contents:
Kensington Security Slot: Yes
Compatibility: Apple MacBook Pro
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin: China
Limited Warranty: 3 Year
- HDMI and DisplayPort outputs each support single-monitor 4K applications @ 60 Hz
- Extends 1080p desktop image across 3 screens @ 30 Hz and 2 screens @ 60 Hz
- Connects you to a wired 10/100/1000 Ethernet network when no Wi-Fi is available
- USB-C and USB-A hub ports allow connection of flash drives and other peripherals
- Power Delivery port supports 20V 4.25A (85W) power output for charging source device
- 3-year limited warranty
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | U442-DOCK8-B |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | U442-DOCK8-B |
| Product Name | U442-DOCK8-B Docking Station |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Displays Supported | 3 |
| Supported Resolutions | 3840 x 2160,1280 x 720,1920 x 1080 |
| Screen Mode Supported | 4K |
| Device Supported | Flash Drive,Mouse,Keyboard,Smartphone,Notebook,Monitor,Headset |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| Number of USB Type-C Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 x USB C (FEMALE) |
| Number of USB Type-A Ports | 3 |
| USB Type-A | Yes |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of DisplayPorts | 2 |
| DisplayPort | Yes |
| DisplayPort Version | 1.4 |
| Headphone/Microphone Combo Port | Yes |
| Number of HDMI Ports | 1 |
| HDMI | Yes |
| Thunderbolt | Yes |
| Software | |
| Operating System Supported | Windows |
| Power Description | |
| Maximum Power Supply Wattage | 85 W |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Portable |
| Height | 3.40" (86.36 mm) |
| Width | 7.50" (190.50 mm) |
| Depth | 1.10" (27.94 mm) |
| Weight (Approximate) | 8.80 oz (249.48 g) |
| Miscellaneous | |
| Package Contents |
|
| Kensington Security Slot | Yes |
| Compatibility | Apple MacBook Pro |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
