Tripp Lite by Eaton SU8000RT3U1TF Tripp Lite SmartOnline 8kVA Double Conversion UPS - Rack/Tower Mountable - 208V Input - 5. 5 Min Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double conversion online UPS continuously converts incoming AC power to DC and back to clean AC, providing complete isolation from utility power anomalies. It accepts a 208V AC hardwired input and delivers regulated 120V or 208V output at 60Hz with ±2% voltage regulation. The unit features a high-efficiency economy mode that reduces energy consumption during normal operation while maintaining protection.
Management interfaces include USB, RS232, and an EPO port, with support for optional SNMP/WEB cards for remote monitoring. The front panel combines LED indicators with a detailed LCD screen for real-time status, configuration, and event logging. Battery runtime can be extended by adding optional external battery packs, allowing customization based on runtime requirements.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages

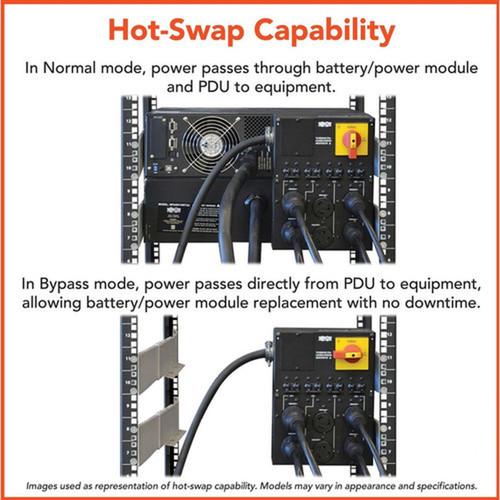

Zero-Downtime Maintenance
The integrated maintenance bypass switch enables safe removal or replacement of the UPS while connected loads continue to operate on utility power, eliminating service interruptions.
- Live replacement capability
- No power interruption to equipment
- Simplifies servicing and upgrades
Flexible Deployment
Designed for both rack and tower installation, the UPS adapts to various environments. The 8U rack height and included mounting rails streamline integration into standard server racks.
- Rack/tower convertible
- Includes 4-post rackmount rails
- Hot-swappable modules
Comprehensive Power Distribution
Equipped with multiple outlet types to accommodate diverse equipment, including NEMA L6-30R, L6-20R, and 5-15/20R receptacles for both high-power and standard devices.
- 4 x NEMA L6-20R outlets
- 2 x NEMA L6-30R outlets
- 12 x NEMA 5-15/20R outlets
Deployment / Use Cases
The SU8000RT3U1TF is ideal for protecting critical infrastructure in medium to large IT deployments. Its 8kVA capacity and robust design make it well-suited for server rooms, data centers, and network operations centers where uptime is paramount. The double conversion technology ensures sensitive electronics receive clean, consistent power regardless of input quality.
In industrial settings, this UPS safeguards control systems, PLCs, and monitoring equipment from power fluctuations and outages. The rack-mountable form factor allows integration into control cabinets alongside other equipment. For telecommunications installations, it provides backup power for switches, routers, and access points, supporting continuous network availability during utility failures.
Data Center Server Protection
Provides backup power for rack-mounted servers, storage arrays, and networking gear, with SNMP management for integration into existing monitoring systems.
Industrial Control Systems
Protects automation equipment from power disturbances in manufacturing and processing environments, with hardwired input for secure electrical connections.
Physical Profile
The UPS system consists of multiple components designed for flexible installation. The main 3U power module houses the double conversion electronics, while a separate 3U external battery pack provides the backup energy source. A 2U step-down transformer is included for voltage adaptation where required. The complete system occupies 8U of rack space when mounted, with dimensions of 5.14" height, 17.50" width, and 25" depth for the power module. The 55 lb weight reflects the robust construction and substantial battery capacity.
- Width
- 17.50" (444.50 mm)
- Depth
- 25" (635 mm)
- Height
- 8U
- Weight
- 55 lb (24947.58 g)
What's in the Box
This package includes all components necessary for immediate deployment. The comprehensive contents ensure you have everything needed for both rack and tower installation scenarios.
Highlights
- 8kVA/7200W double conversion online UPS with 0.9 output power factor
- Maintenance bypass switch enables zero-downtime replacement and servicing
- 208V input with 120V/208V output options and ±2% voltage regulation
- Rack/tower convertible design with 8U rack height and included mounting rails
- Hot-swappable power and battery modules for easy maintenance
- SNMP manageable with USB, RS232, and EPO ports for comprehensive monitoring
- Front panel LCD with detailed status display and configuration controls
- Expandable runtime with optional external battery packs
- Hardwired input with NEMA L6-30R, L6-20R, and 5-15/20R outlet combinations
- Includes PowerAlert UPS Monitoring Software and 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SU8000RT3U1TF |
| Brand Name | Tripp Lite series |
| Product Line | SmartOnline |
| Product Model | SU8000RT3U1TF |
| Product Name | SmartOnline SU8000RT3U1TF 8kVA Tower/Rack Mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | NEMA L6-20R,NEMA L6-30R,NEMA 5-15/20R |
| Receptacle Detail | 4 x NEMA L6-20R,2 x NEMA L6-30R,12 x NEMA 5-15/20R |
| Power Description | |
| Load Capacity (VA) | 8 kVA |
| Input Voltage | 208 V AC |
| Output Voltage | 120 V AC,208 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Management | |
| Network Management | SNMP Manageable |
| Interfaces/Ports | |
| Serial Port | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 5.50 Minute |
| Backup/Run Time (Half Load) | 13.50 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Rack Height | 8U |
| Height | 5.14" (130.56 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 25" (635 mm) |
| Weight (Approximate) | 55 lb (24947.58 g) |
| Miscellaneous | |
| Package Contents | SmartOnline SU8000RT3U1TF 8kVA Tower/Rack Mountable UPS 3U power module with detachable hot-swap PDU input/output panel and bypass switch 3U external battery pack, 2U step-down transformer Three sets of 4 post rackmount rails (one for each of the 2U and 3U components) One set of |
| Software Included | PowerAlert UPS Monitoring Software |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this UPS?
This Tripp Lite SmartOnline UPS has a load capacity of 8 kVA (8000 VA), which corresponds to 7200 watts at a 0.9 output power factor. This substantial capacity supports multiple servers, networking equipment, or industrial devices, making it suitable for medium to large deployments where reliable backup power is critical.
How long will the UPS run at full load during a power outage?
At full load, the UPS provides approximately 5.5 minutes of backup runtime from its internal batteries. This runtime allows for either orderly shutdown of connected equipment or transition to generator power. At half load, runtime extends to approximately 13.5 minutes, providing additional flexibility depending on your power requirements.
What types of outlets does this UPS have?
The UPS features a comprehensive array of outlets to accommodate various equipment types. It includes 4 NEMA L6-20R outlets, 2 NEMA L6-30R outlets, and 12 NEMA 5-15/20R outlets. This combination supports both high-power devices requiring 20A or 30A connections and standard equipment with 15A plugs, providing versatile power distribution in a single unit.
Can this UPS be mounted in a server rack?
Yes, this UPS is designed for both rack and tower deployment. The complete system occupies 8U of rack space and includes three sets of 4-post rackmount rails for securing the power module, battery pack, and transformer. The rack/tower convertible design provides installation flexibility for data centers, server rooms, or any environment where space optimization is important.
What management and monitoring options are available?
The UPS includes multiple management interfaces: USB and RS232 ports for local monitoring, plus support for optional SNMP/WEB cards for network-based management. The front panel features both LED indicators and a detailed LCD screen for real-time status display, configuration, and event logging. Included PowerAlert software enables comprehensive monitoring and automated shutdown procedures.
What is included in the maintenance bypass feature?
The integrated maintenance bypass switch allows you to safely remove or service the UPS while connected equipment continues to operate on utility power. This feature eliminates downtime during maintenance, upgrades, or replacement, ensuring continuous power to critical loads. The hot-swappable design of power and battery modules further enhances serviceability without interrupting protected equipment.
What power capacity is listed for this UPS?
The listed power specification is 8 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC, which helps position the unit for the right load level and installation role.
