APC by Schneider Electric SMART1200LCD SmartPro 1200VA/700W Line-Interactive UPS - 8 Outlets - 2U Rack/Tower - 4 Min Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This line-interactive UPS operates with a 4-millisecond transfer time, ensuring seamless switchover to battery power during outages. It accepts 110 V AC input and delivers regulated 120 V AC output via pulse-width modulated sine wave technology, maintaining stable power for sensitive electronics.
The battery system offers a 6-year typical life and recharges within 8 hours after a discharge event. Thermal management is handled with a dissipation rating of 243.70 BTU/h, supporting operation in environments up to 122°F (50°C). Data line protection is included via an RJ-45 port, and connectivity options extend to serial and USB ports for integration with management software.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SmartPro SMART1200LCD delivers essential power protection with features tailored for IT deployment. Its dual rack/tower flexibility allows installation in server racks or as a standalone unit, while the comprehensive outlet layout accommodates multiple devices.
Intuitive Status Monitoring

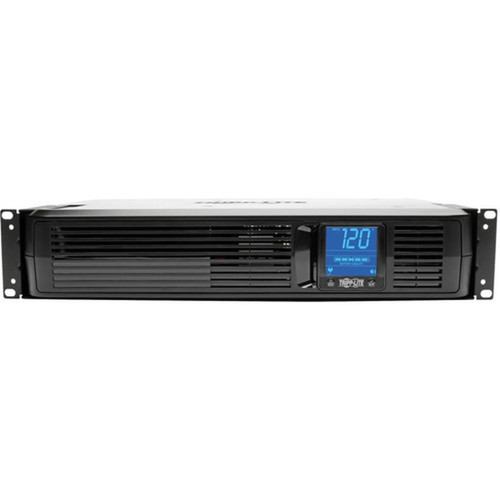

The LCD screen displays continuous metrics including line voltage, battery charge level, and load percentage, enabling quick assessment of UPS health and power conditions without external software.
- Blue backlight for visibility
- Real-time voltage data
- Battery power indicators
Robust Electrical Safeguards
Automatic voltage regulation corrects minor fluctuations without draining the battery, and the integrated circuit breaker prevents overloads. The 870-joule surge rating protects against transient spikes.
- AVR for brownout protection
- Circuit breaker included
- High surge energy absorption
Deployment / Use Cases
This UPS is ideal for securing network equipment, servers, and workstations in small to medium-sized business settings. Its 2U rack height fits standard server cabinets, making it suitable for data closets or IT rooms where space is at a premium.
Common applications include supporting VoIP systems, network switches, and storage devices during brief power interruptions. The half-load runtime of over 14 minutes provides extended backup for reduced power draws, allowing for graceful shutdowns or continued operation during short outages.
Server Rack Integration
Mount the UPS in a 2U rack space to protect rack-mounted servers, switches, and other critical infrastructure, leveraging the included mounting hardware for secure installation.
Office Workstation Protection
Deploy as a tower unit under desks or in work areas to safeguard computers, monitors, and peripherals, with eight outlets accommodating multiple devices per station.
Physical Profile
The UPS features a compact black chassis measuring 17.25" in height, 3.50" in width, and 10.50" in depth. Its 2U rack-mountable design integrates smoothly into server racks, while the tower form factor offers standalone stability. The unit weighs approximately 25.13 pounds, balancing durability with manageable portability for installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 17.25" (438.15 mm), 3.50" (88.90 mm), 10.50" (266.70 mm), 25.13 lb (11400 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.50" (88.90 mm)
- Depth
- 10.50" (266.70 mm)
- Height
- 17.25" (438.15 mm)
- Weight
- 25.13 lb (11400 g)
- Length
- 6 ft (1.83 m)
What's in the Box
The package includes all necessary components for immediate deployment and management.
Highlights
- 1200VA/700W line-interactive UPS with automatic voltage regulation (AVR)
- Eight protected NEMA 5-15R outlets for connecting multiple devices
- 2U rack-mountable or tower form factor for flexible installation
- 4-minute full-load runtime and 14.3-minute half-load runtime
- Front-panel LCD screen with real-time status monitoring
- Pulse-width modulated sine wave output for clean power
- Includes USB and serial ports for management connectivity
- 6-year typical battery life with 8-hour recharge time
- Built-in circuit breaker and 870-joule surge protection
- 3-year limited warranty from the manufacturer
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART1200LCD |
| Brand Name | Tripp Lite series |
| Product Line | SmartPro |
| Product Model | SMART1200LCD |
| Product Name | SmartPro 1200 VA Rack-mountable Tower Digital UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Dataline Protection | RJ-45 |
| Cord Length | 6 ft (1.83 m) |
| Transfer Time | 4 ms |
| Power Description | |
| Load Capacity (VA) | 1.20 kVA |
| Load Capacity (Watt) | 700 W |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 870 J |
| Circuit Breaker | Yes |
| Controls/Indicators | |
| Status Indicators | Front panel LCD screen with blue backlight offers: Continuous input line voltage data Line power Battery power Battery charge level Voltage regulation operation |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 14.30 Minute |
| Battery Life | 6 Year |
| Typical Battery Recharge Time | 8 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| Thermal Dissipation | 243.70 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 17.25" (438.15 mm) |
| Width | 3.50" (88.90 mm) |
| Depth | 10.50" (266.70 mm) |
| Rack Height | 2U |
| Form Factor | Tower |
| Weight (Approximate) | 25.13 lb (11400 g) |
| Miscellaneous | |
| Package Contents | SmartPro 1200 VA Rack-mountable Tower Digital UPS SMART1200LCD Digital UPS USB, DB9 and phone cabling Mounting hardware Manual with warranty information |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The APC by Schneider Electric SMART1200LCD provides a load capacity of 1.20 kVA (1200VA) and 700 watts. This capacity supports typical IT equipment such as servers, networking gear, and workstations, delivering regulated power during outages or fluctuations.
How long will the UPS run on battery power?
At full load (700W), the runtime is 4 minutes. At half load (350W), runtime extends to 14.30 minutes. These figures allow for graceful shutdowns or continued operation during short power interruptions, with actual runtime varying based on connected load.
How many outlets does this UPS have?
It features eight NEMA 5-15R outlets, all protected by battery backup and surge suppression. This outlet count accommodates multiple devices like computers, monitors, and network hardware, making it suitable for office or rack deployments.
Can this UPS be mounted in a server rack?
Yes, it is designed for both rack and tower use. The UPS has a 2U rack height and includes mounting hardware for secure installation in standard server cabinets, while also functioning as a standalone tower unit for under-desk or workstation setups.
What management options are available?
Management is facilitated through a front-panel LCD screen that displays real-time status, plus USB and serial ports for connecting to monitoring software. These interfaces allow for remote management, alerts, and configuration adjustments.
What type of power output does this UPS provide?
It delivers pulse-width modulated sine wave output, which is compatible with active PFC power supplies found in modern servers and computers. This ensures clean, stable power that reduces the risk of equipment damage or instability.
What power capacity is listed for this UPS?
The listed power specification is 1.20 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 110 V AC, which helps position the unit for the right load level and installation role.
