APC by Schneider Electric SMART750RM1U SmartPro 750VA/600W Line-Interactive UPS - 1U Rackmount - 6 Outlets - Sine Wave
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This line-interactive UPS operates with 98% line-mode efficiency and includes two switched load banks for organized power management. The unit supports hot-swappable lead-acid batteries with a typical recharge time of four hours and a maximum operating temperature of 104°F (40°C).
Management capabilities include USB and RS232 connectivity for local monitoring, plus an expansion slot for optional SNMPWEBCARD network management. The system includes PowerAlert unattended shutdown software for graceful server shutdowns during extended outages.
Relevant factors for this section include Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA). When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SMART750RM1U combines rack-optimized design with robust power protection features. Mounting brackets support both two-post and four-post rack installations, providing flexibility for different data center environments.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Voltage Correction, Management Flexibility.
Voltage Correction
Automatically corrects brownouts and overvoltages from 83V to 147V without switching to battery power, extending runtime and battery life.
- Maintains stable 120V output
- Reduces unnecessary battery cycles
Management Flexibility
Multiple monitoring options including front panel LEDs, USB/RS232 local management, and optional SNMP network management for remote monitoring.
- Five status LEDs for quick diagnostics
- EPO (Emergency Power Off) support
Deployment / Use Cases
The 1U rackmount form factor makes this UPS ideal for network closets, server racks, and telecommunications installations where space is at a premium. The 750VA capacity supports typical rack-mounted equipment including switches, routers, and small servers.
Common deployment scenarios include protecting network infrastructure in branch offices, supporting VoIP systems in small to medium businesses, and providing backup power for security system components. The six outlets allow for organized power distribution to multiple devices within a single rack unit.
Relevant factors for this section include Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA). When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Network Infrastructure Protection
Provides clean power to switches, routers, and firewalls during utility fluctuations and brief outages.
Server Room Applications
Supports small servers and storage devices with sine wave output compatible with active PFC power supplies.
Physical Profile
The compact 1U design occupies minimal rack space while delivering substantial power protection. With dimensions of 1.75" H × 17.50" W × 16.75" D, the unit fits standard 19-inch racks and includes mounting hardware for flexible installation. The 30-pound weight provides stability in rack configurations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.75" (44.45 mm), 17.50" (444.50 mm), 16.75" (425.45 mm), 30 lb (13607.77 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.50" (444.50 mm)
- Depth
- 16.75" (425.45 mm)
- Height
- 1.75" (44.45 mm)
- Weight
- 30 lb (13607.77 g)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes all necessary components for immediate deployment and management.
Highlights
- 750VA/600W line-interactive UPS with sine wave output
- 1U rackmount design with mounting brackets for 2-post and 4-post racks
- Six NEMA 5-15R outlets for multiple device connections
- 4.9 minutes runtime at full load, 13.2 minutes at half load
- Hot-swappable lead-acid batteries with 6-year life expectancy
- Voltage correction from 83V to 147V without battery usage
- USB, RS232, and optional SNMP network management
- 98% line-mode efficiency for reduced energy costs

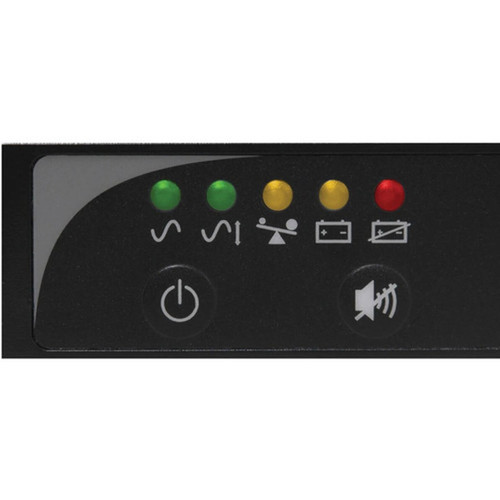

- Front panel status LEDs for power, battery, and load monitoring
- Three-year limited warranty with TAA compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART750RM1U |
| Brand Name | Tripp Lite series |
| Product Line | SmartPro |
| Product Name | SmartPro 750RM1U UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Cord Length | 10 ft (3.05 m) |
| Power Description | |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 600 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Management | |
| Network Management | SNMP Manageable |
| Alarm | On Battery,Overload,Low Battery |
| Controls/Indicators | |
| Status Indicators | 5 front panel LEDs - Green POWER LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED. |
| Interfaces/Ports | |
| USB | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4.90 Minute |
| Backup/Run Time (Half Load) | 13.20 Minute |
| Battery Life | 6 Year |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 16.75" (425.45 mm) |
| Rack Height | 1U |
| Weight (Approximate) | 30 lb (13607.77 g) |
| Miscellaneous | |
| Package Contents | SMART750RM1U UPS System Mounting hardware Cabling for USB & DB9 monitoring and EPO switching PowerAlert unattended shutdown and UPS/Power monitoring software Warranty information and instruction manual |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The SMART750RM1U provides 750VA/600W of line-interactive power protection. This capacity supports typical rack-mounted equipment including network switches, routers, and small servers. The 0.8 power factor ensures efficient power delivery to connected devices.
How long will this UPS run on battery power?
At full 600W load, the UPS provides approximately 4.9 minutes of runtime. At half load (300W), runtime extends to approximately 13.2 minutes. These runtimes allow for graceful shutdowns of connected equipment during power outages.
What type of outlets does this UPS have?
The unit features six NEMA 5-15R outlets, providing connections for multiple devices. The input uses a standard NEMA 5-15P plug with a 10-foot cord for flexible placement in rack environments.
Is this UPS rack-mountable?
Yes, this is a 1U rackmount UPS designed for standard 19-inch racks. It includes mounting brackets that support both two-post and four-post rack installations, making it suitable for various data center and network closet configurations.
What management options are available?
The UPS includes USB and RS232 connectivity for local management with included PowerAlert software. It also has an expansion slot for an optional SNMPWEBCARD for network management. Front panel LEDs provide visual status indicators for power, battery charge, output load, and warnings.
What is included in the warranty?
The SMART750RM1U comes with a three-year limited warranty. The unit is TAA compliant and manufactured in Taiwan. The hot-swappable batteries have a six-year life expectancy under normal operating conditions.
