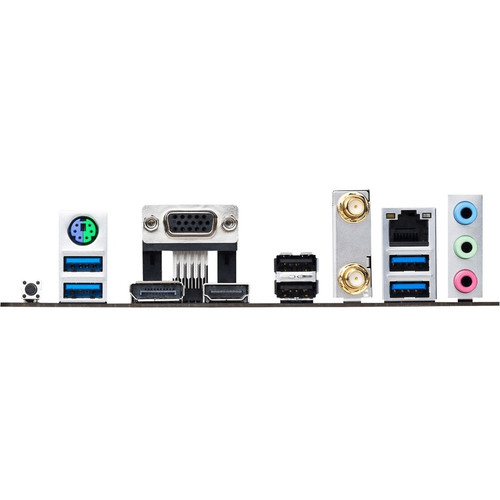

TUF GAMING A520M-PLUS WIFI Gaming Desktop Motherboard - AMD A520 Chipset - Socket AM4 - Micro ATX - Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 3 (TUF GAMING A520M-PLUS WIF)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- GAMING A520M-PLUS WIFI Gaming Desktop Motherboard
- Cables
- 2 x SATA 6Gb/s Cables
- 1 x I/O Shield
- 1 x M.2 SSD Screw Package
- 1 x ASUS Wi-Fi Moving Antenna
- 1 x TUF Gaming Sticker
- 1 x Support DVD
- 1 x TUF Certification Card
- 1 x User Manual
Chipset Manufacturer: AMD
Chipset Model: A520
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported: Ryzen 3,Ryzen 5,Ryzen 7,Ryzen 9,Ryzen 3 PRO,Ryzen 5 Pro,Ryzen 7 PRO,Ryzen 9 PRO
Number of Memory Slots: 4
Memory Form Factor: UDIMM,DIMM
Maximum Memory Supported: 128 GB
Memory Speed Supported: 4800 MHz,4600 MHz,4466 MHz,4400 MHz,4266 MHz,4133 MHz,4000 MHz,3866 MHz,3733 MHz,3600 MHz,3466 MHz,3333 MHz,3200 MHz,3000 MHz,2800 MHz,2666 MHz,2400 MHz,2133 MHz
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10,1,0
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ac
Total Number of Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Ports: 4
VGA: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 5
Number of Onboard USB 2.0 Ports: 3
Number of Onboard USB 3.2 Ports: 2
Onboard S/PDIF Header: Yes
Form Factor: Micro ATX
Width: 9.60" (243.84 mm)
Depth: 9.60" (243.84 mm)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- Compatible Ryzen 3 processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- Supported 10 RAID levels provide data reliability and fault tolerance
- Enjoy the freedom of wireless connectivity and get the devices connected faster with IEEE 802.11ac wireless standard support
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Micro ATX gaming desktop motherboard
- With 2 USB 2.0 ports, transfer several documents without error
[custom-specifications]
| Specifications | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | TUF GAMING A520M-PLUS WIF |
| Manufacturer Website Address | http://www.asus.com |
| Brand Name | TUF |
| Product Model | GAMING A520M-PLUS WIFI |
| Product Name | GAMING A520M-PLUS WIFI Gaming Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | A520 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM4 |
| Processor Supported | Ryzen 3,Ryzen 5,Ryzen 7,Ryzen 9,Ryzen 3 PRO,Ryzen 5 Pro,Ryzen 7 PRO,Ryzen 9 PRO |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM,DIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 4800 MHz,4600 MHz,4466 MHz,4400 MHz,4266 MHz,4133 MHz,4000 MHz,3866 MHz,3733 MHz,3600 MHz,3466 MHz,3333 MHz,3200 MHz,3000 MHz,2800 MHz,2666 MHz,2400 MHz,2133 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 10,1,0 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ac |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| VGA | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 2.0 Ports | 3 |
| Number of Onboard USB 3.2 Ports | 2 |
| Onboard S/PDIF Header | Yes |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.60" (243.84 mm) |
| Depth | 9.60" (243.84 mm) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
