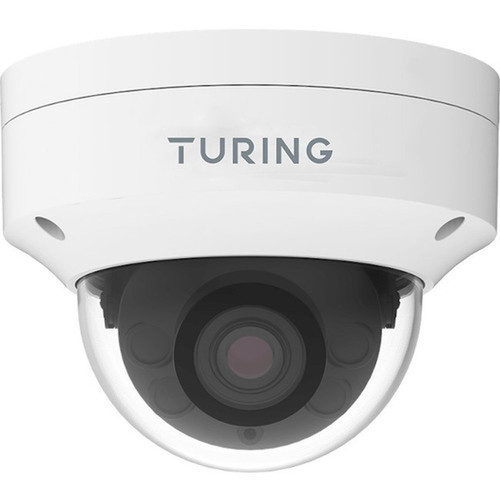

Turing Video TI-NMD04AV3 Advantage 4MP IR Zoom Dome IP Camera - 2592 x 1520 - 98. 43 ft Night Vision - 5x Optical Zoom - IK10/IP66
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera utilizes a CMOS image sensor that supports color video capture with a horizontal field of view of 104.2°. The lens features a maximum aperture of f/1.6 for improved light gathering, while exposure control ranges from 1/20000 second to 1/5 second shutter speeds. The camera includes advanced imaging features such as Wide Dynamic Range, 3D Digital Noise Reduction, and automatic white balance to enhance video quality in varying lighting scenarios.
Connectivity is handled through a wired Ethernet (RJ-45) interface, supporting remote management for configuration and monitoring. Local storage is available via memory card, and the camera operates on 12 V DC power. Its environmental tolerance spans from -40°F (-40°C) to 131°F (55°C) with up to 90% humidity, ensuring reliable performance in extreme conditions.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Turing Video Advantage camera combines high-resolution imaging with durable construction and intelligent features to meet demanding surveillance needs. Its 4MP sensor and 2592 x 1520 resolution provide detailed footage essential for identification and evidence collection.
Enhanced Night Vision
Infrared illumination delivers clear monochrome video up to 98.43 ft (30 m), ensuring 24/7 monitoring capability without additional lighting.
- Infrared night vision type
- 98.43 ft (30 m) range
- Suitable for low-light environments
Robust Protection Ratings
IK10 impact resistance and IP66 ingress protection defend against vandalism, dust, and water jets, making the camera ideal for high-risk or outdoor locations.
- IK10 impact rating
- IP66 weatherproof rating
- Durable dome housing
Advanced Detection Features
Built-in analytics include face, human, and vehicle detection, along with cross-line detection, reducing false alarms and focusing on relevant security events.
- Face, human, vehicle detection
- Cross-line detection
- Intelligent alerting
Deployment / Use Cases
This dome IP camera is designed for versatile installation in commercial, industrial, and institutional settings where reliable surveillance is critical. Its multiple mount options—wall, pendant, corner, and pole—allow flexible placement to cover entrances, parking lots, warehouses, or retail floors.
The camera's 5x optical zoom and varifocal lens enable operators to adjust the field of view remotely, optimizing coverage for specific areas like cash registers, loading docks, or perimeter fences. Features like backlight compensation and highlight compensation ensure usable video in challenging lighting, such as facing windows or bright signage.
Retail & Commercial Security
Monitor sales floors, entrances, and stock rooms with high-resolution video and detection analytics to prevent theft and ensure safety.
- 2592 x 1520 resolution for detail
- Face and human detection
- Remote management
Industrial & Outdoor Monitoring
Withstand harsh environments in factories, warehouses, or exterior sites using IK10/IP66 ratings and wide temperature tolerance.
- -40°F to 131°F operation
- Weatherproof construction
- Long-range night vision
Physical Profile
The camera features a compact dome design with a diameter of 5.51" (140 mm) and weight of 1.61 lb (730 g), facilitating discreet installation. Its form factor supports ceiling or wall mounting, and the included varifocal lens allows focal adjustment from 2.7 mm to 13.5 mm without changing hardware. The robust housing ensures durability in high-traffic or exposed locations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.61 lb (730 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.61 lb (730 g)
- Length
- 2.7 mm (0.11")
Highlights
- 4-megapixel CMOS sensor for high-resolution color video
- 2592 x 1520 maximum resolution at 30 fps for clear surveillance
- Infrared night vision up to 98.43 ft (30 m) for 24/7 monitoring
- 5x optical zoom with varifocal lens (2.7 mm to 13.5 mm) for flexible framing
- IK10 impact and IP66 weatherproof ratings for durable outdoor use
- Wired Ethernet connectivity with remote management capability
- Advanced detection features: face, human, vehicle, and cross-line
- Wide operating temperature range from -40°F to 131°F
- Supports local storage via memory card for backup recording
- Multiple mount options: wall, pendant, corner, and pole
Specifications
| Specifications | |
|---|---|
| Manufacturer | Turing Video |
| Manufacturer Part Number | TI-NMD04AV3 |
| Brand Name | Turing Video |
| Product Line | Advantage |
| Product Name | Advantage TI-NMD04AV3 4MP IR Zoom Dome IP Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H: 104.2° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Maximum Video Resolution | 2592 x 1520 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 2.7 mm (0.11") |
| Maximum Focal Length | 13.5 mm (0.53") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 5x |
| Exposure | |
| Shortest Shutter Speed | 1/20000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Mount Type | Wall Mount,Pendant Mount,Corner Mount,Pole Mount |
| Form Factor | Dome |
| Diameter | 5.51" (140 mm) |
| Weight (Approximate) | 1.61 lb (730 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | SD Card Local Storage,Wide Dynamic Range,3D Digital Noise Reduction,Highlight Compensation (HLC),Back Light Compensation (BLC),Face Detection,Human Detection,Vehicle Detection,Automatic White Balance,2D Digital Noise Reduction (2DNR),Cross Line Detection |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Country of Origin | China |
User Manual
FAQ
What is the maximum video resolution of this Turing Video camera?
The camera supports a maximum video resolution of 2592 x 1520, which is 4 megapixels. This high resolution provides detailed imagery suitable for identifying faces, license plates, or other critical details in surveillance footage, captured at up to 30 frames per second for smooth real-time monitoring.
How far does the night vision reach on this dome IP camera?
The infrared night vision has an effective range of up to 98.43 ft (30 m). This allows the camera to deliver clear monochrome video in complete darkness, ensuring continuous security coverage during nighttime hours without requiring additional external lighting.
What type of lens does this camera include, and what zoom does it offer?
The camera includes a varifocal lens with 5x optical zoom, adjustable from a minimum focal length of 2.7 mm to a maximum of 13.5 mm. This flexibility lets you remotely adjust the field of view to focus on specific areas, making it ideal for applications where camera placement might need fine-tuning after installation.
Is this camera suitable for outdoor installation?
Yes, the camera is built for outdoor use with an IP66 ingress protection rating, which makes it dust-tight and resistant to powerful water jets. Combined with an IK10 impact rating for vandal resistance and an operating temperature range from -40°F to 131°F, it can withstand harsh environmental conditions typical of exterior surveillance.
What connectivity and power options does this network camera support?
The camera uses wired Ethernet (RJ-45) for network connectivity, enabling remote management and integration into existing IP surveillance systems. It requires 12 V DC power input, which is standard for many security camera installations, and supports local storage through a memory card for additional recording flexibility.
What advanced features does this camera include for intelligent surveillance?
The camera incorporates several intelligent features such as face detection, human detection, vehicle detection, and cross-line detection. These analytics help reduce false alarms by focusing on relevant security events, while additional imaging enhancements like Wide Dynamic Range and 3D Digital Noise Compensation improve video quality in challenging lighting conditions.
