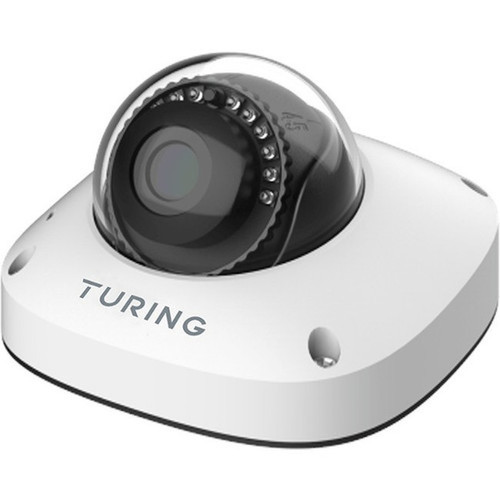

Turing Video TI-NCD04A28 4MP IR Mini Dome Network Camera - 2592 x 1520 Resolution - 49. 21 ft Night Vision - IP66 Water Resistant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera integrates a 4-megapixel CMOS image sensor that balances cost efficiency with high-definition output. The sensor supports a maximum resolution of 2592 x 1520, providing ample detail for identification and forensic review.
Exposure control spans from 1/20000 to 1/5 second, allowing the camera to adapt quickly to changing light conditions. Integrated infrared LEDs enable clear monochrome imaging up to 49.21 feet in total darkness, with automatic day/night switching.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The camera's imaging pipeline includes Highlight Compensation and Back Light Compensation to preserve detail in high-contrast scenes. Region of Interest and Cross Line Detection enable focused monitoring and automated alerting for specific areas or boundary crossings.
Enhanced Low-Light Performance
Infrared night vision extends monitoring capability to 49.21 feet, while features like 2D and 3D Digital Noise Reduction maintain image clarity in challenging lighting.
- Infrared night vision to 49.21 ft (15 m)
- 2D/3D Digital Noise Reduction
- Automatic White Balance
Robust Environmental Protection
IP66 rating ensures resistance to dust ingress and powerful water jets, while the operating temperature range of -40°F to 131°F supports deployment in harsh indoor or outdoor conditions.
- IP66 water and dust resistance
- Operating range: -40°F to 131°F
- 90% maximum humidity tolerance
Deployment / Use Cases
Local storage via SD card offers recording redundancy independent of network recorders, while remote management capabilities allow administrators to configure and monitor the camera from centralized software. The 12 V DC power input simplifies integration with standard surveillance power supplies.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Retail & Commercial Security
The mini dome form factor and multiple mounting options make this camera suitable for discreet installation in stores, offices, or lobbies where wide-area coverage and clear facial recognition are priorities.
Industrial & Perimeter Monitoring
With IP66 protection and extended temperature tolerance, the camera performs reliably in warehouses, parking lots, or building exteriors, providing consistent surveillance through weather extremes.
Physical Profile
The compact mini dome enclosure measures approximately 2.8 mm in focal length and weighs 13.40 ounces, facilitating installation on poles, walls, corners, or pendant mounts. The water-resistant design and durable construction ensure long-term operation in exposed locations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 13.40 oz (380 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 13.40 oz (380 g)
- Length
- 2.8 mm (0.11")
Highlights
- 4-megapixel resolution delivers 2592 x 1520 video detail
- Infrared night vision effective up to 49.21 feet (15 meters)
- Wide 97.4° field of view for broad area coverage
- IP66 rating for dust and water resistance
- Operates from -40°F to 131°F (-40°C to 55°C)
- Supports SD card local storage for backup recording
- Multiple mounting options: pole, wall, corner, pendant, junction box
- Includes features like Human Detection and Cross Line Detection
- Fixed 2.8 mm lens with f/2 maximum aperture
- Wired connectivity with remote management capability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Turing Video |
| Manufacturer Part Number | TI-NCD04A28 |
| Brand Name | Turing Video |
| Product Line | Advantage |
| Product Model | TI-NCD04A28 |
| Product Name | TI-NCD04A28 4MP IR Mini Dome Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 49.21 ft (15 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 97.4° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Maximum Video Resolution | 2592 x 1520 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/2 |
| Exposure | |
| Shortest Shutter Speed | 1/20000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Mount Type | Pole Mount,Junction Box Mount,Pendant Mount,Wall Mount,Corner Mount |
| Form Factor | Mini Dome |
| Durability | Water Resistant |
| Weight (Approximate) | 13.40 oz (380 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Wide Dynamic Range,Day/Night,Region of Interest,Highlight Compensation (HLC),Back Light Compensation (BLC),SD Card Local Storage,Human Detection,Automatic White Balance,Audio Compression,2D Digital Noise Reduction (2DNR),3D Digital Noise Reduction,Cross Line Detection |
| Ingress Protection Rating | IP66 |
User Manual
FAQ
What is the maximum video resolution of this network camera?
The Turing Video TI-NCD04A28 captures video at up to 2592 x 1520 resolution, which corresponds to 4 megapixels. This high-definition output provides clear detail for identifying subjects and reviewing footage, with a maximum frame rate of 30 frames per second for smooth motion representation.
How far does the night vision reach, and what type is it?
This camera features infrared night vision with an effective range of 49.21 feet (15 meters). The infrared illumination allows the camera to produce monochrome video in complete darkness, automatically switching between day and night modes based on ambient light conditions.
What mounting options are available for this mini dome camera?
The camera supports versatile mounting including pole mount, junction box mount, pendant mount, wall mount, and corner mount. This flexibility enables installation in various surveillance scenarios, from ceiling-mounted indoor monitoring to exterior wall or pole setups for perimeter security.
Is this camera suitable for outdoor use?
Yes, with an IP66 ingress protection rating, the camera is dust-tight and resistant to powerful water jets, making it suitable for outdoor deployment. It also operates across a wide temperature range from -40°F to 131°F (-40°C to 55°C) and tolerates up to 90% humidity.
What storage options does this network camera support?
The camera includes local storage capability via memory card (SD card), allowing for on-device recording independent of network video recorders. This provides recording redundancy and can be useful in locations where continuous network connectivity may be intermittent.
What advanced imaging features does this camera include?
Beyond basic recording, the camera incorporates Wide Dynamic Range to handle high-contrast scenes, Back Light Compensation and Highlight Compensation to preserve detail in challenging lighting, Region of Interest for focused monitoring, and Cross Line Detection for automated boundary alerts.
