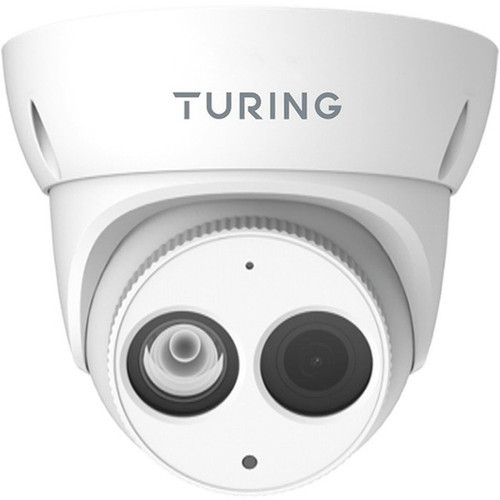

Turing Video TI-NED0428 Advantage 4MP IR Turret Network Camera - Color - 2592 x 1520 - 98. 43 ft Night Vision - IP66
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera features a CMOS image sensor that provides efficient power consumption and high-definition video quality. The fixed 2.8 mm lens offers a 97.4° field of view, capturing broad scenes with minimal distortion.
Advanced imaging capabilities include Wide Dynamic Range (WDR), Back Light Compensation (BLC), and 2D/3D Digital Noise Reduction (DNR) to maintain clarity in challenging lighting. The camera supports SD card local storage for onboard recording and includes features like Human Detection and Cross Line Detection for intelligent monitoring.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The TI-NED0428 combines high-resolution imaging with robust construction for dependable surveillance performance. Its infrared night vision extends to 98.43 feet, ensuring 24/7 monitoring capability in low-light conditions.
Enhanced Low-Light Performance
Infrared illumination and Day/Night functionality allow the camera to automatically switch between color and monochrome modes, maintaining visibility during nighttime or poorly lit scenarios.
- Infrared night vision up to 98.43 ft
- Automatic Day/Night switching
- WDR and BLC for balanced exposure
Durable and Versatile Design
With an IP66 rating and water-resistant construction, the camera is protected against dust and heavy rain. It supports multiple mounting types including wall, pole, junction box, pendant, and corner mounts for flexible installation.
- IP66 ingress protection
- Five mounting options
- Wide operating temperature range
Deployment / Use Cases
Ideal for commercial and industrial surveillance, the TI-NED0428 suits environments requiring continuous monitoring with clear detail. Its high resolution and night vision make it effective for perimeter security, parking lots, and entry points.
The camera's rugged design and wide operating temperature range allow deployment in outdoor settings such as warehouses, construction sites, and retail exteriors. Features like Human Detection and Cross Line Detection enable proactive alerting for enhanced security management.
Outdoor Perimeter Security
Deploy this camera to monitor building exteriors, fences, or gates. The IP66 rating ensures reliability in rain or snow, while infrared night vision covers large areas after dark.
Commercial Property Monitoring
Use in retail stores, offices, or industrial facilities to oversee entrances, loading docks, and common areas. The 4MP resolution provides crisp footage for identifying individuals or incidents.
Physical Profile
The turret-style camera measures 4.06 inches in height and 4.65 inches in diameter, with a compact footprint that minimizes visual intrusion. Weighing approximately 1.10 pounds, it is lightweight yet sturdy for secure mounting. The white finish offers a neutral appearance that complements most building exteriors.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.06" (103 mm), 1.10 lb (500 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 4.06" (103 mm)
- Weight
- 1.10 lb (500 g)
- Length
- 2.8 mm (0.11")
Highlights
- 4-megapixel resolution for detailed 2592x1520 video
- Infrared night vision effective up to 98.43 feet (30 meters)
- IP66-rated housing for dust and water resistance
- Wide 97.4° field of view with fixed 2.8 mm lens
- Supports SD card local storage for onboard recording
- Includes features like Human Detection and Cross Line Detection
- Operates in temperatures from -40°F to 131°F (-40°C to 55°C)
- Versatile mounting options: wall, pole, junction box, pendant, corner
Specifications
| Specifications | |
|---|---|
| Manufacturer | Turing Video |
| Manufacturer Part Number | TI-NED0428 |
| Brand Name | Turing Video |
| Product Line | Advantage |
| Product Model | TI-NED0428 |
| Product Name | TI-NED0428 4MP IR Turret Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 97.4° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Maximum Video Resolution | 2592 x 1520 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/2 |
| Exposure | |
| Shortest Shutter Speed | 1/20000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Pole Mount,Junction Box Mount,Pendant Mount,Corner Mount,Wall Mount |
| Form Factor | Turret |
| Durability | Water Resistant |
| Height | 4.06" (103 mm) |
| Diameter | 4.65" (118 mm) |
| Weight (Approximate) | 1.10 lb (500 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Wide Dynamic Range,Day/Night,Region of Interest,Highlight Compensation (HLC),Back Light Compensation (BLC),SD Card Local Storage,Human Detection,Automatic White Balance,Audio Compression,2D Digital Noise Reduction (2DNR),3D Digital Noise Reduction,Cross Line Detection |
| Ingress Protection Rating | IP66 |
User Manual
FAQ
What is the video resolution of this camera?
The Turing Video TI-NED0428 captures video at a maximum resolution of 2592 x 1520 pixels, which is 4 megapixels. This high resolution provides clear, detailed footage suitable for identifying faces, license plates, or other critical details in surveillance scenarios.
How far does the night vision reach?
The camera's infrared night vision is effective up to 98.43 feet (30 meters). This allows for reliable monitoring in low-light or complete darkness, ensuring 24/7 surveillance coverage for outdoor areas like parking lots or building perimeters.
Is this camera suitable for outdoor use?
Yes, the TI-NED0428 is designed for outdoor deployment with an IP66 ingress protection rating, making it dust-tight and resistant to heavy rain. It also operates across a wide temperature range from -40°F to 131°F, ensuring performance in harsh weather conditions.
What mounting options are available?
This turret camera supports multiple mounting types including pole mount, junction box mount, pendant mount, corner mount, and wall mount. This flexibility allows for installation in various locations such as ceilings, walls, or corners to achieve optimal viewing angles.
Does the camera support local storage?
Yes, the camera includes support for SD card local storage, enabling onboard recording without requiring a separate network video recorder (NVR) in basic setups. This feature provides a backup or primary storage solution for video footage.
What are the key imaging features?
Key imaging features include Wide Dynamic Range (WDR) for balancing bright and dark areas, Back Light Compensation (BLC) to prevent silhouetting, and 2D/3D Digital Noise Reduction (DNR) for cleaner video in low light. It also offers Automatic White Balance and Highlight Compensation (HLC) for accurate color reproduction.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
