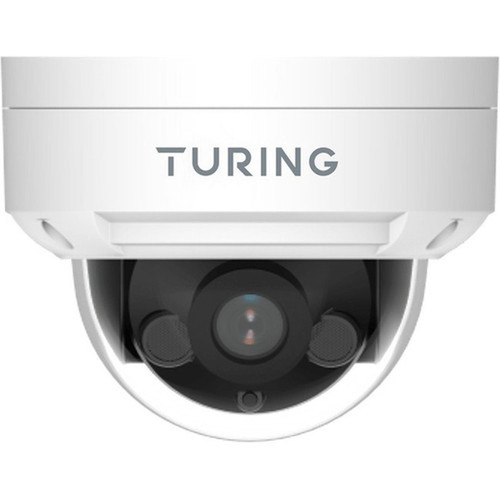

Turing Video TI-NFD08A28 Advantage 8MP 4K Dome IP Camera - 98. 43 ft IR Night Vision - 3840 x 2160 - IP67 Vandal-Resistant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera utilizes a CMOS image sensor that balances power efficiency with high-definition video quality. It supports 4K recording formats and includes advanced imaging technologies such as Wide Dynamic Range (WDR), 3D Digital Noise Reduction, and Back Light Compensation (BLC) to optimize video clarity in challenging lighting conditions. The camera features a fixed focal length of 2.8 mm with an f/2 aperture, providing consistent focus and adequate light intake.
Exposure control is managed through a shutter speed range from 1/20000 to 1/5 second, allowing adaptation to varying light levels. The camera operates on 12 V DC power and connects via wired Ethernet (RJ-45), ensuring stable network performance. It supports remote management for configuration and monitoring, and local storage via memory card offers backup recording capability.
Key Product Advantages
The TI-NFD08A28 combines high-resolution imaging with rugged durability, offering a reliable solution for continuous surveillance. Its 8-megapixel sensor captures fine details, while the infrared night vision ensures visibility in complete darkness. The camera's IP67 and IK10 ratings provide protection against water, dust, and physical impacts, reducing maintenance needs and extending service life in exposed locations.
Advanced Detection Capabilities
Incorporates intelligent analytics for face, human, and vehicle detection, enhancing security monitoring by reducing false alarms and focusing on relevant events.
- Face Detection
- Human Detection
- Vehicle Detection
- Cross Line Detection
Environmental Resilience
Designed to operate in extreme temperatures from -40°F to 131°F and up to 90% humidity, ensuring performance in diverse climates and conditions.
- Wide Temperature Range
- High Humidity Tolerance
- Vandal Resistant
- Water Resistant
Deployment / Use Cases
This dome camera is ideal for commercial, industrial, and institutional settings where high-definition monitoring and durability are paramount. Its 4K resolution makes it suitable for applications requiring detailed imagery, such as license plate recognition, perimeter security, and retail loss prevention. The versatile mounting options facilitate installation in various orientations, including ceilings, walls, and corners.
Common use cases include monitoring entry points, parking facilities, warehouses, schools, and public spaces. The camera's robust construction and night vision capabilities ensure reliable operation in low-light or adverse weather, providing continuous surveillance for safety and asset protection. Integration with existing network video recorders (NVRs) or video management systems (VMS) is straightforward due to its standard IP connectivity.
Perimeter and Outdoor Security
Deploy along fences, gates, or building exteriors to deter intrusions and capture clear evidence with its long-range night vision and weatherproof design.
Indoor High-Traffic Areas
Install in lobbies, hallways, or retail floors to monitor activity, enhance safety, and support operational oversight with its wide field of view and discreet dome shape.
Physical Profile
The camera features a compact dome form factor with a diameter of 4.33 inches (110 mm) and an approximate weight of 1.04 lb (470 g), allowing for unobtrusive installation. Its vandal-resistant and water-resistant build, coupled with an IP67 rating, ensures protection against environmental elements and tampering. The dome design also helps conceal the camera's viewing direction, adding a deterrent effect. Multiple mounting options—including junction box, pole, corner, wall, and pendant mounts—provide flexibility for various installation scenarios, ensuring optimal positioning for surveillance coverage.
- Weight
- 1.04 lb (470 g)
- Length
- 2.8 mm (0.11")
Highlights
- 8-megapixel 4K resolution (3840 x 2160) for detailed video capture
- Infrared night vision up to 98.43 ft (30 m) for 24/7 monitoring
- IP67 and IK10 ratings for water, dust, and vandal resistance
- Fixed 2.8 mm lens with 97.4° wide field of view
- CMOS sensor with 30 fps frame rate for smooth video
- Wired Ethernet (RJ-45) connectivity with remote management
- Supports local storage via memory card
- Versatile mounting: junction box, pole, corner, wall, pendant
- Operates in extreme temperatures from -40°F to 131°F
- Advanced features: WDR, noise reduction, face/vehicle detection
Specifications
| Specifications | |
|---|---|
| Manufacturer | Turing Video |
| Manufacturer Part Number | TI-NFD08A28 |
| Brand Name | Turing Video |
| Product Line | Advantage |
| Product Model | TI-NFD08A28 |
| Product Name | ADVANTAGE TI-NFD08A28 8MP IR Dome IP Camera 2.8mm |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 97.4° |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/2 |
| Exposure | |
| Shortest Shutter Speed | 1/20000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Mount Type | Junction Box Mount,Pole Mount,Corner Mount,Wall Mount,Pendant Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant,Water Resistant |
| Diameter | 4.33" (110 mm) |
| Weight (Approximate) | 1.04 lb (470 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Wide Dynamic Range,3D Digital Noise Reduction,Highlight Compensation (HLC),Back Light Compensation (BLC),Face Detection,Human Detection,Vehicle Detection,SD Card Local Storage,Day/Night,Automatic White Balance,2D Noise Reduction,Cross Line Detection |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Country of Origin | China |
User Manual
FAQ
What is the resolution and video quality of this camera?
The Turing Video TI-NFD08A28 delivers 8-megapixel resolution at 3840 x 2160 (4K UHD), providing sharp, detailed video suitable for identifying faces, license plates, and other critical details. It records at 30 frames per second for smooth motion capture, and features like Wide Dynamic Range and noise reduction enhance clarity in various lighting conditions.
How far does the night vision reach and what type is it?
This camera offers infrared night vision with an effective range of 98.43 feet (30 meters). The infrared LEDs enable clear black-and-white imaging in total darkness, ensuring reliable surveillance during nighttime hours without requiring external lighting.
Is this camera suitable for outdoor use?
Yes, the TI-NFD08A28 is built for outdoor and harsh environments. It has an IP67 rating for protection against dust and water immersion, and an IK10 impact resistance rating against vandalism. It operates in temperatures from -40°F to 131°F and handles up to 90% humidity, making it durable for year-round outdoor installation.
What mounting options are available?
This dome camera supports multiple mounting types for flexible installation: junction box mount, pole mount, corner mount, wall mount, and pendant mount. This versatility allows it to be positioned optimally in various settings, such as on ceilings, walls, or poles, to achieve the desired surveillance angle and coverage.
How is the camera powered and connected?
The camera uses a wired connection with an RJ-45 Ethernet port for network connectivity and is powered by 12 V DC. This setup ensures stable power and reliable data transmission, supporting remote management and integration with network video recorders or management systems.
Does it support local storage and what features enhance security?
Yes, it includes support for local storage via a memory card. Security is enhanced with intelligent detection features such as face detection, human detection, and vehicle detection, which help reduce false alarms and focus on relevant events. Additional features like backlight compensation and cross-line detection further improve monitoring accuracy.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
