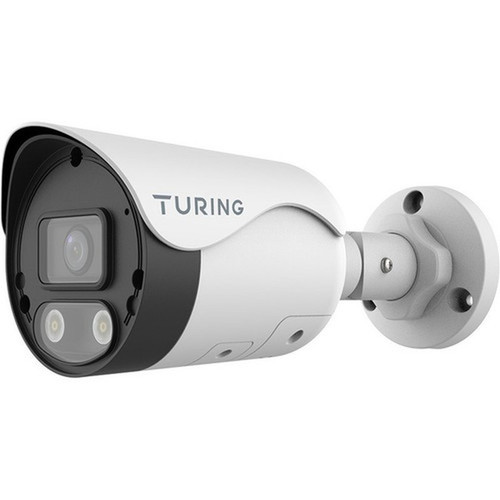

Turing Video TP-MBAD4M28 Smart 4MP Bullet Network Camera - 2688 x 1520 - Night Vision 98ft - IP67 - PoE/DC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a fixed 2.8 mm lens with an f/1.6 aperture, offering a wide field of view of 101.1° horizontally, 55.3° vertically, and 111.1° diagonally. The CMOS sensor enables efficient power consumption and high-quality video output, supporting formats including Ultra 265, H.265, H.264, and MJPEG for flexible recording and streaming.
Key technical features include built-in audio with a speaker and microphone, wide dynamic range for balanced lighting, and advanced noise reduction with 2D and 3D digital noise reduction. The camera also incorporates auto gain control, automatic white balance, and day/night functionality for consistent image quality in varying conditions.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The TP-MBAD4M28 stands out with its combination of high resolution, durable construction, and versatile features tailored for modern surveillance needs. Its infrared/color night vision extends up to 98.43 feet, providing reliable monitoring in low-light or no-light scenarios without compromising image clarity.
Enhanced Security Intelligence
Advanced detection features like cross-line detection and face detection enable proactive security monitoring, reducing false alarms and improving incident response accuracy.
- Cross Line Detection
- Face Detection
- Audio Compression
Durability and Reliability
With an IP67 rating and a wide operating temperature range from -22°F to 140°F, this camera is built to withstand extreme weather conditions, ensuring consistent performance year-round.
Deployment / Use Cases
Ideal for perimeter security, parking lots, and entry points, the bullet design and robust build make this camera a reliable choice for outdoor surveillance. Its PoE capability allows for easy integration into existing network infrastructures, supporting remote management and reducing installation costs.
Common applications include retail store monitoring, warehouse security, and residential property protection. The camera's audio features enable two-way communication, useful for intercom scenarios or alerting intruders. With support for memory card storage, it can function as a standalone recorder or complement larger NVR systems.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The bullet form factor offers a discreet yet durable design, suitable for mounting on walls, ceilings, or poles. Weighing approximately 1.10 pounds, it is lightweight enough for easy installation while maintaining a solid construction that resists tampering and environmental damage.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.10 lb (500 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.10 lb (500 g)
- Length
- 2.8 mm (0.11")
Highlights
- 4-megapixel resolution (2688 x 1520) for clear HD surveillance
- Infrared/color night vision up to 98.43 feet (30 meters)
- IP67-rated bullet design for dust and water resistance
- Supports Power over Ethernet (PoE) and 12V DC power inputs
- Wide 101.1° horizontal field of view for broad coverage
- Built-in speaker and microphone for audio monitoring
- Advanced video formats: Ultra 265, H.265, H.264, MJPEG
- 10-year limited warranty for long-term reliability
- Cross-line detection and face detection for smart security
- Operating temperature range: -22°F to 140°F (-30°C to 60°C)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Turing Video |
| Manufacturer Part Number | TP-MBAD4M28 |
| Brand Name | Turing Video |
| Product Line | Smart |
| Product Model | TP-MBAD4M28 |
| Product Name | Smart TP-MBAD4M28 Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared/Color |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H: 101.1°; V: 55.3°; D: 111.1° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | Ultra 265,H.265,H.264,MJPEG |
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Form Factor | Bullet |
| Weight (Approximate) | 1.10 lb (500 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Built-in Speaker,Built-in Microphone,Wide Dynamic Range,Auto Gain Control,Day/Night,Audio Compression,Automatic White Balance,2D Digital Noise Reduction (2DNR),3D Digital Noise Reduction,Cross Line Detection,Face Detection |
| Ingress Protection Rating | IP67 |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 10 Year |
User Manual
FAQ
What is the resolution and frame rate of this camera?
The Turing Video TP-MBAD4M28 captures video at 4 megapixel resolution, specifically 2688 x 1520 pixels, with a maximum frame rate of 30 frames per second. This ensures detailed and smooth video footage for effective surveillance monitoring.
How far does the night vision reach?
The camera provides night vision up to 98.43 feet (30 meters) using infrared and color technology. This allows for clear monitoring in low-light or complete darkness, making it suitable for outdoor and indoor security applications during nighttime.
What power options are available for this camera?
This camera supports both Power over Ethernet (PoE) and 12V DC power inputs. PoE simplifies installation by delivering power and data through a single Ethernet cable, while the DC option offers flexibility for setups without PoE switches.
Is this camera suitable for outdoor use?
Yes, the camera is designed for outdoor use with an IP67 ingress protection rating, which makes it dust-tight and waterproof against temporary immersion. It also operates in temperatures from -22°F to 140°F, ensuring reliability in harsh weather conditions.
What video formats does the camera support?
It supports multiple video formats including Ultra 265, H.265, H.264, and MJPEG. These formats offer efficient compression for storage and streaming, with H.265 and Ultra 265 providing high-quality video at lower bitrates to save bandwidth and storage space.
What warranty comes with this camera?
The camera includes a 10-year limited warranty, providing long-term coverage and peace of mind for your surveillance investment. This warranty underscores the product's durability and the manufacturer's commitment to quality and reliability.
