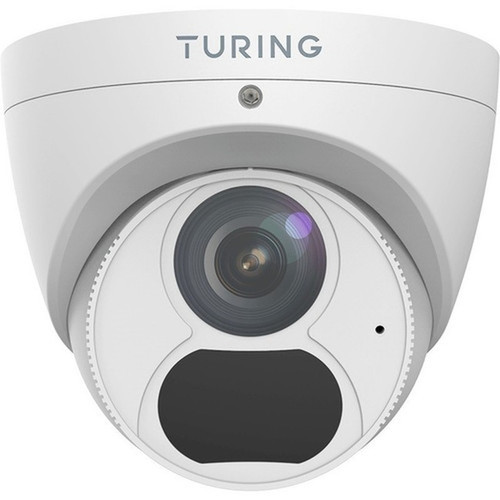

Turing Video TP-MED4M28 Smart 4MP HD TwilightVision IR Turret Network Camera - Indoor/Outdoor - 2688 x 1520 - 98. 43 ft Night Vision - IP67 - White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera is built with advanced imaging technology to handle challenging lighting scenarios. Its infrared night vision extends up to 98.43 feet (30 meters), providing reliable visibility in complete darkness. The wide 111.1-degree diagonal field of view covers expansive areas, reducing the number of cameras needed for comprehensive coverage.
Video compression includes support for Ultra 265, H.265, H.264, and Motion JPEG formats, optimizing bandwidth and storage efficiency. The fixed 2.8mm lens with f/1.6 aperture ensures consistent focus and good low-light performance.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The TP-MED4M28 stands out with its combination of high-resolution imaging, durable construction, and intelligent features designed for practical security applications.
Enhanced Low-Light Performance
Infrared night vision and a wide dynamic range ensure clear footage in varying light conditions, from bright daylight to complete darkness.
- 98.43 ft infrared night vision
- Wide Dynamic Range (WDR)
- Automatic white balance
Robust Environmental Protection
IP67 rating guarantees resistance to dust and temporary immersion, making it suitable for outdoor installations in harsh weather.
- IP67 ingress protection
- Operating range -22°F to 140°F
- 95% max humidity tolerance
Intelligent Video Analytics
Built-in analytics reduce false alarms and enhance security monitoring with precise event detection.
- Motion detection
- Tampering alarm
- Audio detection
- Privacy masking
Deployment / Use Cases
This camera is versatile enough for both residential and commercial security deployments. Its indoor/outdoor rating and multiple mounting options allow installation in entryways, parking lots, retail spaces, and perimeter fencing.
For business environments, the camera supports remote management and local storage via memory card, providing flexibility in video retention and access. The turret design deters vandalism and blends into architectural settings while maintaining a wide surveillance angle.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Retail & Commercial Security
Monitor entrances, cash registers, and inventory areas with high-resolution video that captures fine details like license plates or facial features.
Residential & Perimeter Monitoring
Secure home exteriors, driveways, and gates with reliable night vision and weather-resistant construction that withstands seasonal changes.
Physical Profile
The turret-style housing measures 3.70 inches in height, 7.20 inches in width, and 4.35 inches in diameter, offering a compact footprint for discreet placement. Finished in white, it complements most building exteriors and interiors. Multiple mount types—including junction box, pole, wall, tilted, and pendant—provide installation flexibility for various surfaces and angles.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.70" (94.10 mm), 7.20" (182.88 mm), 14.82 oz (420 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 7.20" (182.88 mm)
- Height
- 3.70" (94.10 mm)
- Weight
- 14.82 oz (420 g)
- Length
- 2.8 mm (0.11")
Highlights
- 4MP resolution at 2688 x 1520 for detailed video evidence
- Infrared night vision up to 98.43 feet (30 meters)
- IP67 rating for dust and water resistance in outdoor environments
- Wide 111.1-degree diagonal field of view reduces blind spots
- Supports H.265, H.264, and Ultra 265 compression for efficient storage
- Built-in microphone and audio detection for comprehensive monitoring
- Multiple mounting options: junction box, pole, wall, tilted, pendant
- Operating temperature range from -22°F to 140°F (-30°C to 60°C)
- 12V DC power input with surge protection for reliable operation
- Local storage via memory card with remote management capability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Turing Video |
| Manufacturer Part Number | TP-MED4M28 |
| Brand Name | Turing Video |
| Product Line | Smart |
| Product Model | TP-MED4M28 |
| Product Name | 4MP HD TwilightVision IR Turret Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H: 101.1°, V: 55.3°, O: 111.1° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | Ultra 265,H.265,H.264,Motion JPEG,H.264 BP,H.264 (MP),H.264 HP |
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Junction Box Mount,Pole Mount,Wall Mount,Tilted Mount,Pendant Mount |
| Form Factor | Turret |
| Height | 3.70" (94.10 mm) |
| Width | 7.20" (182.88 mm) |
| Diameter | 4.35" (110.50 mm) |
| Weight (Approximate) | 14.82 oz (420 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | SD Card Local Storage,Wide Dynamic Range,Built-in Microphone,Surge Protection,Ingress Protection,Automatic White Balance,Digital Noise Reduction,2D Digital Noise Reduction (2DNR),3D Digital Noise Reduction,Highlight Compensation (HLC),Back Light Compensation (BLC),Day/Night,Digital Defog,Privacy Masking,Motion Detection,Tampering Alarm,Audio Detection |
| Indoor/Outdoor | Indoor/Outdoor |
| Ingress Protection Rating | IP67 |
| Country of Origin | China |
User Manual
FAQ
What is the maximum video resolution of the Turing Video TP-MED4M28 camera?
The camera delivers 4-megapixel resolution at 2688 x 1520 pixels, providing high-definition video that captures fine details essential for identification and evidence. This resolution supports clear monitoring even when zooming into specific areas of the frame.
How far does the night vision reach on this network camera?
Infrared night vision extends up to 98.43 feet (30 meters), ensuring reliable surveillance in complete darkness. This range covers typical outdoor areas like driveways, yards, and building perimeters without requiring additional lighting.
Is this camera suitable for outdoor installation?
Yes, the TP-MED4M28 is rated IP67 for dust and water resistance, making it suitable for outdoor use. It operates in temperatures from -22°F to 140°F (-30°C to 60°C) and handles humidity up to 95%, ensuring durability in various weather conditions.
What mounting options are available for this turret camera?
It supports junction box, pole, wall, tilted, and pendant mounting, offering flexibility for different installation scenarios. This versatility allows secure placement on ceilings, walls, or poles to achieve optimal viewing angles.
Does the camera support local storage, and what video formats are compatible?
Yes, it includes SD card local storage for onboard recording. Video formats supported are Ultra 265, H.265, H.264, Motion JPEG, H.264 BP, H.264 (MP), and H.264 HP, providing efficient compression to save bandwidth and storage space.
What advanced features does this camera include for security monitoring?
Features include motion detection, tampering alarm, audio detection, privacy masking, digital defog, and backlight compensation. These analytics help reduce false alarms and enhance monitoring accuracy by focusing on relevant security events.
