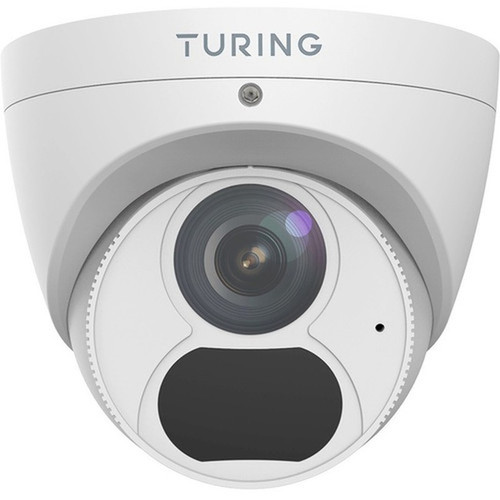

Turing Video TP-MED4M28-1Y Smart TP-MED4M28 4MP Network Camera - Color Turret - White - 98. 43 ft Infrared Night Vision - Ultra 265 - H. 265 - H. 264
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera records in multiple video formats including Ultra 265, H.265, H.264, and Motion JPEG, allowing flexible compression to balance quality and storage efficiency. The lens features a maximum aperture of f/1.6 for improved light gathering, with shutter speeds ranging from 1/100,000 second to 1 second to handle varying lighting scenarios.
Connectivity is wired via RJ-45, supporting both 12V DC and Power over Ethernet (PoE) for simplified installation. The camera includes an SD card slot for local storage and supports remote management for convenient oversight.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The TP-MED4M28 combines robust imaging capabilities with practical durability for continuous surveillance operations. Its IP67 rating ensures resistance to dust and temporary immersion, making it suitable for outdoor or harsh indoor settings.
Enhanced Video Intelligence
Features like Highlight Compensation (HLC), Back Light Compensation (BLC), and Digital Defog optimize image clarity in challenging lighting, while privacy masking and tampering alarms add security layers.
- Automatic White Balance
- Day/Night Mode
- Audio Detection
Reliable Construction
Built with surge protection and a wide operating temperature range from -22°F to 140°F, this camera withstands environmental extremes for year-round performance.
- 95% Max Humidity Tolerance
- White Color for Blending
- Turret Mounting Stability
Deployment / Use Cases
Ideal for small to medium business security, the Turing Video Smart camera fits scenarios requiring clear, actionable footage. Its turret design deters tampering and blends into architectural surroundings, while PoE support reduces cabling complexity.
Common applications include retail store monitoring, office building entrances, warehouse perimeters, and residential property surveillance. The camera's local storage option via SD card provides backup recording, and its compatibility with H.265 and Ultra 265 formats minimizes bandwidth and storage demands on network video recorders (NVRs).
Outdoor Security
With IP67 protection and infrared night vision, deploy this camera for perimeter monitoring, parking lots, or building exteriors where weather resistance and low-light performance are critical.
Indoor Monitoring
Use in lobbies, hallways, or retail floors where the white turret design offers discreet observation and features like wide dynamic range handle mixed lighting from windows or bright interiors.
Physical Profile
The camera measures 3.70 inches in height and 4.35 inches in diameter, with a compact turret form that facilitates ceiling or wall mounting. Its white finish suits most decors, and the approximate weight of 14.82 ounces ensures stable installation without excessive bulk.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.70" (94.10 mm), 14.82 oz (420 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 3.70" (94.10 mm)
- Weight
- 14.82 oz (420 g)
- Length
- 2.8 mm (0.11")
Highlights
- 4-megapixel resolution at 2688 x 1520 for detailed surveillance footage
- Infrared night vision effective up to 98.43 feet (30 meters)
- Supports Ultra 265, H.265, and H.264 video compression formats
- IP67-rated for dust and water resistance in outdoor or harsh environments
- Power over Ethernet (PoE) and 12V DC options for flexible installation
- Wide dynamic range and digital noise reduction for clear images in varying light
- Built-in microphone and SD card slot for audio recording and local storage
- Turret form factor in white for discreet, tamper-resistant mounting
Specifications
| Specifications | |
|---|---|
| Manufacturer | Turing Video |
| Manufacturer Part Number | TP-MED4M28-1Y |
| Brand Name | Turing Video |
| Product Line | Smart |
| Product Model | TP-MED4M28 |
| Product Name | 4MP HD TwilightVision IR Turret Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | Angle of view(H) 101.1° 83.7° Angle of View (V) 55.3° 44.9° Angle of View (O) 111.1° 89.2° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | Ultra 265,H.265,H.264,Motion JPEG,H.264 BP,H.264 (MP),H.264 HP |
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Form Factor | Turret |
| Height | 3.70" (94.10 mm) |
| Diameter | 4.35" (110.50 mm) |
| Weight (Approximate) | 14.82 oz (420 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | SD Card Local Storage,Wide Dynamic Range,Built-in Microphone,Surge Protection,Ingress Protection,Automatic White Balance,Digital Noise Reduction,2D Digital Noise Reduction (2DNR),3D Digital Noise Reduction,Highlight Compensation (HLC),Back Light Compensation (BLC),Day/Night,Digital Defog,Privacy Masking,Motion Detection,Tampering Alarm,Audio Detection |
| Ingress Protection Rating | IP67 |
| Country of Origin | China |
User Manual
FAQ
What is the resolution and frame rate of this network camera?
The Turing Video Smart TP-MED4M28 captures video at 4-megapixel resolution, specifically 2688 x 1520 pixels, with a maximum frame rate of 30 frames per second. This combination delivers high-definition, smooth footage suitable for identifying details in real-time surveillance scenarios.
How far does the night vision reach, and what type is it?
This camera features infrared night vision with an effective distance of 98.43 feet (30 meters). The infrared illumination allows the camera to monitor in complete darkness, ensuring continuous security coverage during nighttime or low-light conditions without visible light.
What video formats does the camera support for recording?
It supports multiple video formats including Ultra 265, H.265, H.264, and Motion JPEG. These formats offer efficient compression to reduce bandwidth and storage needs while maintaining video quality, with Ultra 265 and H.265 providing advanced efficiency for modern surveillance systems.
Is this camera suitable for outdoor use, and what is its weather resistance rating?
Yes, the camera is designed for outdoor use with an IP67 ingress protection rating. This means it is dust-tight and can withstand temporary immersion in water, making it reliable for installations exposed to rain, dust, or harsh environmental conditions.
What power options are available for this network camera?
The camera can be powered either by 12V DC or through Power over Ethernet (PoE). PoE allows both power and data to be delivered over a single Ethernet cable, simplifying installation and reducing the need for separate power outlets near the camera location.
Does this camera include local storage, and what features enhance image quality?
Yes, it includes an SD card slot for local storage, providing backup recording capability. Image quality is enhanced by features such as wide dynamic range to handle high-contrast scenes, digital noise reduction for cleaner footage, and automatic white balance for accurate color reproduction in varying lighting.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
