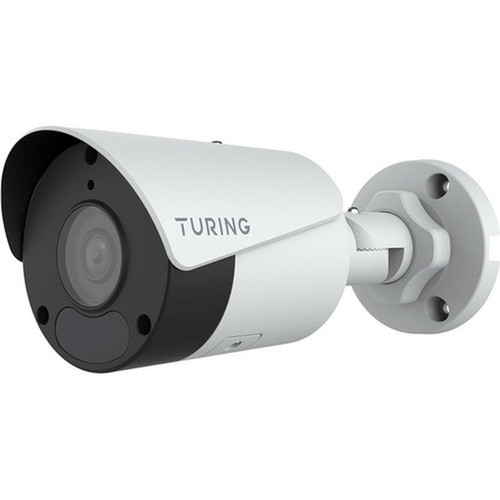

Turing Video TP-MFB4M4 Smart 4MP Bullet Network Camera - 2688 x 1520 Resolution - 131 ft Infrared Night Vision - IP67 - Wired
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The TP-MFB4M4 supports multiple video compression formats including Ultra 265, H.265, and H.264, optimizing bandwidth usage without sacrificing video clarity. Its fixed 4mm lens provides a consistent field of view, while the f/1.6 aperture ensures adequate light capture in low-light environments.
Network connectivity is handled through a standard RJ-45 port, supporting remote management capabilities for configuration and monitoring. The camera includes local storage via memory card, offering flexibility for standalone recording when network video recorder integration isn't immediately available.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Video Compression
Supports Ultra 265, H.265, H.264, MJPEG, and multiple H.264 profiles for efficient bandwidth management and storage optimization.
Key Product Advantages
This camera delivers several distinct advantages for surveillance deployments where reliability and image quality are paramount.
Extended Night Coverage
Infrared illumination reaches 131 feet (40 meters), providing clear monochrome imaging in complete darkness for comprehensive 24/7 monitoring.
- Infrared night vision technology
- 40-meter effective range
- Automatic day/night switching
Environmental Durability
IP67 rating ensures protection against dust ingress and temporary immersion in water, making it suitable for outdoor installations in challenging weather conditions.
- IP67 certified
- Operates from -22°F to 140°F
- 95% maximum humidity tolerance
Image Enhancement Features
Advanced processing includes wide dynamic range, digital noise reduction, and backlight compensation to maintain image quality across varying lighting scenarios.
- Wide Dynamic Range (WDR)
- 2D/3D Digital Noise Reduction
- Back Light Compensation
Deployment / Use Cases
The TP-MFB4M4 bullet camera is designed for perimeter security, entry point monitoring, and outdoor surveillance where its specific capabilities address common security challenges.
Its pole and junction box mounting options provide installation flexibility for various architectural environments, from commercial building exteriors to industrial facility perimeters.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Deployment planning benefits from clear examples of where the product fits best, how it may be installed or used, and which business scenarios it supports most naturally. This helps teams judge whether the product belongs at a fixed desk, in a shared workspace, in a meeting area, or as part of a broader managed device rollout.
Business Perimeter Security
Monitor parking lots, loading docks, and building entrances with the camera's extended night vision and weather-resistant construction.
Industrial Facility Monitoring
Deploy in manufacturing plants or warehouses where the IP67 rating protects against dust and moisture while maintaining surveillance coverage.
Physical Profile
The bullet form factor measures 6.14" in length with a 2.48" width and 2.47" height, presenting a compact profile suitable for discreet installation. Weighing approximately 14.82 ounces (420 grams), it maintains a low physical footprint while housing the imaging components and infrared LEDs.
Mounting options include pole and junction box installations, providing flexibility for both new and retrofit security deployments. The design accommodates standard surveillance mounting hardware for straightforward integration into existing security infrastructures.
- Width
- 2.48" (63.10 mm)
- Height
- 2.47" (62.70 mm)
- Weight
- 14.82 oz (420 g)
- Length
- 4 mm (0.16")
Highlights
- 4-megapixel resolution delivers 2688 x 1520 HD video
- Infrared night vision effective to 131.23 feet (40 meters)
- IP67 rating for dust and water resistance in outdoor environments
- Fixed 4mm lens with f/1.6 aperture for consistent field of view
- Supports Ultra 265, H.265, and H.264 video compression
- Wired RJ-45 connectivity with remote management capability
- Operates in temperatures from -22°F to 140°F (-30°C to 60°C)
- Includes wide dynamic range and digital noise reduction features
- Local storage support via memory card
- Pole and junction box mounting options
Specifications
| Specifications | |
|---|---|
| Manufacturer | Turing Video |
| Manufacturer Part Number | TP-MFB4M4 |
| Brand Name | Turing Video |
| Product Line | Smart |
| Product Model | TP-MFB4M4 |
| Product Name | 4MP HD TwilightVision IR Bullet Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 131.23 ft (40 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 83.7°(H) 44.9°(V) 89.2°(O) |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | Ultra 265,H.265,H.264,MJPEG,H.264 BP,H.264 (MP),H.264 HP |
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm (0.16") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Mount Type | Pole Mount,Junction Box Mount |
| Form Factor | Bullet |
| Height | 2.47" (62.70 mm) |
| Width | 2.48" (63.10 mm) |
| Length | 6.14" (155.90 mm) |
| Weight (Approximate) | 14.82 oz (420 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Auto Gain Control,White Balance,Surge Protection,SD Card Local Storage,Wide Dynamic Range,2D Digital Noise Reduction (2DNR),3D Digital Noise Reduction,Back Light Compensation (BLC),Highlight Compensation (HLC),Ingress Protection |
| Ingress Protection Rating | IP67 |
| Country of Origin | China |
User Manual
FAQ
What is the maximum video resolution of this camera?
The Turing Video TP-MFB4M4 captures video at up to 2688 x 1520 resolution, which is 4-megapixel quality. This provides detailed imagery suitable for identifying faces, license plates, and other important details in surveillance footage. The camera maintains this resolution at 30 frames per second for smooth motion capture.
How far does the night vision reach?
The infrared night vision is effective up to 131.23 feet (40 meters) in complete darkness. This extended range makes the camera suitable for monitoring larger outdoor areas like parking lots, perimeters, and building exteriors during nighttime hours when visibility is limited.
Is this camera suitable for outdoor installation?
Yes, with an IP67 ingress protection rating, the camera is designed for outdoor use. It's protected against dust ingress and can withstand temporary immersion in water, making it appropriate for various weather conditions. The operating temperature range of -22°F to 140°F (-30°C to 60°C) further supports outdoor deployment.
What type of lens does this camera have?
This camera features a fixed 4mm lens with an f/1.6 maximum aperture. The fixed focal length provides a consistent 83.7° horizontal field of view, making it well-suited for monitoring specific areas without requiring zoom adjustment. The lens is included with the camera and doesn't require separate purchase.
What power source does this network camera require?
The TP-MFB4M4 operates on 12V DC power, which is standard for many surveillance cameras. This voltage can typically be supplied through power over Ethernet (PoE) injectors or separate 12V power adapters, providing flexibility in how the camera receives power based on your installation requirements.
Can this camera store video locally without a network video recorder?
Yes, the camera supports local storage via memory card, allowing it to record footage independently when not connected to a network video recorder. This provides deployment flexibility for temporary installations or locations where NVR connectivity isn't immediately available, though remote management still requires network access.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
