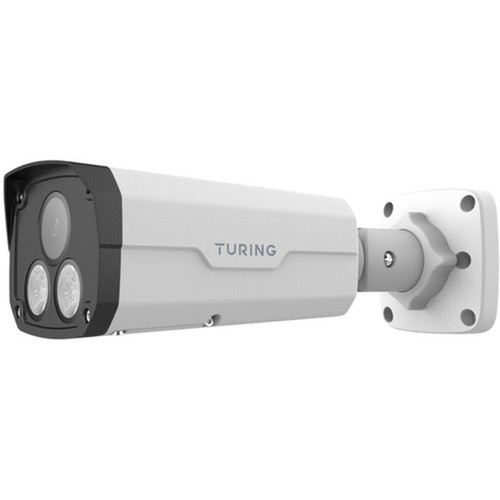

Turing Video TP-MFB5A4C Smart 5MP Outdoor Bullet Network Camera - Color - 2880 x 1620 - Varifocal Lens - IP67 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The TP-MFB5A4C utilizes advanced video compression technologies including Ultra 265, H.265, H.264, and MJPEG formats to optimize bandwidth usage and storage efficiency without compromising image quality. The varifocal lens with a maximum 4mm focal length and 80.2° field of view allows for flexible framing adjustments during installation to cover specific areas of interest effectively.
Imaging features include Wide Dynamic Range (WDR) for balanced exposure in high-contrast lighting, automatic white balance for accurate color reproduction, and 2D/3D digital noise reduction for cleaner video in low-light conditions. The camera supports day/night operation with automatic switching based on ambient light levels, though it does not include infrared night vision capabilities.
This section brings together practical product details such as HD Recording, Night Vision, Image Sensor Type, Color Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This camera stands out with its combination of high-resolution imaging, rugged durability, and intelligent features designed for practical surveillance deployment. The IP67 rating ensures complete protection against dust ingress and temporary immersion in water, while the IK10 impact resistance guards against deliberate vandalism and accidental impacts.
Advanced Detection Capabilities
Integrated cross-line detection and face detection algorithms enhance security monitoring by triggering alerts for specific events, reducing false alarms and improving response efficiency.
- Cross Line Detection
- Face Detection
- Auto Gain Control
Flexible Storage Options
Local storage via memory card provides backup recording capability independent of network video recorders, ensuring continuous footage capture even during network interruptions.
- SD Card Support
- Local Backup
- Network Redundancy
Deployment / Use Cases
The TP-MFB5A4C is specifically designed for outdoor surveillance applications where environmental factors and security requirements demand robust equipment. Its white finish and bullet form factor provide discreet monitoring while withstanding exposure to weather elements and potential physical interference.
Typical installations include retail storefronts, industrial facilities, educational campuses, government buildings, and residential complexes requiring perimeter security. The junction box and pole mounting options offer flexible installation on various surfaces, while the compact dimensions (3.35"H x 3.39"W x 9.69"L) ensure minimal visual intrusion.
This section brings together practical product details such as HD Recording, Night Vision, Image Sensor Type, Color Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Commercial Perimeter Security
Monitor building exteriors, parking areas, and access points with high-resolution color imaging and vandal-resistant construction.
Infrastructure Monitoring
Deploy in transportation hubs, utility sites, and industrial parks where equipment must withstand temperature extremes and environmental exposure.
Physical Profile
The bullet-style housing measures 3.35 inches in height, 3.39 inches in width, and 9.69 inches in length (85mm x 86mm x 246mm), with a weight of approximately 2.03 pounds (920 grams). The white color provides neutral aesthetics that blend with most architectural environments. Mounting options include junction box and pole installations, offering versatility for different surveillance scenarios. The durable construction maintains operational integrity across a wide temperature range from -22°F to 140°F (-30°C to 60°C) and up to 95% humidity.
- Width
- 3.39" (86 mm)
- Height
- 3.35" (85 mm)
- Weight
- 2.03 lb (920 g)
- Length
- 4 mm (0.16")
Highlights
- 5-megapixel resolution delivers 2880x1620 video for detailed surveillance imaging
- IP67 weatherproof rating protects against dust and water immersion
- IK10 impact resistance withstands vandalism and accidental impacts
- Varifocal lens with 4mm maximum focal length and 80.2° field of view
- Supports Ultra 265, H.265, H.264, and MJPEG video compression formats
- Wide Dynamic Range balances exposure in high-contrast lighting conditions
- Cross-line detection and face detection for intelligent event monitoring
- Local storage via memory card provides backup recording capability
- Operating temperature range from -22°F to 140°F (-30°C to 60°C)
- 12V DC power input with wired RJ-45 network connectivity
Specifications
| Specifications | |
|---|---|
| Manufacturer | Turing Video |
| Manufacturer Part Number | TP-MFB5A4C |
| Brand Name | Turing Video |
| Product Line | Smart |
| Product Model | TP-MFB5A4C |
| Product Name | 5MP HD TruColor Fixed Bullet Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | No |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 80.2° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | Ultra 265,H.265,H.264,MJPEG |
| Maximum Video Resolution | 2880 x 1620 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Varifocal |
| Maximum Focal Length | 4 mm (0.16") |
| Lens Included | Yes |
| Maximum Aperture | f/1 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Junction Box Mount,Pole Mount |
| Form Factor | Bullet |
| Durability | Water Resistant,Vandal Resistant |
| Height | 3.35" (85 mm) |
| Width | 3.39" (86 mm) |
| Length | 9.69" (246 mm) |
| Weight (Approximate) | 2.03 lb (920 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Wide Dynamic Range,Day/Night,SD Card Local Storage,Automatic White Balance,Audio Compression,Cross Line Detection,Face Detection,Auto Gain Control,2D Digital Noise Reduction (2DNR),3D Digital Noise Reduction |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
User Manual
FAQ
What is the maximum video resolution of this camera?
The Turing Video Smart TP-MFB5A4C captures video at up to 2880 x 1620 resolution, which corresponds to its 5-megapixel sensor capability. This high-definition imaging provides detailed surveillance footage suitable for identifying faces, license plates, and other critical details in security applications.
Does this camera support night vision?
No, this camera does not include infrared night vision capabilities. It is designed for color imaging in daylight and low-light conditions using its CMOS sensor with features like Wide Dynamic Range and digital noise reduction. For complete darkness surveillance, supplemental lighting would be required.
What environmental protection ratings does this camera have?
The camera carries an IP67 ingress protection rating, meaning it is completely dust-tight and can withstand temporary immersion in water up to 1 meter for 30 minutes. It also has an IK10 impact protection rating, providing resistance against impacts of 20 joules, equivalent to protection against vandalism and accidental blows.
What video compression formats are supported?
This camera supports multiple video compression formats including Ultra 265, H.265, H.264, and MJPEG. These formats allow for efficient bandwidth usage and storage optimization, with H.265 and Ultra 265 providing particularly high compression efficiency while maintaining image quality.
What mounting options are available for installation?
The TP-MFB5A4C supports junction box mounting and pole mounting, providing flexibility for different installation scenarios. The bullet form factor is designed for wall or ceiling mounting in outdoor environments, with the included varifocal lens allowing for adjustment of the field of view during setup.
What storage options does this network camera support?
This camera supports local storage via memory card (SD card), allowing for backup recording independent of network video recorders. This provides redundancy in case of network interruptions and enables continuous footage capture directly at the camera location.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
