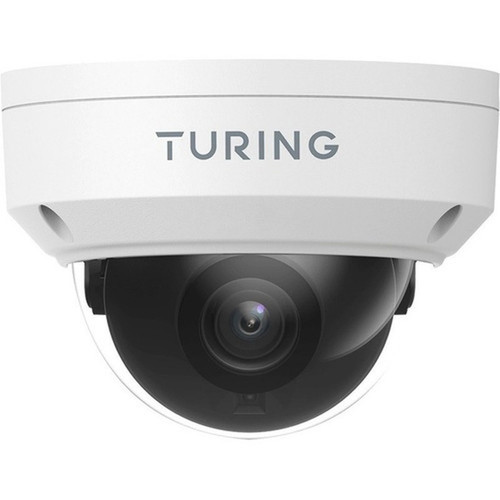

Turing Video TP-MFD4A28 Smart 4MP HD Dome Network Camera - 98. 43 ft Infrared Night Vision - 2688 x 1520 Resolution - Vandal Resistant IP67 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera utilizes a CMOS image sensor that balances power efficiency with high-definition video quality. It supports multiple video compression formats including Ultra 265, H.265, and H.264 variants, optimizing bandwidth usage without compromising detail. The camera processes video through 2D and 3D digital noise reduction algorithms, while automatic white balance and backlight compensation maintain accurate colors in challenging lighting scenarios.
Network connectivity is provided through a standard RJ-45 port for wired Ethernet installation, with remote management capabilities for configuration and monitoring from centralized systems. Local storage is supported via SD card, offering flexible recording options alongside network video recorder integration. The camera operates on 12V DC power and includes comprehensive environmental protection for reliable performance in both indoor and outdoor installations.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The TP-MFD4A28 combines high-resolution imaging with rugged construction for surveillance applications where reliability and image quality are paramount. Its infrared night vision extends monitoring capability around the clock, while the dome design deters tampering and blends into various environments.
Advanced Video Processing
Utilizes Ultra 265 and H.265 compression for efficient bandwidth usage while maintaining 4MP detail. Digital defog and highlight compensation enhance visibility in adverse conditions.
- Multiple compression formats
- Digital noise reduction
- Wide dynamic range
Comprehensive Surveillance Features
Includes motion detection, privacy masking, tampering alarm, and audio detection for intelligent monitoring. Day/night functionality automatically adjusts to lighting changes.
- Motion detection zones
- Privacy masking capability
- Audio detection support
Deployment / Use Cases
This dome camera is ideal for commercial and institutional surveillance where discreet monitoring and environmental durability are required. Its multiple mounting options including junction box, wall, pole, pendant, and tilted mounts provide installation flexibility for ceilings, corners, and outdoor structures.
Typical applications include retail stores, office buildings, schools, parking facilities, and industrial sites. The camera's IP67 rating makes it suitable for outdoor use in weather-exposed locations, while the IK10 impact resistance protects against vandalism in high-traffic public areas. The 12V DC power requirement allows integration with standard security system power supplies.
Retail Security
Monitor entrances, sales floors, and storage areas with clear 4MP video. The dome design is less intrusive than bullet cameras while providing wide coverage.
- Discreet monitoring
- Wide field of view
- Vandal resistance
Perimeter Protection
Secure building exteriors and property boundaries with infrared night vision covering up to 98 feet. Multiple mount types adapt to various structural surfaces.
- Long-range night vision
- Weather-resistant construction
- Flexible mounting
Physical Profile
The camera features a compact dome enclosure measuring 3.20 inches in height and 4.30 inches in diameter (81.28 mm × 109.22 mm), with an approximate weight of 14.99 ounces (425 grams). This streamlined profile facilitates installation in space-constrained locations while maintaining a professional appearance. The vandal-resistant construction includes surge protection for added reliability in electrical environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.20" (81.28 mm), 14.99 oz (425 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 3.20" (81.28 mm)
- Weight
- 14.99 oz (425 g)
- Length
- 2.8 mm (0.11")
Highlights
- 4-megapixel HD resolution (2688 × 1520) for detailed surveillance footage
- Infrared night vision covering distances up to 98.43 feet (30 meters)
- Vandal-resistant dome design with IP67 weatherproof and IK10 impact ratings
- Wide 111.1-degree diagonal field of view for comprehensive area coverage
- Supports Ultra 265, H.265, and H.264 video compression formats
- Fixed 2.8 mm lens with f/1.6 aperture for consistent image quality
- Multiple mounting options: junction box, wall, pole, pendant, and tilted
- Operates in temperatures from -22°F to 140°F (-30°C to 60°C)
- Includes motion detection, privacy masking, and audio detection features
- 12V DC powered with wired Ethernet connectivity for reliable operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Turing Video |
| Manufacturer Part Number | TP-MFD4A28 |
| Brand Name | Turing Video |
| Product Line | Smart |
| Product Model | TP-MFD4A28 |
| Product Name | 4MP HD TwilightVision IR Dome Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H: 101.1°, V: 55.3°, O: 111.1° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | Ultra 265,H.265,H.264,Motion JPEG,H.264 BP,H.264 (MP),H.264 HP |
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Mount Type | Junction Box Mount,Pole Mount,Wall Mount,Tilted Mount,Pendant Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant |
| Height | 3.20" (81.28 mm) |
| Diameter | 4.30" (109.22 mm) |
| Weight (Approximate) | 14.99 oz (425 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | SD Card Local Storage,Wide Dynamic Range,Audio Detection,Surge Protection,Ingress Protection,Automatic White Balance,Tampering Alarm,2D Digital Noise Reduction (2DNR),3D Digital Noise Reduction,Highlight Compensation (HLC),Back Light Compensation (BLC),Day/Night,Digital Defog,Privacy Masking,Motion Detection |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Country of Origin | China |
User Manual
FAQ
What is the effective resolution of this network camera?
The Turing Video TP-MFD4A28 delivers 4-megapixel resolution at 2688 × 1520 pixels. This high-definition capability provides detailed imagery suitable for identifying faces, license plates, and other critical details in surveillance applications. The camera maintains this resolution at 30 frames per second for smooth motion capture.
How far does the night vision reach on this camera?
The integrated infrared illumination provides clear night vision up to 98.43 feet (30 meters) in complete darkness. This extended range ensures reliable monitoring during nighttime hours or in poorly lit environments. The camera automatically switches between day and night modes based on ambient light conditions.
What environmental protections does this dome camera offer?
This camera carries both IP67 and IK10 ratings. The IP67 rating indicates complete protection against dust ingress and protection against immersion in water up to 1 meter for 30 minutes. The IK10 rating signifies resistance to impacts of 20 joules, equivalent to protection against vandalism and deliberate physical attacks.
What mounting options are available for installation?
The camera supports five mounting configurations: junction box mount, pole mount, wall mount, tilted mount, and pendant mount. This flexibility allows installation on various surfaces including ceilings, walls, corners, and outdoor structures. All necessary hardware for these mounting methods is included with the camera.
What video compression formats does this camera support?
The camera supports multiple compression formats including Ultra 265, H.265, H.264, Motion JPEG, H.264 BP, H.264 (MP), and H.264 HP. These options allow optimization for bandwidth efficiency or compatibility with different recording systems. The advanced compression reduces storage requirements while maintaining video quality.
What power supply does this network camera require?
The camera operates on 12V DC power, which is standard for professional surveillance installations. This voltage requirement allows integration with most security system power supplies and uninterrupted power sources. The camera does not support Power over Ethernet (PoE), requiring separate power wiring alongside the network connection.
