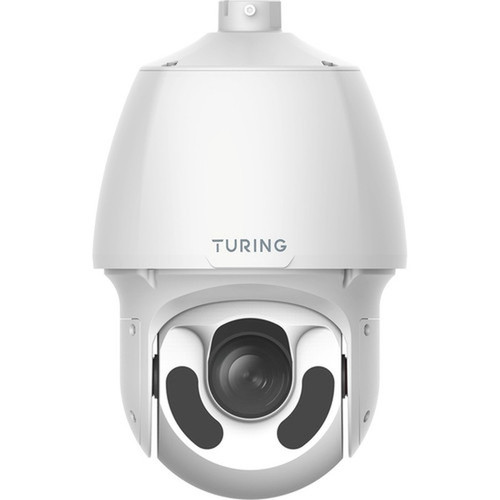

Turing Video TP-MPC4AV33 4MP Network PTZ Dome Camera - 33x Optical Zoom - 492 ft IR Night Vision - 2688 x 1520 - IP67 - IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the TP-MPC4AV33 utilizes a CMOS image sensor that provides 4-megapixel clarity while maintaining efficient power consumption. The varifocal lens offers a focal length range from 4.5 mm to 148.5 mm, giving installers precise control over the field of view, which adjusts from 65.2° wide to 2.7° narrow. The lens features a fast f/1.5 maximum aperture for superior low-light performance.
Video encoding leverages modern codecs including Ultra 265, H.265, H.264, and Motion JPEG, optimizing bandwidth and storage usage without sacrificing detail. The camera supports remote management over its wired Ethernet connection (RJ-45) and can record locally to a memory card for flexible storage options.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This camera stands out with its combination of long-range infrared illumination, mechanical robustness, and intelligent video analytics. The 492-foot infrared night vision ensures visibility in complete darkness, while the IP67/IK10 ratings guarantee resistance to dust, water jets, and significant physical impact.
Advanced Imaging Features
Includes Wide Dynamic Range (WDR), digital defog, backlight compensation, and 2D/3D digital noise reduction to maintain image quality in high-contrast, foggy, or low-light scenarios.
- Wide Dynamic Range
- Digital Defog
- Back Light Compensation
- 2D/3D Noise Reduction
Smart Surveillance Analytics
Built-in analytics enable automated monitoring with auto-tracking for moving subjects, vehicle detection, audio detection, and privacy masking for sensitive areas.
- Auto Tracking
- Vehicle Detection
- Audio Detection
- Privacy Masking
Deployment / Use Cases
The TP-MPC4AV33 is ideal for perimeter security, large outdoor areas, parking lots, and industrial sites where long-range identification and all-weather durability are critical. Its PTZ (Pan-Tilt-Zoom) capability and 33x zoom allow a single camera to cover expansive zones, reducing the total number of units required for comprehensive coverage.
Common installations include mounting on walls, poles, parapets, or junction boxes across campuses, transportation hubs, utility facilities, and commercial properties. The camera operates reliably in extreme temperatures from -40°F to 158°F and up to 95% humidity, making it suitable for harsh environments.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Housed in a dome form factor measuring 15.10" in height and 8.90" in diameter, this camera presents a discreet yet substantial profile. Weighing approximately 11.64 lb, its construction is built to withstand vandalism and severe weather. The dome design helps protect the lens and deter tampering while supporting multiple mounting orientations for flexible installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 15.10" (383.54 mm), 11.64 lb (5280 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 15.10" (383.54 mm)
- Weight
- 11.64 lb (5280 g)
- Length
- 4.5 mm (0.18")
Highlights
- 4-megapixel resolution (2688 x 1520) for detailed surveillance footage
- 33x optical zoom with varifocal lens for flexible field-of-view adjustment
- Infrared night vision effective up to 492 ft (150 m) in total darkness
- IP67 and IK10 ratings for dust, water, and impact resistance
- Supports Ultra 265, H.265, H.264, and Motion JPEG video compression
- Wide Dynamic Range (WDR) and digital defog for challenging lighting
- Built-in analytics: auto-tracking, vehicle detection, and audio detection
- Operates from -40°F to 158°F and up to 95% humidity
- Multiple mounting options: wall, junction box, pole, and parapet
- Wired Ethernet connectivity with remote management capabilities
Specifications
| Specifications | |
|---|---|
| Manufacturer | Turing Video |
| Manufacturer Part Number | TP-MPC4AV33 |
| Brand Name | Turing Video |
| Product Line | Smart |
| Product Model | TP-MPC4AV33 |
| Product Name | TP-MPC4AV33 4MP WDR TwilightVision Network PTZ Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 492.13 ft (150 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H: 53.0°~2.3°, V: 31.0°~1.3°, O: 65.2°~2.7° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | Ultra 265,H.265,H.264,Motion JPEG |
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.5 mm (0.18") |
| Maximum Focal Length | 148.5 mm (5.85") |
| Lens Included | Yes |
| Minimum Aperture | f/4 |
| Maximum Aperture | f/1.5 |
| Optical Zoom | 33x |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC,24 V AC |
| Physical Characteristics | |
| Mount Type | Wall Mount,Junction Box Mount,Pole Mount,Parapet Mount |
| Form Factor | Dome |
| Height | 15.10" (383.54 mm) |
| Diameter | 8.90" (226.06 mm) |
| Weight (Approximate) | 11.64 lb (5280 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 158°F (70°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Surge Protection,Wide Dynamic Range,PTZ,Auto Tracking,Vehicle Detection,Privacy Masking,Automatic White Balance,2D Digital Noise Reduction (2DNR),3D Digital Noise Reduction,Highlight Compensation (HLC),Back Light Compensation (BLC),Digital Defog,Motion Detection,Audio Detection,Tampering Alarm,Password Protection,HTTPS Encryption |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67,IP66 |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
User Manual
FAQ
What is the maximum resolution and frame rate of this camera?
The Turing Video TP-MPC4AV33 captures video at a maximum resolution of 2688 x 1520 pixels, which is 4 megapixels. It records at up to 30 frames per second (fps), providing smooth, real-time video suitable for monitoring active scenes and enabling clear playback for identification purposes.
How far does the infrared night vision reach?
The camera's infrared night vision effectively illuminates subjects up to 492.13 feet (150 meters) in complete darkness. This long-range capability ensures reliable 24/7 surveillance for perimeter security, parking lots, and other large outdoor areas where lighting may be limited or absent.
What does the IP67 and IK10 rating mean for durability?
The IP67 rating indicates the camera is completely dust-tight and can withstand immersion in water up to 1 meter for 30 minutes. The IK10 rating signifies it can resist impacts of 20 joules, equivalent to a 5 kg mass dropped from 40 cm. Together, these ratings ensure robust protection against harsh weather, dust, water jets, and vandalism.
What types of video compression does the camera support?
This camera supports multiple video compression formats including Ultra 265, H.265, H.264, and Motion JPEG. These codecs help optimize bandwidth usage and storage efficiency, with Ultra 265 and H.265 offering significant savings over older standards while maintaining high image quality for network transmission and recording.
What power input does the camera require?
The TP-MPC4AV33 accepts input voltages of 12 V DC or 24 V AC, providing flexibility for different power supply setups commonly used in surveillance installations. This dual-voltage support allows integration with standard CCTV power supplies or PoE (Power over Ethernet) midspans if a compatible injector is used, though PoE is not natively listed.
Can this camera be used for automated surveillance?
Yes, it includes several smart analytics features for automated monitoring. These include auto-tracking to follow moving subjects, vehicle detection to identify cars and trucks, audio detection to trigger on sounds, and motion detection. These analytics reduce the need for constant manual monitoring and can trigger alerts or recordings based on specific events.
