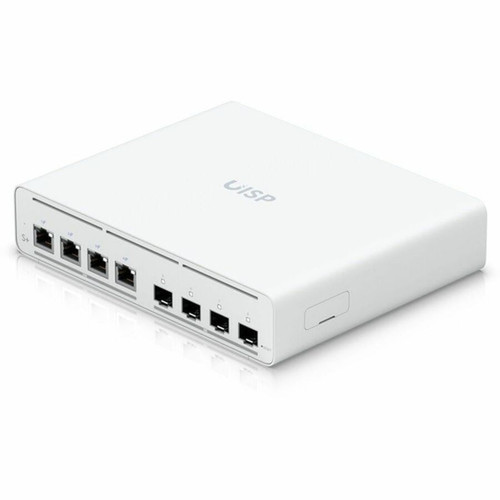

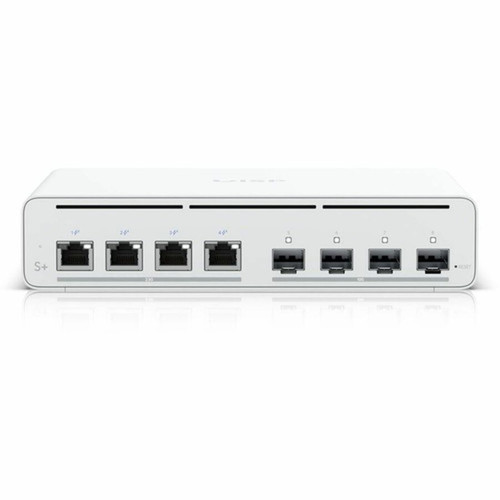

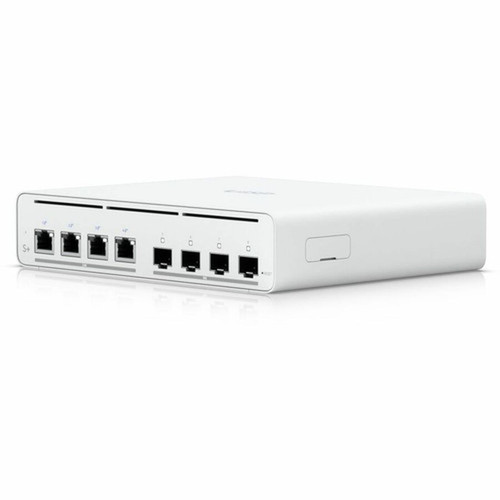

Ubiquiti UISP-S-PLUS UISP Switch Plus - 4 Ports 2.5G PoE - 4x SFP+ 10G Uplinks - 160W PoE Budget - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The UISP Switch Plus operates as a Layer 2 managed switch, providing advanced networking features including IGMP snooping, port mirroring, and spanning tree protocol for network optimization and stability. It supports both twisted pair and optical fiber media types, with network technologies of 2.5GBase-T and 10GBase-X ensuring compatibility with high-performance network equipment.
Power management is a key strength, with a 160W PoE budget distributed across the four 2.5G PoE ports. The switch accepts 24V DC or 28V DC input via the included power adapter, with typical power consumption of 25W. The construction uses galvanized cold rolled steel (SGCC), polycarbonate, and ABS materials for durability in various deployment environments.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This switch delivers balanced performance for growing networks through its combination of high-speed copper ports and fiber uplink capabilities. The 2.5G PoE ports provide both data connectivity and power delivery to compatible devices, while the SFP+ slots offer 10G connectivity for backbone connections or long-distance fiber runs.
High-Speed Port Flexibility
Four 2.5G PoE ports handle local device connections with power delivery, while four 10G SFP+ slots provide uplink capacity for network aggregation or fiber connectivity.
- 2.5GBase-T copper ports
- 10GBase-X SFP+ fiber slots
- Mixed media support
Robust Power Management
With 160W of PoE budget, the switch can power multiple PoE+ devices simultaneously while maintaining efficient 25W operational power consumption.
- 160W total PoE budget
- 24-28V DC input range
- Efficient power design
Deployment / Use Cases
The UISP Switch Plus is ideal for small to medium business networks, ISP edge deployments, and office environments requiring both high-speed connectivity and PoE capabilities. Its 1U form factor makes it suitable for standard rack installations in server rooms or network closets.
Common deployment scenarios include connecting PoE security cameras, access points, and VoIP phones through the 2.5G ports while using the SFP+ slots for uplinks to core switches or fiber connections between buildings. The wall-mount option provides flexibility for space-constrained installations such as retail environments or educational facilities.
Business Network Aggregation
Serve as an access layer switch connecting workstations and PoE devices while providing 10G uplinks to network core equipment.
ISP Customer Premises
Deploy at customer sites with fiber internet connections, using SFP+ for the WAN link and PoE ports for local device connectivity.
Physical Profile
The switch measures 1.72" (43.70 mm) in height, 8.28" (210.40 mm) in width, and 6.70" (170.20 mm) in depth, fitting standard 1U rack spaces. Its multi-mount design includes rack ears for 19" rack installation, wall-mount brackets, and desktop placement options. The 3.86 lb weight ensures stable mounting while remaining manageable for installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.72" (43.70 mm), 8.28" (210.40 mm), 6.70" (170.20 mm), 3.86 lb (1750 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 8.28" (210.40 mm)
- Depth
- 6.70" (170.20 mm)
- Height
- 1.72" (43.70 mm)
- Weight
- 3.86 lb (1750 g)
What's in the Box
The package includes the UISP Switch Plus unit with 1U rackmount or wall-mountable hardware and a 27V DC, 7.04A power adapter for immediate deployment.
Highlights
- 4 x 2.5 Gigabit Ethernet PoE ports for high-speed device connections with power delivery
- 4 x 10 Gigabit Ethernet SFP+ slots for fiber uplinks or high-bandwidth aggregation
- 160W total PoE budget to power multiple PoE+ devices simultaneously
- Layer 2 managed switch with IGMP snooping, port mirroring, and spanning tree features
- 1U rack-mountable design with desktop and wall-mount installation options
- Supports both twisted pair and optical fiber media types for flexible connectivity
- 25W typical power consumption for energy-efficient operation
- Galvanized steel and polycarbonate construction for durability in network environments
Specifications
| Specifications | |
|---|---|
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | UISP-S-Plus |
| Brand Name | Ubiquiti |
| Product Line | UISP |
| Product Name | UISP Switch Plus |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 4 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 4 x 2.5 Gigabit Ethernet PoE,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | 2.5 Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 2.5GBase-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 160 W |
| Input Voltage | 24 V DC,28 V DC |
| Power Source | Power Adapter |
| Power Consumption | 25 W |
| Physical Characteristics | |
| Product Material | Galvanized Cold Rolled Steel (SGCC),Polycarbonate,ABS |
| Compatible Rack Unit | 1U |
| Form Factor | Desktop,Wall Mountable,Rack-mountable |
| Height | 1.72" (43.70 mm) |
| Width | 8.28" (210.40 mm) |
| Depth | 6.70" (170.20 mm) |
| Weight (Approximate) | 3.86 lb (1750 g) |
| Miscellaneous | |
| Package Contents | UISP Switch Plus 1U Rackmount or Wall-mountable 27V DC, 7.04A Power Adapter |
FAQ
How many PoE ports does this switch have and what is the total PoE budget?
The Ubiquiti UISP Switch Plus has four 2.5 Gigabit Ethernet ports that all support Power over Ethernet. The total PoE budget is 160 watts, which can be distributed across these four ports to power compatible devices such as access points, security cameras, or VoIP phones. This provides substantial power capacity for most small to medium deployment scenarios.
What types of uplink connections are available on this switch?
This switch includes four SFP+ slots that support 10 Gigabit Ethernet connections. These slots accept SFP+ transceivers for either fiber optic or copper connections, allowing for 10G uplinks to other switches, routers, or network core equipment. The SFP+ slots use the 10GBase-X network technology standard for high-speed data transmission.
Is this a managed switch and what Layer does it support?
Yes, the UISP Switch Plus is a managed Layer 2 switch. It provides a complete set of Layer 2 management features including IGMP snooping for multicast traffic optimization, port mirroring for network monitoring and troubleshooting, and spanning tree protocol for network loop prevention. These management capabilities make it suitable for business networks requiring traffic control and network optimization.
What are the physical dimensions and mounting options for this switch?
The switch measures 1.72 inches in height, 8.28 inches in width, and 6.70 inches in depth, with a weight of approximately 3.86 pounds. It supports three mounting configurations: standard 1U rack-mount using included rack ears, wall-mount using the provided hardware, or desktop placement. The 1U height makes it compatible with standard 19-inch rack systems.
What power input does this switch require and what is included?
The switch operates on 24V DC or 28V DC input and includes a 27V DC, 7.04A power adapter in the package. This external power supply provides the necessary power for both switch operation and PoE delivery to connected devices. The switch itself has a typical power consumption of 25 watts during normal operation.
Can this switch connect to both copper and fiber network connections?
Yes, the UISP Switch Plus supports both copper and fiber connections. The four RJ-45 ports handle copper twisted pair connections at 2.5G speeds, while the four SFP+ slots accept fiber optic transceivers for 10G connections. This dual-media support allows the switch to connect to a variety of network equipment and span longer distances using fiber optic cables when needed.
