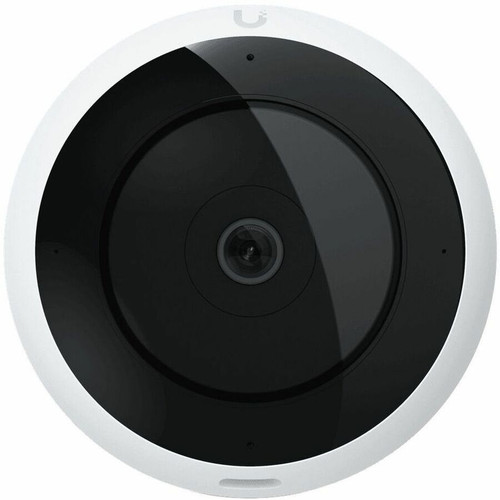

Ubiquiti UVC-AI-360-W UniFi 5MP Fisheye Network Camera - 360° View - 1920 x 1920 - 30fps - Indoor/Outdoor - Color - 29. 53 ft Night Vision
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the UVC-AI-360-W utilizes a CMOS image sensor that balances power efficiency with high-quality video output. The 360° field of view eliminates blind spots, while the fisheye lens distortion can be corrected via software for standard viewing angles. Video is captured in 5-megapixel resolution, providing ample detail for identification and forensic analysis.
Network connectivity is handled through a standard RJ-45 port, supporting Power over Ethernet (PoE) for simplified installation. The camera accepts input voltages from 37V to 57V DC, with a maximum power draw of 8.64 watts. Integrated audio capabilities include a built-in microphone and speaker for two-way communication.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This camera stands out with its all-in-one surveillance design, combining wide-area coverage, robust construction, and intelligent features in a single unit.
Complete Area Monitoring
The 360° fisheye lens provides a single-camera solution for monitoring large spaces like warehouses, lobbies, or parking lots, reducing the need for multiple devices and simplifying installation.
- Eliminates blind spots
- Reduces hardware count
- Simplifies wiring
Advanced Detection Capabilities
Built-in AI analytics enable human and vehicle detection, reducing false alarms and focusing recording on relevant events. The light sensor automatically adjusts to changing conditions.
- Human detection
- Vehicle detection
- Automatic light adjustment
Rugged Outdoor Readiness
With IPX4 water resistance and IK08 impact protection, this camera withstands rain, dust, and physical tampering. It operates reliably in temperatures from -4°F to 104°F.
- Weather resistant
- Vandal resistant
- Wide temperature range
Deployment / Use Cases
The UVC-AI-360-W is versatile enough for various security scenarios where comprehensive visual coverage and durability are paramount. Its 360° view makes it particularly effective in open-plan environments.
In retail settings, it can monitor entire store floors from a central ceiling mount, capturing customer traffic patterns and deterring theft. For corporate offices, it provides lobby or conference room surveillance without the clutter of multiple cameras. Industrial applications benefit from its rugged design in warehouses or loading docks, where it withstands environmental challenges while providing full-area visibility.
Retail Store Monitoring
Ceiling-mounted in retail spaces to oversee sales floors, entrances, and cash registers with a single device, supporting loss prevention and customer behavior analysis.
Corporate Security
Installed in office lobbies, hallways, or shared spaces to monitor access points and common areas, integrating with existing UniFi network systems for centralized management.
Physical Profile
The camera features a compact fisheye form factor with a 5.79-inch (147 mm) diameter and weighs approximately 1.44 pounds (655 grams). Its surface mount design allows for flexible installation on ceilings or walls, and the durable aluminum alloy and polycarbonate construction ensures long-term reliability in exposed locations. The integrated LED indicator provides clear operational status at a glance.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.44 lb (655 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.44 lb (655 g)
Highlights
- 5-megapixel resolution for detailed 1920x1920 video at 30fps
- 360° fisheye lens provides complete area coverage in a single camera
- Infrared night vision illuminates up to 29.53 ft (9 m) in darkness
- IPX4 and IK08 rated for weather and vandal resistance
- Power over Ethernet (PoE) support simplifies installation
- Built-in human and vehicle detection reduces false alerts
- Integrated microphone and speaker for two-way audio
- Operates in temperatures from -4°F to 104°F (-20°C to 40°C)
- CMOS sensor delivers power-efficient HD video
- Remote management via UniFi network controller
Specifications
| Specifications | |
|---|---|
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | UVC-AI-360-W |
| Brand Name | Ubiquiti |
| Product Line | UniFi |
| Product Name | UniFi Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 29.53 ft (9 m) |
| Night Vision Type | Infrared |
| Infrared (IR) Cut-off Filter | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 360° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Maximum Video Resolution | 1920 x 1920 |
| Maximum Frame Rate | 30 fps |
| Audio | |
| Audio Support | Yes |
| Network & Communication | |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 8.64 W |
| Input Voltage | 48 V DC,37 V DC,57 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Product Material | Aluminum Alloy,Polycarbonate |
| Mount Type | Surface Mount |
| Form Factor | Fisheye |
| Durability | Weather Resistant,Vandal Resistant |
| Diameter | 5.79" (147 mm) |
| Weight (Approximate) | 1.44 lb (655 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Built-in Microphone,Built-in Speaker,Human Detection,Vehicle Detection,LED Indicator,Light Sensor,PTZ |
| Indoor/Outdoor | Indoor/Outdoor |
| Impact Protection Rating | IK08 |
| Ingress Protection Rating | IPX4 |
FAQ
What is the field of view of this Ubiquiti camera?
The UVC-AI-360-W features a 360° field of view through its fisheye lens, providing complete circular coverage from a single mounting point. This eliminates blind spots and allows monitoring of large areas like entire rooms or outdoor spaces without needing multiple cameras.
How far does the night vision reach?
The infrared night vision effectively illuminates subjects up to 29.53 feet (9 meters) away. It uses infrared LEDs with an automatic IR cut-off filter to switch between color daytime imaging and monochrome night vision, ensuring clear surveillance around the clock.
Is this camera suitable for outdoor use?
Yes, this is an indoor/outdoor camera with IPX4 ingress protection against water splashes and IK08 impact resistance. It operates reliably in temperatures from -4°F to 104°F (-20°C to 40°C) and up to 90% humidity, making it durable for exposed locations like building exteriors or covered outdoor areas.
What power options does it support?
The camera supports Power over Ethernet (PoE) via its RJ-45 network port, accepting 48V DC power from compatible switches or injectors. It also works with standard DC power sources between 37V and 57V DC, with a maximum consumption of 8.64 watts for energy-efficient operation.
Does it include audio capabilities?
Yes, it features built-in microphone and speaker for two-way audio communication. This allows for listening to ambient sounds and speaking through the camera, useful for intercom-like functions or verbal warnings in security applications.
What intelligent detection features are included?
The camera includes AI-powered human and vehicle detection, which analyzes video to identify these specific objects and reduce false alarms from irrelevant motion. It also has a light sensor for automatic exposure adjustment and PTZ (pan-tilt-zoom) functionality via digital cropping of the 360° view.
What display size or resolution is listed?
It features a display specification of 5 Megapixel, giving you clear visuals for work and media use.
