Product Features
Technical Overview
This camera utilizes a 1/2.4" CMOS image sensor that balances power efficiency with high-definition video quality. The sensor supports full-color imaging and includes advanced features like white balance, 2D/3D noise reduction, and event detection for improved accuracy in varying lighting conditions.
Network connectivity is handled through a wired Fast Ethernet (RJ-45) port, which also supports Power over Ethernet (PoE) for simplified installation. The camera accepts 36-57 V DC input, offering flexibility with PoE switches or dedicated DC power adapters. Remote management capabilities allow administrators to configure, monitor, and review footage through Ubiquiti's UniFi ecosystem.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
Enhanced Low-Light Performance
Infrared LEDs provide clear monochrome imaging up to 65.62 feet (20 meters) in total darkness, ensuring continuous surveillance coverage day and night without requiring ambient light.
- Infrared night vision
- 65.62 ft effective range
- AI-powered detection reduces false alerts
Durable, Discreet Design
The white polycarbonate and aluminum alloy dome is both tamper-resistant and vandal-resistant (IK06 rated), offering physical protection while maintaining a low visual profile on ceilings.
- Tamper and vandal resistant
- White dome blends with interiors
- Surface mount installation
Efficient Power and Connectivity
PoE support allows single-cable deployment for both power and data, reducing installation complexity. The camera's maximum 4.20 W power draw minimizes energy costs and heat output.
- PoE and DC power options
- 4.20 W max consumption
- Fast Ethernet for reliable streaming
Deployment / Use Cases
The G5 Dome Ultra is designed for indoor environments where discreet, continuous monitoring is required. Its wide field of view and 2K resolution make it suitable for covering medium to large areas such as retail store floors, hotel lobbies, school corridors, and office common areas.
The camera's tamper-resistant dome and IK06 impact rating provide an added layer of security in publicly accessible spaces where equipment might be subject to intentional damage. The PoE capability simplifies deployment in new or existing network infrastructures, allowing installers to leverage existing Ethernet cabling for both power and data transmission.
Retail and Hospitality Surveillance
Monitor point-of-sale areas, entrances, and lobbies with clear 2K video. The discreet dome design maintains aesthetics while providing evidence-grade footage for loss prevention and safety incidents.
Office and Institutional Security
Deploy in hallways, reception areas, or secure zones to oversee access and activity. Remote management enables IT or security teams to review footage and configure alerts without onsite visits.
Physical Profile

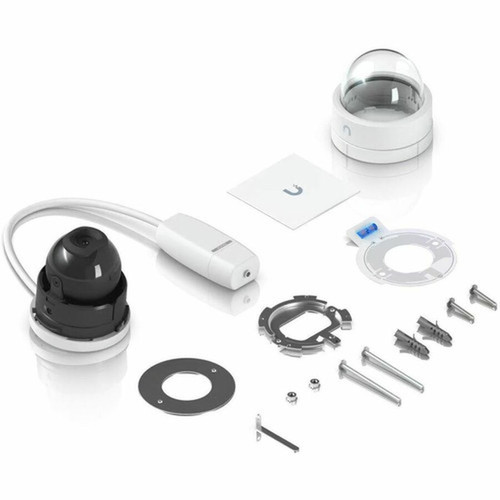

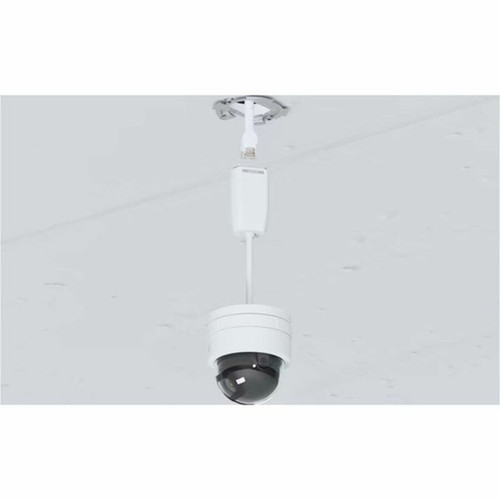

The camera features a compact dome form factor with a 2.50-inch (63.60 mm) diameter and weighs approximately 6.17 ounces (175 grams). Its white finish matches common ceiling colors for subtle integration. The surface mount design includes hardware for secure attachment to ceilings or walls, and the dome's shape helps conceal the lens direction for added discretion.
Operating temperature ranges from -4°F to 104°F (-20°C to 40°C) with humidity tolerance from 10% to 90% non-condensing, supporting stable performance in climate-controlled indoor spaces.
- Weight
- 6.17 oz (175 g)
Highlights
- 4-megapixel CMOS sensor delivers 2K video at 2688 x 1512 resolution
- Infrared night vision covers distances up to 65.62 feet (20 meters)
- Wide 120.6° diagonal field of view for broad area coverage
- PoE and DC power options for flexible installation
- Tamper-resistant and vandal-resistant dome housing (IK06 rated)
- AI-powered features include event detection and noise reduction
- Remote management via Ubiquiti UniFi ecosystem
- Low 4.20 W power consumption for energy efficiency
- Fixed lens requires no adjustment after installation
- Operating temperature range: -4°F to 104°F (-20°C to 40°C)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | UVC-G5-Dome-Ultra |
| Brand Name | Ubiquiti |
| Product Line | UniFi |
| Product Model | G5 |
| Product Name | G5 Dome Ultra |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 2K |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft (20 m) |
| Night Vision Type | Infrared |
| AI-powered | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.4" |
| Color Supported | Color |
| Field of View | H: 102.4°, V: 54.9°, D: 120.6° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Maximum Video Resolution | 2688 x 1512 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 4.20 W |
| Input Voltage | 36 V DC,57 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Aluminum Alloy,Polycarbonate |
| Mount Type | Surface Mount |
| Form Factor | Dome |
| Durability | Tamper Resistant,Vandal Resistant |
| Diameter | 2.50" (63.60 mm) |
| Weight (Approximate) | 6.17 oz (175 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Humidity (Non-condensing) | 10% |
| Maximum Operating Humidity (Non-condensing) | 90% |
| Miscellaneous | |
| Features | White Balance,2D Noise Reduction,3D Noise Reduction,Noise Reduction,Event Detection |
| Indoor/Outdoor | Indoor |
| Impact Protection Rating | IK06 |
FAQ
What is the video resolution of this Ubiquiti camera?
The Ubiquiti UniFi G5 Dome Ultra captures video at a maximum resolution of 2688 x 1512, which is considered 2K quality. This 4-megapixel sensor provides detailed imagery suitable for identifying faces, license plates, and other critical details in surveillance footage.
How far does the night vision reach?
The camera's infrared night vision effectively illuminates scenes up to 65.62 feet (20 meters) in total darkness. This range allows for clear monochrome imaging in low-light or no-light conditions, ensuring continuous monitoring capability around the clock.
Does this camera support Power over Ethernet (PoE)?
Yes, the G5 Dome Ultra supports both PoE and DC power. It accepts 36-57 V DC input via the Ethernet cable, enabling single-cable deployment for power and data. This simplifies installation by reducing the need for separate power outlets near each camera.
What is the field of view for this dome camera?
The camera offers a wide field of view: 102.4° horizontally, 54.9° vertically, and 120.6° diagonally. This broad coverage is ideal for monitoring open areas like retail floors, lobbies, or hallways with a single camera, reducing the total number of units needed for full coverage.
Is the camera suitable for outdoor use?
No, this model is designed for indoor use only. Its operating temperature range is -4°F to 104°F (-20°C to 40°C), and it lacks weatherproofing ratings required for outdoor exposure. For outdoor surveillance, consider Ubiquiti's weather-rated dome or bullet camera models.
What durability features does the dome housing provide?
The dome is constructed from aluminum alloy and polycarbonate, rated IK06 for impact resistance. It is both tamper-resistant and vandal-resistant, helping to deter physical tampering or damage in publicly accessible areas. The low-profile design also helps conceal the camera's direction for added security.
What display size or resolution is listed?
It features a display specification of 4 Megapixel, giving you clear visuals for work and media use.
