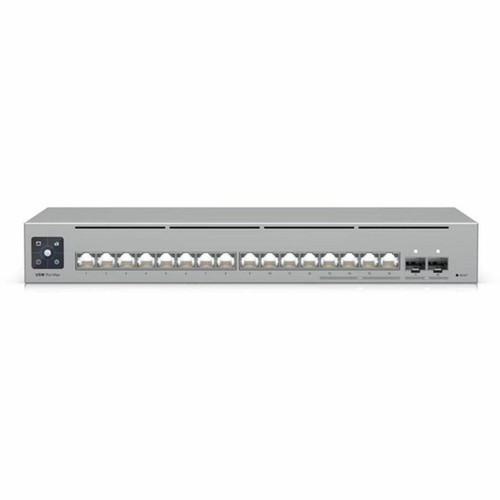

Ubiquiti USW-PRO-MAX-16 Pro Max Layer 3 Managed Switch - 16 Ports - 12x Gigabit - 4 x 2.5GbE - 2 x 10GbE SFP+ - Fanless Desktop/Wall Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch supports a maximum data transfer rate of 1.25 GB/s across its ports, ensuring efficient handling of data-intensive applications. It is compatible with both twisted pair (copper) and optical fiber media, allowing for deployment flexibility over various distances. The fanless operation contributes to silent performance, ideal for noise-sensitive environments like offices or retail spaces.
The switch is built with galvanized cold-rolled steel (SGCC) construction, providing durability and effective heat dissipation. It supports key networking standards including IEEE 802.1x for port-based network access control, enhancing security in managed network environments.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Port/Expansion Slot Details. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The USW-PRO-MAX-16 delivers several distinct advantages for network administrators and IT managers. Its hybrid port configuration allows seamless integration of legacy Gigabit devices alongside newer 2.5GbE equipment, while the 10GbE SFP+ uplinks future-proof your network backbone.
Flexible Deployment Options
The switch supports both desktop placement and wall mounting, with included mounting accessories. Its compact dimensions (1.72" H × 12.80" W × 6.30" D) make it suitable for space-constrained installations.
- Desktop or wall mountable
- Compact footprint
- Included mounting hardware
Enterprise-Grade Management
As a fully manageable Layer 3 switch, it provides advanced features for network optimization and security. Administrators can implement VLANs, QoS policies, and access controls through a comprehensive management interface.
- Layer 3 routing capabilities
- VLAN support
- 802.1x authentication
Deployment / Use Cases
This switch is particularly well-suited for small to medium business networks where a balance of port density, speed tiers, and management capabilities is required. Its 2.5GbE ports make it ideal for connecting modern workstations, NAS devices, or access points that benefit from speeds beyond standard Gigabit Ethernet.
The dual 10GbE SFP+ uplinks enable high-speed connections to core switches, servers, or storage arrays, preventing bottlenecks in aggregated traffic scenarios. The fanless design makes it appropriate for office environments, classrooms, or retail locations where silent operation is preferred.
Office Network Core
Serve as the central switching point for an office network, connecting computers, printers, phones, and wireless access points with appropriate speed tiers for each device type.
Edge Distribution Switch
Deploy at network edge locations to aggregate connections from multiple devices and provide high-speed uplinks back to the main network infrastructure via fiber or DAC cables.
Physical Profile
The switch measures 1.72 inches in height (1U equivalent), 12.80 inches in width, and 6.30 inches in depth, with a weight of approximately 4.30 pounds. Its low-profile design allows for flexible placement options, whether on a desktop, mounted on a wall, or installed in a shallow network cabinet. The galvanized steel chassis provides robust protection while aiding in passive cooling.
- Width
- 12.80" (325.10 mm)
- Depth
- 6.30" (160 mm)
- Height
- 1.72" (43.70 mm)
- Weight
- 4.30 lb (1950 g)
What's in the Box
The package includes all necessary components for immediate deployment of the switch in your network environment.
Highlights
- 16 total network ports with mixed speed capabilities
- 12 Gigabit Ethernet ports for standard devices
- 4 × 2.5 Gigabit Ethernet ports for higher-speed connections
- 2 × 10 Gigabit Ethernet SFP+ uplink slots
- Layer 3 managed switching with advanced features
- Fanless design for silent operation
- Desktop or wall-mountable form factor
- Galvanized steel construction for durability
- IEEE 802.1x support for network access control
- 25W power consumption for energy efficiency
Specifications
| Specifications | |
|---|---|
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | USW-PRO-MAX-16 |
| Brand Name | Ubiquiti |
| Product Line | Pro Max |
| Product Name | Pro Max Layer 3 Switch |
| Product Type | Layer 3 Switch |
| Technical Information | |
| Features | Reset Button,Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 16 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 12 x Gigabit Ethernet RJ-45 Network Port,4 x 2.5 Gigabit Ethernet RJ-45 Network Port,2 x 10 Gigabit Ethernet SFP+ Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,2.5 Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 1000Base-T,10GBase-X,2.5GBase-T |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1x |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Input Voltage | 5 V |
| Power Source | Power Adapter |
| Power Consumption | 25 W |
| Physical Characteristics | |
| Product Material | Galvanized Cold Rolled Steel (SGCC) |
| Form Factor | Desktop,Wall Mountable |
| Height | 1.72" (43.70 mm) |
| Width | 12.80" (325.10 mm) |
| Depth | 6.30" (160 mm) |
| Weight (Approximate) | 4.30 lb (1950 g) |
| Miscellaneous | |
| Package Contents | Pro Max Layer 3 Switch Power Adapter Cable Mounting Accessories |
FAQ
What are the exact port configurations on this Ubiquiti switch?
The USW-PRO-MAX-16 provides 16 total network ports: 12 standard Gigabit Ethernet RJ-45 ports, 4 enhanced 2.5 Gigabit Ethernet RJ-45 ports, and 2 SFP+ slots that support 10 Gigabit Ethernet connections. This hybrid configuration allows you to connect a variety of devices at appropriate speed tiers while providing high-speed uplink options.
Does this switch support Power over Ethernet (PoE)?
No, this specific model does not provide Power over Ethernet capabilities. It is a non-PoE switch designed for data connectivity only. If you require PoE to power devices like access points or IP phones, you would need to consider a different model in Ubiquiti's lineup that includes PoE support.
What does Layer 3 switching capability provide?
Layer 3 switching enables the device to perform basic routing functions between VLANs and IP subnets without requiring a separate router. This allows for more efficient network segmentation, improved traffic management between departments or zones, and reduced latency for inter-VLAN communication compared to traditional router-on-a-stick configurations.
Can I use fiber optic connections with this switch?
Yes, the two SFP+ slots support fiber optic transceivers for 10 Gigabit Ethernet connections. You can use appropriate SFP+ modules to connect via single-mode or multi-mode fiber, enabling longer distance connections (up to kilometers with single-mode) between switches or to servers/storage devices in different locations.
What are the physical dimensions and mounting options?
The switch measures 1.72" high × 12.80" wide × 6.30" deep (43.70 × 325.10 × 160 mm) and weighs approximately 4.30 pounds (1950 g). It supports both desktop placement and wall mounting, with the necessary hardware included in the package. The compact size makes it suitable for space-constrained installations.
How is this switch managed and configured?
As a fully manageable switch, it can be configured through a web interface, command line interface (CLI), or network management software. It supports standard management protocols and offers features like VLAN configuration, QoS settings, port monitoring, and IEEE 802.1x authentication for secure network access control.
