Ubiquiti USW-Pro-XG-8-PoE Pro XG 8-Port Managed Switch - 10GbE PoE++ - 155W Budget - 2 SFP+ Uplinks - Layer 3
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 3, providing advanced routing capabilities for scalable network design and segmentation. The 10GbE ports support both 10GBase-T for copper cabling up to 100 meters and 10GBase-X for fiber optic connections, ensuring compatibility with existing and future network infrastructure.
Two SFP+ expansion slots offer flexible uplink options for connecting to core switches or aggregating traffic from multiple switches. The switch includes comprehensive management features such as Access Control Lists, VLAN support, Quality of Service, IGMP snooping, and port mirroring for network optimization and security.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Port/Expansion Slot Details. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The USW-Pro-XG-8-PoE combines enterprise-grade features with a compact footprint, making it ideal for organizations needing high-speed connectivity without the complexity of larger chassis-based switches.
High-Density PoE Power
With 155W of PoE++ budget distributed across eight ports, this switch can simultaneously power multiple high-performance devices while maintaining full 10GbE data throughput.
- Supports PoE++ devices
- Efficient power distribution
- No separate power injectors needed
Advanced Network Control
Layer 3 capabilities enable inter-VLAN routing, policy-based routing, and dynamic routing protocols for complex network architectures.
- VLAN routing support
- QoS for traffic prioritization
- ACL for security policies
Dual Media Flexibility
Support for both twisted pair and optical fiber connections allows network architects to choose the most cost-effective or performance-appropriate media for each connection.
- Copper for short runs
- Fiber for long distances
- Mixed media environments
Deployment / Use Cases
This switch excels in environments requiring high-bandwidth connectivity with power delivery capabilities. Its compact size and versatile mounting options make it suitable for space-constrained locations where traditional rack-mounted switches would be impractical.
Common deployment scenarios include connecting high-performance workstations in creative or engineering departments, aggregating traffic from multiple access points in wireless networks, and serving as the core switch for small to medium office networks requiring advanced routing features.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Port/Expansion Slot Details. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
High-Performance Workgroup
Connect multiple 10GbE workstations, NAS devices, and servers in media production, engineering, or data analysis teams where large file transfers are routine.
Power-Over-Ethernet Aggregation
Deploy as a central switch for powering and connecting multiple PoE++ devices such as high-end access points, PTZ cameras, and digital signage displays.
Physical Profile
Constructed from SGCC steel and polycarbonate, the switch offers durability in various deployment environments. The compact dimensions of 1.72" x 8.28" x 6.84" and weight of 3.53 pounds make it suitable for desktop placement, wall mounting, or installation in shallow network cabinets. The small footprint conserves valuable space while providing full 10GbE switching capabilities.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.72" (43.70 mm), 8.28" (210.40 mm), 6.84" (173.80 mm), 3.53 lb (1600 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 8.28" (210.40 mm)
- Depth
- 6.84" (173.80 mm)
- Height
- 1.72" (43.70 mm)
- Weight
- 3.53 lb (1600 g)

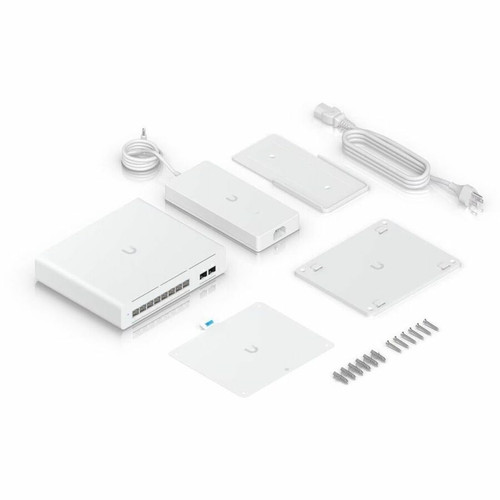

What's in the Box
The package includes everything needed for immediate deployment of the switch in your network environment.
Package contents include USW-Pro-XG-8-PoE Ethernet Switch AC/DC Adapter, USW-Pro-XG-8-PoE Ethernet Switch. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights

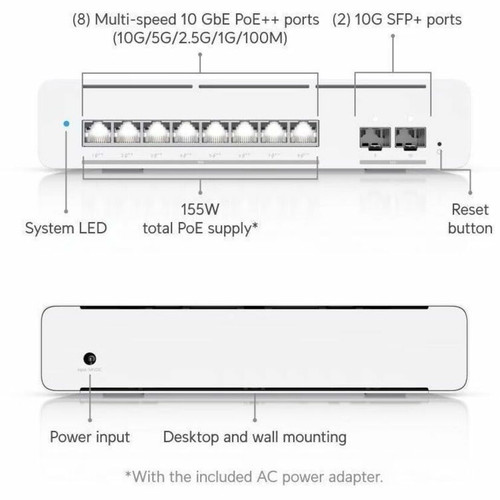

- 8 x 10GbE PoE++ ports with 155W total budget
- Layer 3 routing capabilities for scalable networks
- 2 x SFP+ expansion slots for fiber uplinks
- Compact desktop form factor with wall-mount options
- Supports both twisted pair and optical fiber media
- Advanced management features including VLAN and QoS
- 10GBase-T and 10GBase-X network technology support
- Maximum data transfer rate of 1.25 GB/s
- IEEE 802.1x networking standards compliance
- Constructed from durable SGCC steel and polycarbonate
Specifications
| Specifications | |
|---|---|
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | USW-Pro-XG-8-PoE |
| Brand Name | Ubiquiti |
| Product Line | Pro XG |
| Product Model | USW-Pro-XG-8-PoE |
| Product Name | USW-Pro-XG-8-PoE Ethernet Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Access Control List,IGMP Snooping,Flow Control,Port Mirroring,Virtual LAN (VLAN),Loop Protection,Reset Button,DHCP Relay,DHCP Snooping,Quality of Service (QoS),LED Indicator |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x 10 Gigabit Ethernet PoE++,2 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-T,10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1x |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 155 W |
| Input Voltage | 50 V DC,57 V DC |
| Power Source | AC/DC |
| Power Consumption | 210 W |
| Physical Characteristics | |
| Product Material | SGCC Steel,Polycarbonate |
| Form Factor | Desktop,Wall Mountable,Compact |
| Height | 1.72" (43.70 mm) |
| Width | 8.28" (210.40 mm) |
| Depth | 6.84" (173.80 mm) |
| Weight (Approximate) | 3.53 lb (1600 g) |
| Miscellaneous | |
| Package Contents | USW-Pro-XG-8-PoE Ethernet Switch AC/DC Adapter |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
User Manual
FAQ
What is the total PoE budget of this switch?
The Ubiquiti USW-Pro-XG-8-PoE provides a total PoE budget of 155 watts. This power is distributed across all eight 10GbE ports, supporting PoE++ devices that require higher power delivery than standard PoE or PoE+ equipment. The substantial budget allows simultaneous operation of multiple high-power devices such as advanced wireless access points, pan-tilt-zoom cameras, or digital signage displays.
How many SFP+ uplink ports does this switch have?
This switch includes two SFP+ expansion slots for uplink connections. These slots support 10 Gigabit Ethernet fiber optic transceivers, providing flexible connectivity options for linking to core switches or creating fiber backbone connections. The SFP+ slots complement the eight built-in 10GBase-T copper ports, offering media flexibility for different network segments and distance requirements.
What Layer does this switch support?
The USW-Pro-XG-8-PoE operates at Layer 3, providing routing capabilities beyond basic Layer 2 switching. Layer 3 support enables inter-VLAN routing, policy-based routing, and dynamic routing protocols for more complex network architectures. This makes the switch suitable for segmenting networks, implementing security policies between subnets, and building scalable network designs without requiring separate routers for basic routing functions.
What types of network cables are supported?
This switch supports both twisted pair copper cables and optical fiber connections. The eight RJ-45 ports work with standard Category 6A or better twisted pair cables for 10GBase-T connections up to 100 meters. The two SFP+ slots accept fiber optic transceivers for 10GBase-X connections, supporting both multi-mode and single-mode fiber for longer distance requirements beyond what copper cabling can achieve.
Can this switch be wall-mounted?
Yes, the USW-Pro-XG-8-PoE supports multiple mounting options including desktop placement, wall mounting, and installation in compact network enclosures. The switch features a form factor specifically designed for flexible deployment outside traditional wiring closets. Wall mounting kits or brackets may be available separately to secure the switch in locations where desktop space is limited or where vertical installation is preferred for cable management.
What management features are included?
This managed switch includes comprehensive network management capabilities such as Access Control Lists for security policies, Virtual LAN support for network segmentation, Quality of Service for traffic prioritization, IGMP snooping for multicast optimization, port mirroring for network monitoring, and loop protection for network stability. These features provide granular control over network traffic, security, and performance for business environments requiring advanced network administration.
