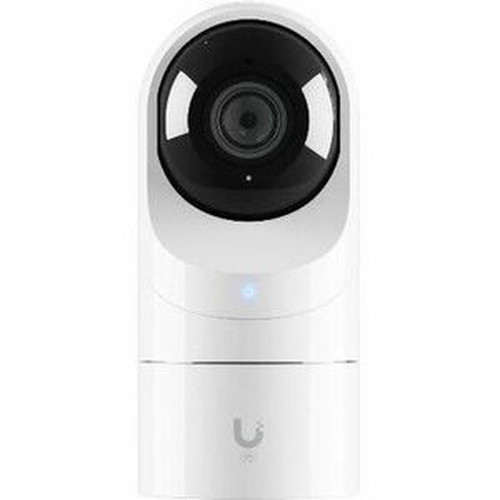

Ubiquiti UVC-G5-Flex 5MP Indoor/Outdoor Network Camera - Color - 2688 x 1512 - 19.69 ft Night Vision - H. 264 - Fast Ethernet - PoE/DC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera utilizes a fixed lens and a CMOS sensor that provides 5-megapixel effective resolution. Video is encoded using the efficient H.264 format, balancing quality with bandwidth usage. The camera features built-in infrared LEDs that enable night vision up to 19.69 ft (6 m), with a removable IR cut-off filter to optimize daytime color accuracy.
Connectivity is wired via Fast Ethernet (RJ-45), supporting remote management for centralized control. Power can be supplied through Power over Ethernet (PoE) or direct DC input (37-57 V DC), offering installation flexibility. The camera includes advanced imaging features such as white balance, 2D and 3D digital noise reduction, motion detection, and privacy masking to enhance surveillance effectiveness.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The UVC-G5-Flex combines high-resolution imaging with robust construction for dependable surveillance in diverse settings. Its 5MP resolution captures fine details, while the 30 fps frame rate ensures smooth video playback for accurate monitoring. The camera's infrared night vision extends visibility to 19.69 ft, maintaining security around the clock.
Flexible Power Options
Supports both PoE and DC power inputs, simplifying installation in locations with or without PoE switches and reducing cable clutter.
- PoE compliant
- 37-57 V DC input range
- Single-cable solution available
Wide Environmental Tolerance
Rated for indoor and outdoor use with IPX4 weather resistance and operation from -4°F to 104°F, ensuring reliability in harsh conditions.
- IPX4 rated
- IK04 impact protection
- Broad temperature range
Comprehensive Mounting Kit
Includes mounts for table, ceiling, desk, pole, and hard-ceiling installations, providing versatile placement options without additional purchases.
- Five mount types included
- Quick installation
- Adaptable to various surfaces
Deployment / Use Cases
This camera is ideal for small to medium business security, retail monitoring, and residential surveillance where high-definition video and night vision are required. Its indoor/outdoor durability makes it suitable for entryways, parking lots, warehouses, and perimeter security, providing clear evidence capture in all lighting conditions.
The flexible mounting options allow installation on ceilings, walls, desks, or poles, adapting to both covert and overt security needs. With PoE support, it integrates seamlessly into existing network infrastructure, reducing installation time and costs. The camera's remote management capability enables centralized monitoring from a single interface, streamlining security operations.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The camera features a compact cylindrical design with a 1.89" (48 mm) diameter and lightweight 6 oz (170 g) construction. Its small footprint allows discreet placement while the included multiple mounts support secure attachment to various surfaces. The weather-resistant housing with IPX4 rating protects against water splashes, making it suitable for both indoor and sheltered outdoor locations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6 oz (170 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 6 oz (170 g)
What's in the Box
The package includes all necessary components for immediate deployment.
Package contents include G5 Flex Network Camera Desktop Mount Wall Mount Pole Mount Hard-ceiling Mount, G5 Flex Network Camera. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 5-megapixel resolution (2688 x 1512) for detailed surveillance footage
- Infrared night vision up to 19.69 ft (6 m) for 24/7 monitoring
- H.264 video encoding for efficient bandwidth usage
- Indoor/outdoor rated with IPX4 weather resistance and IK04 impact protection
- Flexible power via PoE or DC input (37-57 V DC)
- Fast Ethernet connectivity with remote management capability
- Wide 120.6° diagonal field of view for comprehensive coverage
- Includes five mounting options for versatile installation
- CMOS sensor with color support and 30 fps frame rate
- Operates in temperatures from -4°F to 104°F (-20°C to 40°C)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | UVC-G5-Flex |
| Brand Name | Ubiquiti |
| Product Series | G5 |
| Product Model | UVC-G5-Flex |
| Product Name | G5 Flex Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 19.69 ft (6 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H: 102.4°, V: 54.9°, D: 120.6° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.264 |
| Maximum Video Resolution | 2688 x 1512 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 37 V DC,57 V DC |
| Power Source Type | PoE,DC |
| Physical Characteristics | |
| Mount Type | Table Mount,Ceiling Mount,Desk Mount,Pole Mount |
| Durability | Weather Resistant,Weather Proof |
| Diameter | 1.89" (48 mm) |
| Weight (Approximate) | 6 oz (170 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Miscellaneous | |
| Features | Built-in IR LED,Removable IR Cut-off Filter,White Balance,2D Digital Noise Reduction (2DNR),3D Digital Noise Reduction,Noise Reduction,Motion Detection,Privacy Masking |
| Indoor/Outdoor | Indoor/Outdoor |
| Package Contents | G5 Flex Network Camera Desktop Mount Wall Mount Pole Mount Hard-ceiling Mount |
| Impact Protection Rating | IK04 |
| Ingress Protection Rating | IPX4 |
FAQ
What resolution does the Ubiquiti UVC-G5-Flex camera record at?
The camera records at 5 megapixel resolution, specifically 2688 x 1512 pixels. This high-definition resolution provides detailed video footage suitable for identifying faces, license plates, and other important details in surveillance scenarios. The 30 frames per second frame rate ensures smooth video playback without motion blur.
How far does the night vision reach on this network camera?
The infrared night vision effectively covers distances up to 19.69 feet (6 meters). The camera uses built-in IR LEDs to illuminate dark areas, allowing it to capture clear monochrome footage in complete darkness. A removable IR cut-off filter automatically switches between day and night modes to optimize image quality.
Can this camera be used outdoors?
Yes, the UVC-G5-Flex is rated for both indoor and outdoor use. It features IPX4 weather resistance, which protects against water splashes from any direction, and IK04 impact protection against mechanical impacts. The camera operates reliably in temperatures ranging from -4°F to 104°F (-20°C to 40°C), making it suitable for various environmental conditions.
What power options are available for this camera?
The camera supports two power methods: Power over Ethernet (PoE) and direct DC input. When using PoE, a single Ethernet cable provides both data connectivity and power. Alternatively, you can use a DC power adapter with an input voltage range of 37 to 57 volts DC. This flexibility allows installation in locations with or without PoE network switches.
What mounting options are included with the camera?
The package includes five different mounting options: desktop mount, wall mount, pole mount, hard-ceiling mount, and the camera itself with its integrated mounting hardware. This comprehensive set allows installation on various surfaces including tables, walls, ceilings, and poles without requiring additional purchases. All necessary screws and brackets are included.
What video compression format does this camera use?
The camera uses H.264 video compression, which efficiently reduces file sizes while maintaining good image quality. This format minimizes bandwidth usage and storage requirements compared to uncompressed video, making it ideal for network transmission and extended recording periods. The compression maintains the 2688 x 1512 resolution at 30 fps.
