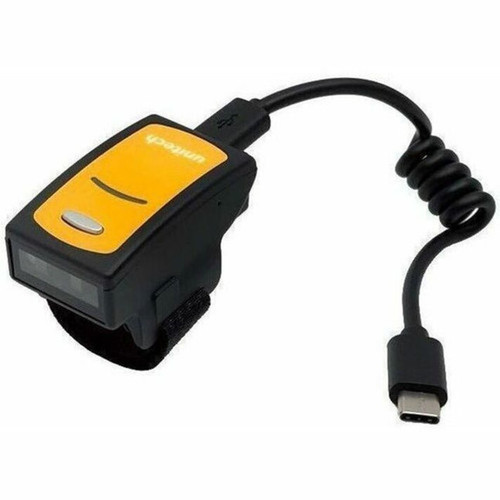

Unitech MS622-2UCB00-SG Wired 2D Ring Scanner - USB Cable Connectivity - 13. 58" Scan Distance - Gray
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- UPC-A/UPC-E
- EAN-8/EAN-13
- Industrial 2 of 5
- Codabar
- Matrix 2 of 5
- Code 11
- Code 93
- Code 32,
- Code 128
- Standard Code 39
- Full ASCII Code 39
- Interleaved 2 of 5
- China Postal Code
- MSI Plessey Code
- UK Plessey Code
- EAN/UCC 128
- Telepen Code
- IATA Code
- GS1 Databar
- QR Code
- Micro QR Code
- PDF417
- Data Matrix
- Aztec
- 1.5M onto concrete (scanner only)
- MS622 Wired 2D Ring Scanner
- Ring Strap
- USB Cable
- This product is warranted against defects in workmanship and materials for a period of fifteen months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Barcode Symbology Supported:
1D:
2D:
Light Source: LED
Image Sensor Type: Imager
Scan Mode: Trigger
Scan Pattern: Area
Scanning Distance: 13.58" (345 mm)
Cable Type Included: USB
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Maximum Ambient Light: 100000 lux
Drop Specification:
Minimum Print Contrast: 40%
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Minimum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Minimum Element Resolution (PDF417): 6.67 mil (0.17 mm)
Image Sensor Resolution: 640 x 480
Air Electrostatic Discharge (+/-): 8kV
Contact Electrostatic Discharge (+/-): 4kV
Features: Vibration,Notification LED,Ergonomic Design
Host Interface: USB
Operating Temperature: -4°F (-20°C) to 131°F (55°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 0% to 95%
Form Factor: Wearable
Rugged: Yes
Color Family: Dual Color
Product Color: Gray,Yellow
Durability: Dust Resistant,Water Resistant,Shock Resistant
Weight (Approximate): 0.49 oz (14 g)
Package Contents:
Ingress Protection (IP) Rating: IP42
Application/Usage: Retail,Warehouse,Hospitality,Transportation,Pharmacy
TAA Compliant: Yes
Limited Warranty: 15 Month
Additional Warranty Information:
- Laser-free design provides high-performance scanning without the risk of eye injury
- Perfect for applications that require direct association with a workstation or a notebook
[custom-specifications]
| Specifications | |
| Manufacturer | Unitech Electronics Co., Ltd |
| Manufacturer Part Number | MS622-2UCB00-SG |
| Manufacturer Website Address | http://www.ute.com |
| Brand Name | Unitech |
| Product Model | MS622 |
| Product Name | MS622 Wired 2D Ring Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D:
2D:
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Mode | Trigger |
| Scan Pattern | Area |
| Scanning Distance | 13.58" (345 mm) |
| Cable Type Included | USB |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification |
|
| Minimum Print Contrast | 40% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 6.67 mil (0.17 mm) |
| Image Sensor Resolution | 640 x 480 |
| Air Electrostatic Discharge (+/-) | 8kV |
| Contact Electrostatic Discharge (+/-) | 4kV |
| Features | Vibration,Notification LED,Ergonomic Design |
| Interfaces/Ports | |
| Host Interface | USB |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 131°F (55°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Wearable |
| Rugged | Yes |
| Color Family | Dual Color |
| Product Color | Gray,Yellow |
| Durability | Dust Resistant,Water Resistant,Shock Resistant |
| Weight (Approximate) | 0.49 oz (14 g) |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP42 |
| Application/Usage | Retail,Warehouse,Hospitality,Transportation,Pharmacy |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 15 Month |
| Additional Warranty Information |
|
