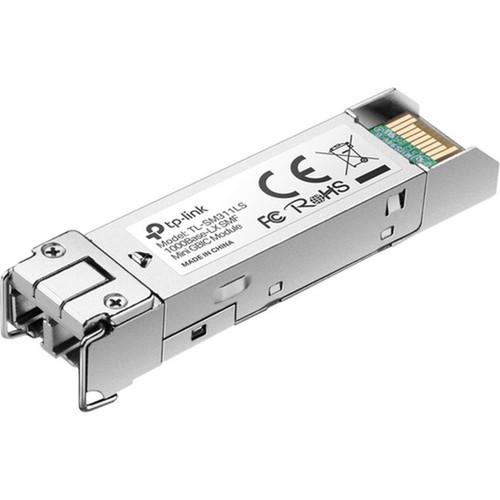

TP-LINK TL-SM311LS SFP Module - 1. 25GbE 1000Base-LX Single-Mode Fiber - LC/UPC - 20km Reach - Hot-Swappable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP module operates at a 1310nm wavelength and is built for the 1000Base-LX Ethernet standard, ensuring interoperability within Gigabit Ethernet networks. The single LC/UPC port facilitates a duplex connection over single-mode fiber, which is ideal for long-distance, high-bandwidth applications where signal integrity over extended runs is critical.
The module's design emphasizes operational simplicity and reliability. It is hot-swappable, enabling installation or replacement while the host device is powered on, which minimizes network downtime. The internal electronics are calibrated for single-mode fiber, optimizing performance for the 9/125µm fiber core diameter commonly used in backbone and campus network links.
Key Product Advantages
The TL-SM311LS provides a cost-effective and dependable solution for integrating fiber optic segments into copper-based networks or extending existing fiber backbones. Its compatibility with a broad range of TP-Link switches and media converters ensures seamless deployment within TP-Link ecosystems.
Extended Reach Capability
Supports links up to 20 kilometers, enabling connectivity between geographically separated buildings or across large campuses without signal degradation.
- Ideal for backbone and long-haul connections
- Maintains signal integrity over distance
Broad TP-Link Compatibility
Engineered to work with TP-Link JetStream managed switches, smart switches, and media converters like the MC220L, ensuring reliable performance within certified environments.
- Verified for TP-Link SFP ports
- Supports media converter applications
Deployment / Use Cases
This SFP module is suited for scenarios requiring reliable, high-speed fiber connectivity over medium to long distances. It acts as a critical interface between network switches and fiber optic cabling.
Common applications include connecting network switches between different floors or buildings in an enterprise campus, linking a media converter to extend a network over fiber, or integrating into internet service provider (ISP) access networks. It is particularly valuable in environments where electromagnetic interference, distance, or security concerns make copper cabling impractical.
What's in the Box
The package includes the SFP module and an installation guide to assist with proper handling and setup.
Highlights
- Hot-swappable SFP (mini-GBIC) form factor for easy installation and maintenance.
- 1000Base-LX standard for 1.25 Gigabit Ethernet over single-mode fiber.
- LC/UPC duplex connector for reliable optical fiber interfacing.
- 1310nm wavelength operation optimized for single-mode transmission.
- Maximum reach of 20 kilometers (12.4 miles) over 9/125µm fiber.
- Full-duplex operation for simultaneous bidirectional data flow.
- Compatible with TP-Link switches (JetStream series, TL-SG, TL-SL models) and MC220L media converter.
- Includes protective dust plugs to safeguard optical interfaces during handling and storage.
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TL-SM311LS |
| Brand Name | TP-Link |
| Product Model | TL-SM311LS |
| Product Name | MiniGBIC Module |
| Product Type | SFP (mini-GBIC) |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC/UPC |
| Interfaces/Ports Details | 1 x LC/UPC Duplex 1000Base-LX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 1.25 Gigabit Ethernet |
| Network Technology | 1000Base-LX |
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Miscellaneous | |
| Package Contents | MiniGBIC Module Installation Guide |
| Compatibility | TP-Link MC220L Gigabit Ethernet Media Converter TP-Link Switches: T3700G-28TQ TL-SG5412F TL-SG5428 TL-SL5428E TL-SG3210 TL-SG3216 TL-SG3424 TL-SG3424P TL-SL3428 TL-SL3452 TL-SG2210P TL-SG2216 TL-SG2424 TL-SG2424P TL-SG2452 TL-SL2210 TL-SL2218 TL-SL2428 TL-SL2452 |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
FAQ
What type of fiber cable is required for this SFP module?
The TL-SM311LS is designed for use with single-mode fiber optic cables. Specifically, it requires 9/125µm core/cladding diameter single-mode fiber with LC/UPC connectors to achieve its rated performance and maximum transmission distance of 20 kilometers.
What is the maximum data rate and transmission distance supported?
This module supports a data rate of 1.25 Gigabits per second, corresponding to the 1000Base-LX Gigabit Ethernet standard. It can transmit data over single-mode fiber for distances up to 20 kilometers (approximately 12.4 miles), making it suitable for long-distance network links between buildings or across campuses.
Is this SFP module hot-swappable?
Yes, the TL-SM311LS features a hot-swappable form factor. This allows you to install or remove the module from a compatible switch or media converter without powering down the host device, facilitating maintenance and upgrades with minimal network disruption.
Which TP-Link devices is this module compatible with?
It is compatible with TP-Link networking equipment that features SFP ports. This includes specific models of JetStream managed switches, smart switches (such as the TL-SG and TL-SL series), and the MC220L Gigabit Ethernet Media Converter. Always verify compatibility with your specific device model before purchase.
