Product Features
Overview

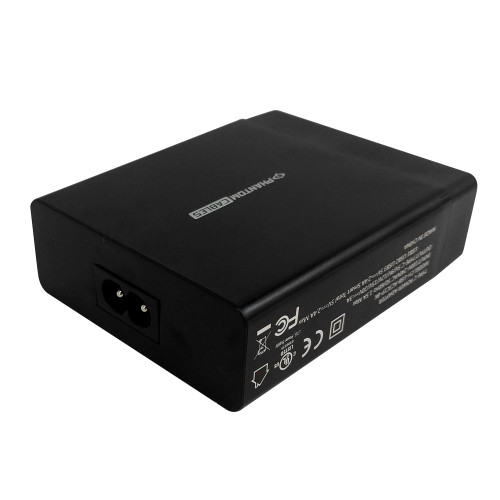

This USBwall charger consists of a USB Type-C female and 3x USB A female connectors on one end and a 5-15P plug on the other end. It is used to charge smart phones, notebooks or tablets (such as MacBook, Chromebook, iPhone, iPad, Samsung, LG, HTC and Android devices).
The USB-C port supports USB Power Delivery charging technology which is designed to charge compatible Type-C laptops, notebooks, tablets and phones at a maximum output of 72 watts.
 |
Power Delivery for smartphones, tablets and notebooks
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Molding | Industrial-Grade Plastic Outer Shell |
| Dimensions | Depth 91mm (3.58") Width 27.5mm (1.08") Height 75mm (2.95") |
| Operating Temperature | 0~40℃ |
| Performance | |
| Input | 100-240VAC 50/60Hz 1.5A Max |
| USB-A Output | 5V/2.4A, with intelligent IC detect output requirements of your device automatically |
| USB-C Output |
5V/3A, 9V/3A, 12V/3A or 20V/3A power for USB-Csupported devices |
| Total Maximum Power | 72 Watts |
| AC Leakage Current |
5mA Max |
| Overload Protection | Yes |
| Over Current Protection | Yes |
| Over Voltage Protection | Yes |
| Short Circuit Protection | Yes |
| Ripple and Noise | ?200mV |
| Efficiency | ?81.39% |
| Turn on delay time |
3s Max |
| Rise time |
20ms |
| Connector(s) | |
| Connector A | USB Type-C Female |
| Connector B |
3x USB A Female |
| Connector C | 1-15P Male |
| Approvals | |
| c(UL)us |
Yes |
| CE | Yes |
| FCC | Yes |
| Compliance | Compliant with IEC, EN and UL60950 Standards |
| Environmental | |
| RoHS | Yes |
| Warranty Information |
|
| Warranty |
1 Year |
| Packaging Information | |
| Package Quantity | 1 - Main Unit 1 - 4ft Power Cord |
| Product Weight | 0.63 lbs [0.28kg] |
