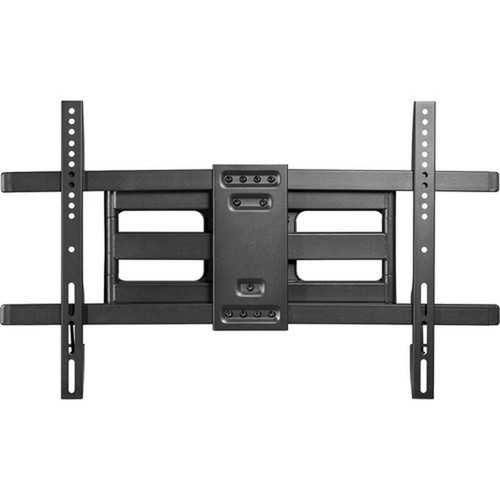

V7 WM1FM80 Full-Motion TV Wall Mount - 37" to 80" Screen Support - 132lb/60kg Load - 200 x 200 to 600 x 400 VESA - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

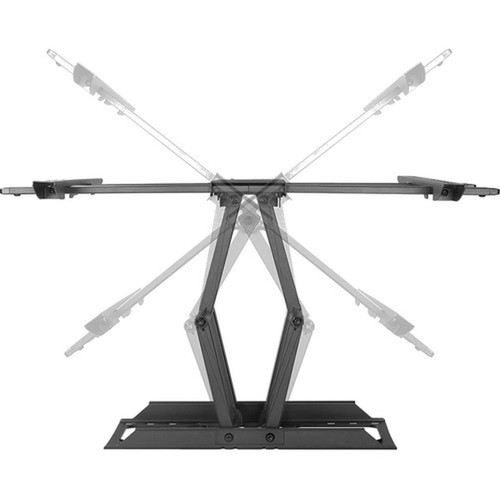

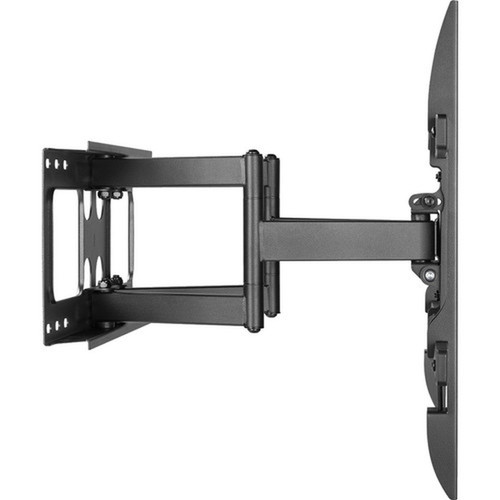

This wall mount delivers precise mechanical adjustment through a cantilever arm system that extends from 58mm to 402mm (2.3" to 15.8") from the wall. The tilt mechanism offers a range from -15° to +5°, while the swivel function provides ±60° of horizontal rotation. These adjustments enable users to reduce glare, improve ergonomics, and achieve the ideal viewing angle for different seating arrangements.
Compatibility is broad, with support for VESA mounting patterns including 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, and 600x400. This covers most flat-panel TVs and commercial displays on the market. The mount's steel frame ensures durability, and its compact design minimizes the footprint when retracted against the wall.
Key Product Advantages

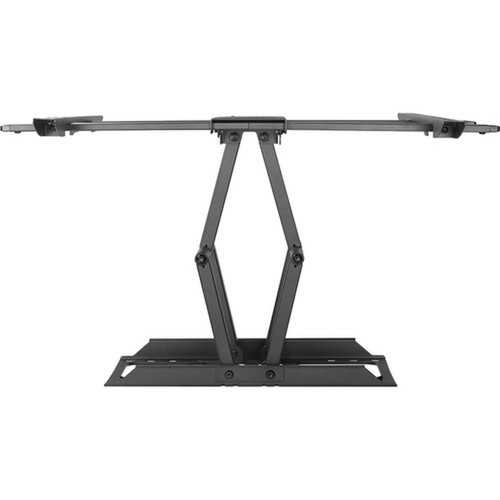

The WM1FM80 stands out for its combination of high weight capacity, extensive VESA compatibility, and smooth full-motion adjustment. Its dual cantilever arms provide sturdy support for large screens while allowing easy access to ports and connections when extended.
Wide Compatibility
Supports seven common VESA patterns and screen sizes from 37 to 80 inches, making it versatile for upgrading or replacing mounts across different TV models.
- 200x200 to 600x400 VESA
- 37" to 80" screen range
Adjustable Viewing
Offers tilt and swivel adjustments to optimize viewing angles, reduce reflections, and accommodate multiple seating positions in a room.
- -15° to +5° tilt
- ±60° swivel
Durable Build
Constructed from steel with a black finish, ensuring long-term reliability and a clean appearance that blends with most decor styles.
- Heavy-duty steel
- Integrated cable management
Deployment / Use Cases
This full-motion wall mount is ideal for settings where screen positioning flexibility enhances functionality. In living rooms or home theaters, it allows viewers to adjust the TV for different seating areas or to minimize window glare. The extension capability also makes it easier to connect cables or access rear ports without removing the display.
In commercial environments like conference rooms, retail displays, or waiting areas, the WM1FM80 enables precise alignment for presentations or advertising. Its high weight capacity and sturdy construction ensure secure mounting for larger, premium displays, while the swivel feature facilitates interactive or multi-directional viewing.
Physical Profile
The mount measures 16.90 inches in height, 28 inches in width, and 15.80 inches in depth when installed, with a weight of 11.46 pounds. Its black steel finish offers a low-profile look that complements most displays. When retracted, the mount sits close to the wall, saving space and maintaining a streamlined appearance. The adjustable extension allows the screen to be pulled forward as needed, providing flexibility without permanent protrusion.
- Width
- 28" (711.20 mm)
- Height
- 16.90" (429.26 mm)
- Weight
- 11.46 lb (5200 g)
- Length
- 15.80" (401.32 mm)
What's in the Box
The package includes all necessary components for installation and use.
Highlights
- Supports TVs and displays from 37" to 80" screen size
- Holds up to 132 lb (60 kg) maximum load capacity
- Full-motion design with tilt (-15° to +5°) and swivel (±60°) adjustment
- Compatible with VESA patterns 200x200 to 600x400
- Dual cantilever arms extend 2.3" to 15.8" from wall
- Heavy-duty steel construction with black finish
- Includes integrated cable management system
- Backed by a 5-year limited warranty
- RoHS compliant for environmental safety
- Compact dimensions: 16.9"H x 28"W x 15.8"D
Specifications
| Specifications | |
|---|---|
| Manufacturer | V7 |
| Manufacturer Part Number | WM1FM80 |
| Brand Name | V7 |
| Product Model | WM1FM80 |
| Product Name | Heavy Duty Full-Motion TV Wall Mount up to 80in |
| Product Type | Wall Mount |
| Product Information | |
| Device Supported | TV,Display |
| Number of Displays Supported | 1 |
| Maximum Load Capacity | 132 lb (59874.19 g) |
| Minimum Screen Size Supported | 37" (939.80 mm) |
| Maximum Screen Size Supported | 80" (2032 mm) |
| Features | Full Motion,Heavy Duty,Tilt,60° Swivel,Compact,Cantilever,Cable Management |
| Minimum Tilt Angle | -15° |
| Maximum Tilt Angle | 5° |
| Minimum Swivel Angle | -60° |
| Maximum Swivel Angle | 60° |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 600 x 400,200 x 200,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400 |
| Form Factor | Wall Mountable |
| Height | 16.90" (429.26 mm) |
| Width | 28" (711.20 mm) |
| Length | 15.80" (401.32 mm) |
| Weight (Approximate) | 11.46 lb (5200 g) |
| Miscellaneous | |
| Package Contents | Heavy Duty Full-Motion TV Wall Mount up to 80in Hardware Instruction Manual |
| Application/Usage | Room |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What screen sizes does the V7 WM1FM80 wall mount support?
The V7 WM1FM80 supports televisions and displays with screen sizes ranging from 37 inches to 80 inches diagonally. This broad range covers most mid-size to large flat-panel TVs, making it suitable for living rooms, offices, or commercial settings where screen size requirements may vary.
What is the maximum weight capacity of this wall mount?
This wall mount has a maximum load capacity of 132 pounds (60 kilograms). It is designed to securely hold heavier TVs and displays, including many premium models, thanks to its heavy-duty steel construction and dual cantilever arm design.
Which VESA mounting patterns are compatible with the WM1FM80?
The WM1FM80 is compatible with seven common VESA patterns: 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, and 600x400. This wide compatibility ensures it fits most TVs and commercial displays on the market, simplifying upgrades or replacements.
How much can the mount tilt and swivel?
The mount offers a tilt range from -15 degrees to +5 degrees, allowing for downward or upward adjustment to reduce glare or improve viewing angles. It also swivels ±60 degrees horizontally, enabling side-to-side rotation for flexible positioning in multi-viewer environments.
How far does the mount extend from the wall?
The dual cantilever arms extend from 58mm to 402mm (approximately 2.3 inches to 15.8 inches) from the wall. This extension provides access to rear ports, facilitates cable management, and allows for optimal viewing distance adjustments after installation.
What is included in the warranty for this wall mount?
The V7 WM1FM80 comes with a 5-year limited warranty, covering defects in materials and workmanship. This warranty provides long-term assurance for both residential and commercial users, reflecting the product's durable steel construction and reliable performance.
