Geist VP6N31A5 rPDU Monitored 12-Outlet PDU - 17. 20 kW - Three Phase - IEC 60309 3P+N+E (IP44) - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This rPDU operates with a 230 V AC input voltage, accepting a range from 200-240 V AC and 346-415 V AC, and delivers 240 V AC output. It handles 30 A input current at 60 Hz frequency, with built-in overcurrent and single-pole protection to safeguard connected equipment.
The unit includes both LED and touch screen displays for local status monitoring. Network management is comprehensive, supporting DHCP, HTTP, HTTPS, IPv4, IPv6, SNMP v1/v2c/v3, Syslog, SSH, and Modbus TCP protocols for integration into existing monitoring systems.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This monitored rPDU transforms basic power distribution into an intelligent infrastructure component. The combination of high power capacity, detailed monitoring capabilities, and flexible connectivity makes it ideal for environments where power visibility and control are critical.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Comprehensive Monitoring, High-Density Connectivity.
Comprehensive Monitoring
Monitor single- or three-phase voltage, frequency, and load levels remotely through standard network protocols, enabling proactive power management.
- Real-time load tracking
- Network-accessible data
- Multiple protocol support
High-Density Connectivity

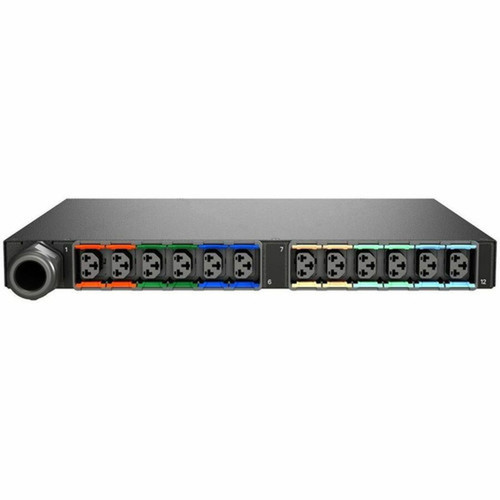

Twelve combination C13/C19 receptacles support both standard and high-power equipment connections in a compact rack-mountable form factor.
- Mixed receptacle types
- Space-efficient design
- IT equipment optimized
Deployment / Use Cases
This rPDU is designed for deployment in data centers, server rooms, and network closets where reliable, monitored power distribution is essential. Its 17.20 kW capacity and three-phase input make it suitable for supporting high-power computing equipment, storage arrays, and networking gear in enterprise environments.
The horizontal rack-mountable design with standard 19-inch rack compatibility ensures easy integration into existing infrastructure. The black powder coat finish provides durability in data center conditions, while the 10-foot power cord offers flexible placement options relative to power sources.
Data Center Power Distribution
Distribute and monitor power to server racks with precise load tracking and network-accessible data for capacity planning and optimization.
High-Density IT Environments
Support multiple high-power devices with the 12 combination outlets and 17.20 kW capacity, suitable for virtualization hosts and storage systems.
Physical Profile
The rPDU features a compact rack-mountable design measuring 1.72" (43.69 mm) in height, 17" (431.80 mm) in width, and 12" (304.80 mm) in depth. This horizontal orientation maximizes space efficiency in standard server racks while providing full front-access to all outlets and displays.
The black powder coat finish offers corrosion resistance and a professional appearance that blends with data center equipment. The unit operates reliably in temperatures up to 140°F (60°C), ensuring performance in typical server room environments.
- Width
- 17" (431.80 mm)
- Depth
- 12" (304.80 mm)
- Height
- 1.72" (43.69 mm)
- Length
- 10 ft (3.05 m)
Highlights
- Monitored PDU with 17.20 kW power capacity
- Three-phase input with 230 V AC operating voltage
- 12 combination C13/C19 receptacles for flexible connectivity
- IEC 60309 3P+N+E (IP44) input connector
- Network management via RJ-45 with multiple protocol support

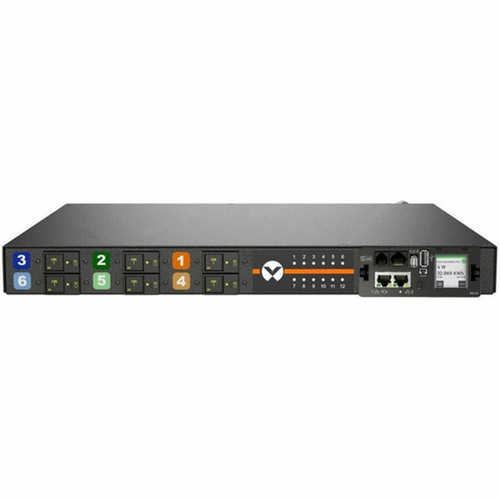

- LED and touch screen displays for local monitoring
- Rack-mountable horizontal design with black powder coat finish
- Overcurrent and single-pole protection for equipment safety
- 10-foot power cord for installation flexibility
- 5-year limited warranty with registration
Specifications
| Specifications | |
|---|---|
| Manufacturer | Vertiv |
| Manufacturer Part Number | VP6N31A5 |
| Brand Name | Vertiv Geist |
| Product Series | rPDU |
| Product Model | MNR5M1R6-12CF13-3PS56B0H10-S |
| Product Name | rPDU MNR5M1R6-12CF13-3PS56B0H10-S 12-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | IEC 60309 3P + N + E (IP44) |
| Plug/Connector Detail | 1 x IEC 60309 3P + N + E (IP44) |
| Receptacle Type | Combination C13/C19 |
| Receptacle Detail | 12 x Combination C13/C19 |
| Protection Type | Overcurrent Protection,Single Pole |
| Features | LED Display,Touch Screen Display |
| Load Capacity (Watt) | 17.20 kW |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC,346 V AC - 415 V AC |
| Output Voltage | 240 V AC |
| Power Rating (Watt) | 17.20 kW |
| Input Current | 30 A |
| Input Frequency | 60 Hz |
| Management | |
| Management | DHCP HTTP HTTPS IPv4 IPv6 LDAP NTP RADIUS RSTP SSH SMTP SNMP (v1/v2c/v3) Syslog TACACS+ Modbus TCP CSV datalog JSON API JSON datalog |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black Powder Coat |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Cord Length | 10 ft (3.05 m) |
| Height | 1.72" (43.69 mm) |
| Width | 17" (431.80 mm) |
| Depth | 12" (304.80 mm) |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Miscellaneous | |
| Application/Usage | IT Equipment |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
User Manual
FAQ
What is the power capacity of this Geist rPDU?
This rPDU has a 17.20 kW power rating, providing substantial capacity for distributing power to multiple high-density IT devices in data center or server room environments.
How many outlets does this PDU have and what types?
The unit features 12 combination C13/C19 receptacles, allowing connection of both standard and high-power equipment with C13 or C19 power cords as needed for your specific devices.
What input connector type does this PDU use?
It uses an IEC 60309 3P + N + E (IP44) connector, which is a three-phase industrial connector with neutral, earth, and IP44 weather protection suitable for data center power infrastructure.
What monitoring capabilities does this rPDU offer?
As a monitored PDU, it provides remote tracking of single- or three-phase voltage, frequency, and load levels through network connectivity using protocols including SNMP, HTTP, and Modbus TCP for integration with monitoring systems.
Is this PDU rack-mountable and what are its dimensions?
Yes, it's designed for horizontal rack mounting with dimensions of 1.72" height, 17" width, and 12" depth, making it compatible with standard 19-inch server racks for space-efficient installation.
What warranty coverage does this Geist rPDU include?
The product comes with a 5-year limited warranty when registered within 120 days of purchase. Without registration, the warranty defaults to 3 years of coverage for manufacturing defects.
What power capacity is listed for this UPS?
The listed power specification is 17.20 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
