Geist VP5N21A1 Switched Rack PDU - 1U - 20A - 120V - 12 NEMA 5-20R Outlets - NEMA L5-20P Plug - 1. 9kW - Next-Gen IMD
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This single-phase switched PDU operates within a 100-120V AC input range, delivering consistent output voltage across the same range. The 1.9kW power rating supports demanding IT equipment loads while maintaining electrical safety and efficiency.
Network connectivity via RJ-45 enables comprehensive management through industry-standard protocols including DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP v1/v2c/v3, Syslog, and TACACS+. This protocol support ensures compatibility with existing network management systems and security frameworks.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The VP5N21A1 combines robust power distribution with intelligent monitoring capabilities that enhance data center operational efficiency. The next-generation IMD provides clear visibility into power consumption and environmental conditions at the rack level.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Enhanced Security Features, Reliability & Compliance.
Enhanced Security Features
Comprehensive protocol support including SNMP v3, SSH, and TACACS+ ensures secure communication and authentication for power management operations.
- Multi-protocol management interface
- Secure remote access capabilities
- Industry-standard authentication
Reliability & Compliance
Each unit undergoes individual testing and carries UL listing, TAA compliance, and RoHS certification for environmental responsibility.
- Individually tested units
- UL-Listed for safety
- TAA-Compliant for government use
Deployment / Use Cases
This switched rack PDU is engineered for deployment in standard 19-inch server racks within data centers, network closets, and telecommunications facilities. The 1U form factor maximizes rack space utilization while providing essential power distribution and management capabilities.
Ideal for environments requiring remote power management, the unit enables IT administrators to reboot unresponsive servers, network switches, or storage devices without physical access to the equipment. This reduces downtime and minimizes the need for on-site technical visits during off-hours or emergency situations.
Data Center Power Management
Monitor power consumption at the rack level and remotely control outlets to manage equipment power cycles during maintenance or troubleshooting procedures.
High-Density Server Environments
Distribute 1.9kW of power across 12 outlets to support multiple servers, switches, and storage devices in compact 1U rack spaces.
Physical Profile
The black PDU features a horizontal mounting orientation with standard rack-mount ears for secure installation in 19-inch racks. With dimensions of 1.72 inches high, 17 inches wide, and 12 inches deep, the unit occupies minimal rack depth while providing full front-to-back power distribution. The 10-foot power cord offers flexible placement options within the rack environment.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 17" (431.80 mm), 12" (304.80 mm), 10 lb (4535.92 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17" (431.80 mm)
- Depth
- 12" (304.80 mm)
- Height
- 1U
- Weight
- 10 lb (4535.92 g)
- Length
- 10 ft (3.05 m)
Highlights
- Switched rack PDU with remote outlet control for power cycling equipment
- 12 NEMA 5-20R outlets with 20A/120V NEMA L5-20P input connection
- 1.9kW power capacity in compact 1U rack-mount form factor

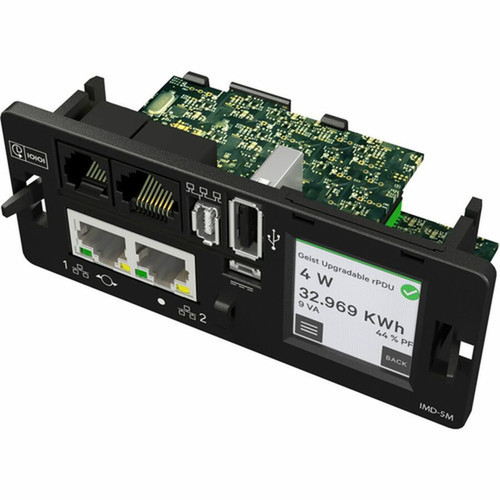

- Next-generation intelligent monitoring display with 128x128 LCD touchscreen
- Comprehensive network management via DHCP, HTTP, HTTPS, SNMP, SSH, and more
- Enhanced security features with support for SNMP v3, TACACS+, and secure protocols
- Individually tested, UL-Listed, TAA-Compliant, and RoHS certified
- 5-year limited warranty (3-year default, 5-year with registration within 120 days)
- Made in the United States with environmentally responsible manufacturing
- 10-foot power cord for flexible rack placement and installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Vertiv |
| Manufacturer Part Number | VP5N21A1 |
| Brand Name | Vertiv Geist |
| Product Line | Geist Upgradeable |
| Product Series | N |
| Product Model | MNS3E1R5-12S203-2TL5A0H10-S |
| Product Name | GU VP5N21A1 PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Switched |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L5-20P |
| Plug/Connector Detail | 1 x NEMA L5-20P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 12 x NEMA 5-20R |
| Features | LCD Display,Touch Screen Display |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 120 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Power Rating (Watt) | 1.90 kW |
| Input Current | 20 A |
| Management | |
| Management | DHCP HTTP HTTPS IPv4 IPv6 LDAP NTP RADIUS RSTP SSH SMTP SNMP (v1/v2c/v3) Syslog TACACS+ |
| Remote Outlet Switching | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Form Factor | Rack |
| Rack Height | 1U |
| Cord Length | 10 ft (3.05 m) |
| Height | 1.72" (43.69 mm) |
| Width | 17" (431.80 mm) |
| Depth | 12" (304.80 mm) |
| Weight (Approximate) | 10 lb (4535.92 g) |
| Miscellaneous | |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
User Manual
FAQ
What type of power input does this PDU require?
The VP5N21A1 requires a 20A, 120V AC power source with a NEMA L5-20P plug connection. It operates within an input voltage range of 100-120V AC, making it compatible with standard North American commercial power circuits.
How many devices can I connect to this PDU?
This PDU provides 12 NEMA 5-20R outlets, allowing you to connect up to 12 devices simultaneously. The total connected load should not exceed the 1.9kW (1900W) power rating to ensure safe operation and prevent circuit overload.
What rack space does this PDU occupy?
The unit occupies 1U (1.72 inches) of vertical rack space with dimensions of 17 inches wide by 12 inches deep. It's designed for horizontal mounting in standard 19-inch server racks and includes a 10-foot power cord for flexible installation.
Can I remotely control individual outlets on this PDU?
Yes, this is a switched PDU that supports remote outlet switching. Through the network management interface, you can individually power cycle each of the 12 outlets to reboot unresponsive equipment without physical access to the rack.
What management protocols does this PDU support?
The PDU supports comprehensive management protocols including DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP v1/v2c/v3, Syslog, and TACACS+. This ensures compatibility with most network management systems and provides secure communication options.
What certifications does this Vertiv Geist PDU carry?
The VP5N21A1 is UL-Listed for electrical safety, TAA-Compliant for government procurement, and RoHS certified for environmental responsibility. Each unit undergoes individual testing before shipment, and the product carries a 5-year limited warranty when registered within 120 days of purchase.
What power capacity is listed for this UPS?
The listed power specification is 1.90 kW, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes Yes, which helps buyers understand how many connected devices it can support in its intended deployment.
