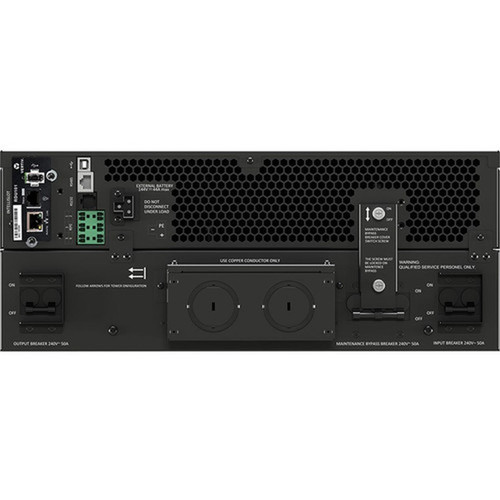

Liebert GXT5-5000MVRT4UXLN 5000VA/5000W 208/120V UPS - 4U Rack/Tower - Double Conversion Online - Pure Sine Wave
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This UPS employs double conversion online technology with zero transfer time, providing complete isolation from utility power anomalies. The pure sine wave output ensures compatibility with sensitive electronic equipment, while user-selectable 208/120VAC output voltages accommodate diverse load requirements.
Advanced battery management features include hot-swappable, valve-regulated lead-acid batteries with replaceable design. The system supports one external battery cabinet, extending runtime to 12.5 minutes at full load and 33 minutes at half load for extended backup protection.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Transfer Time, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The GXT5 series combines robust power protection with intelligent management capabilities for modern IT environments. High power factor (0.9-1.0) design delivers more usable power from the same VA rating, allowing more equipment to be protected without oversizing the UPS.
Advanced Monitoring & Control
A full-color graphic LCD with gravity sensing provides clear status information in both rack and tower orientations. Multiple communication ports including serial, USB, and network (RJ-45) enable comprehensive remote management.
- LED/Full Color Graphic LCD Display
- Serial, USB, and Network Ports
- Optional RDU101 Network Card Support
Environmental Protection
Integrated environmental sensors monitor temperature, humidity, and potential water leaks, providing early warning of conditions that could impact equipment reliability or UPS performance.
- Leak Detection Sensor
- Temperature Sensor
- Humidity Sensor
Reliability & Serviceability
Hot-swappable batteries allow replacement without system shutdown, while comprehensive overload protection handles temporary power surges up to 150% of rated capacity.
- Hot Swappable Battery Design
- 105-150% Overload Protection
- 3-Year Warranty Including Battery
Deployment / Use Cases
The Liebert GXT5 5000VA UPS is engineered for environments where power quality and continuity are non-negotiable. Its 5 kVA capacity and dual voltage output make it ideal for protecting server racks, network closets, and critical IT systems in commercial and industrial settings.
Data center applications benefit from the double conversion online topology that completely isolates sensitive equipment from utility power disturbances. The rack/tower flexibility allows deployment in both dedicated server rooms and office environments where floor space is at a premium.
Server Room & Data Center Protection
Protect rack-mounted servers, storage arrays, and networking equipment with clean, continuous power. The 4U form factor fits standard server racks while providing 5 kVA of protection capacity.
Critical Infrastructure Support
Mission-critical equipment including medical devices, industrial controls, and telecommunications systems benefit from the pure sine wave output and zero transfer time protection.
Physical Profile
The UPS measures 6.80" (172.72 mm) in height, 16.90" (429.26 mm) in width, and 25.60" (650.24 mm) in depth, occupying 4U of rack space. At 125.60 lb (56971.20 g), the unit includes integrated handles and mounting hardware for secure installation. The rack/tower convertible design includes a tower stand for floor deployment and 4-post fixed rail kit for rack mounting.
- Width
- 16.90" (429.26 mm)
- Depth
- 25.60" (650.24 mm)
- Height
- 6.80" (172.72 mm)
- Weight
- 125.60 lb (56971.20 g)
What's in the Box
The package includes all necessary components for immediate deployment in either rack or tower configuration.
Highlights
- 5000VA/5000W double conversion online UPS with pure sine wave output
- 4U rack/tower convertible design with included mounting hardware
- 208 V AC input with 208/120 V AC user-selectable output voltages
- 4.5 minutes runtime at full load, extendable with external battery cabinet
- Hot-swappable, valve-regulated lead-acid batteries for easy maintenance
- Full-color graphic LCD with gravity sensing for clear status monitoring
- Serial, USB, and network communication ports for remote management
- Energy Star 2.0 certified with up to 95% operating efficiency
- Integrated environmental sensors for temperature, humidity, and leak detection
- 3-year comprehensive warranty including battery protection
Specifications
| Specifications | |
|---|---|
| Manufacturer | Vertiv |
| Manufacturer Part Number | GXT5-5000MVRT4UXLN |
| Brand Name | Vertiv Liebert |
| Product Series | GXT |
| Product Name | GXT5 5000VA 208/120V UPS |
| Packaged Quantity | 1 |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Terminal Block |
| Receptacle Type | Hardwired |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage | IT System,Mission Critical Equipment,Data Center |
| Power Description | |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 5 kW |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC,120 V AC |
| Input Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| User Selectable Output | 208/120VAC |
| Utility (AC) Mode Overload | 105% to 125% for 5 minutes 125% to 150% for 60 seconds >150% (impact load) minimum 200 ms |
| Controls/Indicators | |
| Status Indicators | LED/Full Color Graphic LCD |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Network (RJ-45) | Yes |
| Battery Information | |
| Battery Characteristics | Valve-regulated, Non-spillable, Flame-retardant |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4.50 Minute |
| Backup/Run Time (Half Load) | 12.50 Minute |
| Number of External Battery Cabinets | 1 |
| Backup/Run Time With External Battery Cabinet (Full Load) | 12.50 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 33 Minute |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Environmental Sensors | Leak Detection Sensor,Temperature Sensor,Humidity Sensor |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Storage Temperature | 5°F (-15°C) - 104°F (40°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Height | 6.80" (172.72 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 25.60" (650.24 mm) |
| Rack Height | 4U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 125.60 lb (56971.20 g) |
| Miscellaneous | |
| Package Contents | GXT5 5000VA 208/120V UPS 4 Post Fixed Rail Kit Tower Stand USB Cable Quick Start Guide Safety Instruction Manual |
| Energy Star | Yes |
| Country of Origin | China |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the difference between VA and watt ratings on this UPS?
This UPS has both 5000VA and 5000W ratings, indicating a power factor of 1.0. The high power factor (0.9-1.0) means virtually all the VA rating is usable as watts, allowing more equipment to be protected without oversizing the UPS. This efficiency translates to better space utilization and cost savings in rack-dense environments.
Can this UPS be used in both rack and tower configurations?
Yes, the Liebert GXT5 is designed as a rack/tower convertible UPS. The package includes both a 4-post fixed rail kit for standard 19-inch rack mounting and a tower stand for floor deployment. The gravity-sensing display automatically adjusts orientation based on installation position for optimal readability.
What runtime can I expect at full and half load?
With internal batteries, the UPS provides 4.5 minutes of runtime at full 5000W load and 12.5 minutes at half load (2500W). Runtime can be extended by adding the supported external battery cabinet, which increases backup time to 12.5 minutes at full load and 33 minutes at half load for extended protection during prolonged outages.
What remote management options are available?
The UPS includes serial, USB, and network (RJ-45) communication ports for comprehensive remote monitoring and control. An optional Vertiv RDU101 network communications card adds advanced management features. The full-color graphic LCD provides local status information, while environmental sensors monitor temperature, humidity, and potential water leaks.
What type of power output does this UPS provide?
This double conversion online UPS delivers pure sine wave output, which is essential for sensitive electronic equipment like servers, networking gear, and medical devices. The output voltage is user-selectable between 208V AC and 120V AC to match connected equipment requirements, with zero transfer time between utility and battery power.
What warranty coverage is included with this UPS?
The Liebert GXT5 comes with a 3-year comprehensive warranty that includes battery coverage. This warranty can be extended with optional 2-year extensions for longer protection periods. The warranty covers the complete UPS system including the double conversion electronics, monitoring systems, and internal batteries.
What power capacity is listed for this UPS?
The listed power specification is 5 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC, which helps position the unit for the right load level and installation role.
