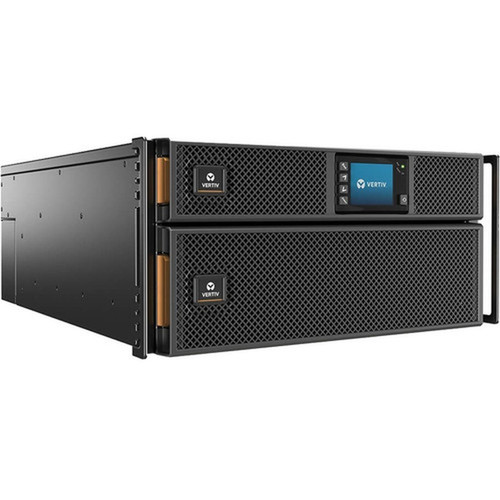

Liebert GXT5-6000MVRT4UXLN 6000VA/6kW Double Conversion Online UPS - 4U Rack/Tower - 230V AC Input - 208/120V AC Output - 3. 5 Min Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double conversion online UPS maintains zero transfer time with pure sine wave output, protecting connected equipment from power disturbances. The 230V AC input accepts standard North American power, while user-selectable 208/120VAC output provides flexibility for different equipment requirements.
The valve-regulated, non-spillable lead-acid batteries are flame-retardant and hot-swappable. Runtime extends from 3.5 minutes at full load to 9.5 minutes at half load, with optional external battery cabinets available for extended protection.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Transfer Time, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Liebert GXT5 combines high power factor efficiency with comprehensive monitoring capabilities. The 0.9-1.0 power factor delivers more usable power per VA rating, allowing more connected equipment within the same footprint.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Advanced Monitoring, Management Flexibility.
Advanced Monitoring
LED/full-color graphic LCD provides clear alarm and fault indication. Environmental sensors monitor temperature, humidity, and potential leaks for proactive maintenance.
- Leak Detection Sensor
- Temperature Sensor
- Humidity Sensor
Management Flexibility
Serial, USB, and network ports enable local and remote management. The optional Vertiv RDU101 network communications card adds advanced remote monitoring capabilities.
- Serial Port
- USB Port
- Network (RJ-45)
Deployment / Use Cases
This UPS is engineered for environments requiring uninterrupted power for critical systems. The 4U rack-mount design integrates seamlessly into standard server racks, while the tower configuration option provides flexibility for standalone installations.
Ideal applications include server rooms, network closets, telecommunications equipment, and industrial control systems. The hardwired terminal block connection ensures secure power delivery for permanent installations.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Transfer Time, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Data Center Protection
Provides clean power for servers, storage systems, and networking equipment in data center environments. The double conversion topology isolates connected equipment from utility power anomalies.
Mission Critical Systems
Supports medical equipment, financial transaction systems, and industrial controls where power interruptions could result in data loss or operational disruption.
Physical Profile
The 4U rack-mount design measures 6.80" (172.72 mm) high, 16.90" (429.26 mm) wide, and 25.60" (650.24 mm) deep. The rack/tower convertible form factor includes a tower stand for standalone use. At 125.60 pounds, the unit requires proper rack mounting or stable surface placement.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.80" (172.72 mm), 16.90" (429.26 mm), 25.60" (650.24 mm), 125.60 lb (56971.20 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 16.90" (429.26 mm)
- Depth
- 25.60" (650.24 mm)
- Height
- 6.80" (172.72 mm)
- Weight
- 125.60 lb (56971.20 g)
What's in the Box
The package includes all necessary components for installation and operation.
Highlights
- 6000VA/6kW double conversion online UPS with pure sine wave output
- 4U rack/tower convertible form factor with gravity-sensing display
- 230V AC input with 208V/120V AC dual output voltages
- 3.5 minutes runtime at full load, 9.5 minutes at half load
- Hot-swappable, valve-regulated lead-acid batteries
- Serial, USB, and network connectivity for management
- Environmental sensors for temperature, humidity, and leak detection
- Energy Star 2.0 certified with up to 95% efficiency
- 3-year comprehensive warranty including battery coverage
- Hardwired terminal block connection for secure installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Vertiv |
| Manufacturer Part Number | GXT5-6000MVRT4UXLN |
| Brand Name | Vertiv Liebert |
| Product Series | GXT |
| Product Name | GXT5 6000VA 208/120V UPS |
| Packaged Quantity | 1 |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Terminal Block |
| Receptacle Type | Hardwired |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage | IT System,Mission Critical Equipment,Data Center |
| Power Description | |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 6 kW |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC,120 V AC |
| Input Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| User Selectable Output | 208/120VAC |
| Utility (AC) Mode Overload | 105% to 125% for 5 minutes 125% to 150% for 60 seconds >150% (impact load) minimum 200 ms |
| Controls/Indicators | |
| Status Indicators | LED/Full Color Graphic LCD: Alarm / Fault Indication |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Network (RJ-45) | Yes |
| Battery Information | |
| Battery Characteristics | Valve-regulated, Non-spillable, Flame-retardant |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3.50 Minute |
| Backup/Run Time (Half Load) | 9.50 Minute |
| Number of External Battery Cabinets | 1 |
| Backup/Run Time With External Battery Cabinet (Full Load) | 9.50 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 25.50 Minute |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Environmental Sensors | Leak Detection Sensor,Temperature Sensor,Humidity Sensor |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Storage Temperature | 5°F (-15°C) - 104°F (40°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Height | 6.80" (172.72 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 25.60" (650.24 mm) |
| Rack Height | 4U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 125.60 lb (56971.20 g) |
| Miscellaneous | |
| Package Contents | GXT5 6000VA 208/120V UPS 4 Post Fixed Rail Kit Tower Stand USB Cable Quick Start Guide Safety Instruction Manual |
| Energy Star | Yes |
| Country of Origin | China |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Liebert UPS?
The Liebert GXT5 provides 6000VA/6kW of power capacity. This double conversion online UPS delivers pure sine wave output with a high power factor of 0.9-1.0, meaning you get more usable power per VA rating for connecting additional equipment.
What runtime can I expect at full and half load?
At full 6kW load, the internal batteries provide 3.5 minutes of runtime. At half load (3kW), runtime extends to 9.5 minutes. With one external battery cabinet, runtime increases to 9.5 minutes at full load and 25.5 minutes at half load for extended protection.
Can this UPS be installed in a server rack?
Yes, this is a 4U rack-mount UPS that fits standard 19-inch server racks. The package includes a 4-post fixed rail kit for secure rack installation. The unit also converts to tower configuration using the included tower stand for standalone deployments.
What input and output voltages does this UPS support?
The UPS accepts 230V AC input power and provides dual output voltages of 208V AC and 120V AC. This allows you to power different types of equipment from the same UPS, with user-selectable output configuration for flexibility in mixed environments.
How can I monitor and manage this UPS?
The UPS features a gravity-sensing graphical color display for local monitoring. For remote management, it includes serial, USB, and network (RJ-45) ports. An optional Vertiv RDU101 network communications card adds advanced remote monitoring capabilities with environmental sensor integration.
What warranty coverage does this UPS include?
Liebert provides a 3-year comprehensive warranty that includes battery coverage. This warranty can be extended for an additional 2 years through optional service plans. The UPS is also Energy Star 2.0 certified and complies with RoHS and REACH environmental standards.
What power capacity is listed for this UPS?
The listed power specification is 6 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
