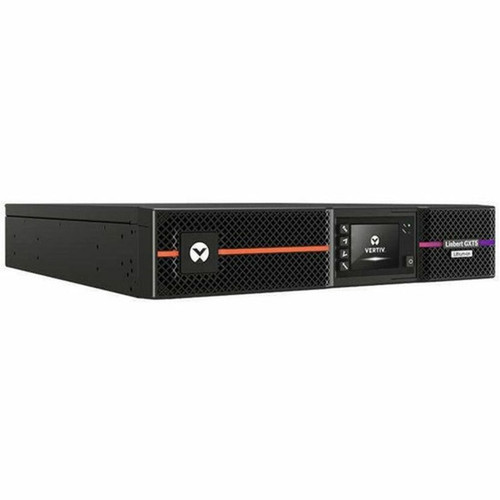

Liebert GXT5LI-1000LVRT2UXL Lithium-Ion Online UPS 1000VA/1000W 120V - 2U Rack/Tower - 13 Min Full Load - 2 Hour Recharge
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This online UPS operates with single-phase input, accepting a wide voltage range from 102 V AC to 150 V AC and delivering regulated 120 V AC output. The double-conversion topology continuously conditions incoming power, isolating connected loads from all common power disturbances including sags, surges, spikes, and frequency variations.
Management capabilities include an LCD/LED display for local status monitoring, plus SNMP/Web, serial, USB, and HID-compliant USB ports for remote monitoring and control. The integrated circuit breaker and hot-swappable, user-replaceable battery design enhance serviceability and uptime.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
Lithium-Ion batteries provide a significantly longer lifecycle—up to three times that of standard VRLA batteries—reducing total cost of ownership through fewer replacements. The 2-hour recharge time minimizes downtime between outages, while the scalable runtime option via external 1U battery cabinets allows for extended backup as needs grow.
Lower Environmental Impact
With fewer battery replacements over its lifetime, this UPS reduces waste disposal and recycling demands, supporting greener IT operations.
- RoHS, REACH, and WEEE compliant
- Energy Star certified for efficiency
Enhanced Reliability
The double-conversion design and pure sine wave output ensure compatibility with sensitive active PFC servers, networking gear, and storage systems.
- Zero transfer time for seamless protection
- Wide input voltage range for brownout tolerance
Deployment / Use Cases
Ideal for protecting critical systems where power quality and uptime are non-negotiable. The 2U rack-mount footprint fits standard server cabinets, while the included support base enables stable tower placement in smaller IT closets or under-desk installations.

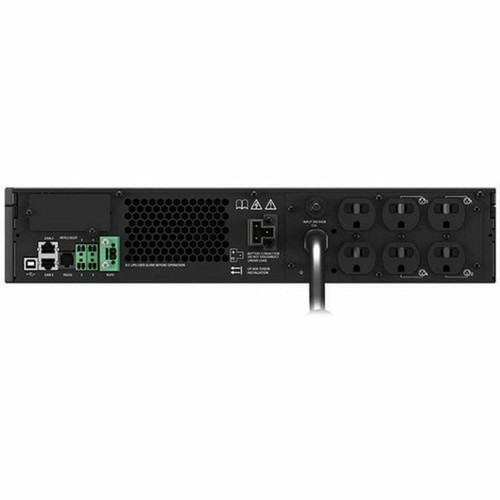

Common applications include server rooms, network infrastructure, edge computing nodes, and telecommunications equipment. The six NEMA 5-15R outlets provide ample connectivity for a mix of servers, switches, routers, and other essential devices.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Server Room & Data Closet
Provides runtime for graceful shutdown or continuous operation during short outages, safeguarding data integrity and hardware.
Edge Computing & Remote Sites
Compact form factor and robust environmental tolerances support deployment in distributed IT environments with limited space and cooling.
Physical Profile
The UPS measures 3.40" H x 16.90" W x 17.30" D (86.36 mm x 429.26 mm x 439.42 mm) and weighs approximately 37.50 lb (17.01 kg). The 2U rack height allows efficient use of vertical space in standard 19-inch racks. The adjustable 4-post rack mounting kit and tower support base are included for versatile installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.40" (86.36 mm), 16.90" (429.26 mm), 17.30" (439.42 mm), 37.50 lb (17009.71 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 16.90" (429.26 mm)
- Depth
- 17.30" (439.42 mm)
- Height
- 3.40" (86.36 mm)
- Weight
- 37.50 lb (17009.71 g)
What's in the Box
The package includes the GXT5LI-1000LVRT2UXL 1000VA Rack/Tower UPS, a 1.8-meter USB Type A to Type B cable, a printed quick start guide with safety instructions, an adjustable 4-post rack mounting kit, a support base for tower configuration, and download access to Vertiv Power Assist (USB management software) and Vertiv Power Insight (network management software, optional RDU101 network card required).
Highlights
- 1000VA/1000W double-conversion online UPS with pure sine wave output
- Lithium-Ion battery for longer life and faster 2-hour recharge
- 13-minute runtime at full load, 28 minutes at half load
- 2U rack-mount or tower configuration with included mounting hardware
- Six NEMA 5-15R outlets for multiple device connections
- Hot-swappable, user-replaceable battery design
- SNMP/Web, serial, USB, and HID-compliant USB management interfaces
- Energy Star certified and RoHS/REACH/WEEE compliant
- Wide input voltage range (102–150 V AC) for brownout protection
- 3-year limited warranty with 5-year warranty on UPS and batteries
Specifications
| Specifications | |
|---|---|
| Manufacturer | Vertiv |
| Manufacturer Part Number | GXT5LI-1000LVRT2UXL |
| Brand Name | Vertiv Liebert |
| Product Series | GXT |
| Product Model | GXT5LI |
| Product Name | GXT5LI 1000 LV UPS |
| Packaged Quantity | 1 |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage | Critical System,IT System,Server Room,Network Closet,Edge Computing |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 1 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 102 V AC - 150 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Pure Sine Wave |
| Circuit Breaker | Yes |
| Display & Graphics | |
| Display | LCD/LED |
| Management | |
| Network Management | SNMP/Web |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Backup/Run Time (Full Load) | 13 Minute |
| Backup/Run Time (Half Load) | 28 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 2 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Storage Temperature | -4°F (-20°C) - 140°F (60°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 45 dB |
| Physical Characteristics | |
| Height | 3.40" (86.36 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 17.30" (439.42 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 37.50 lb (17009.71 g) |
| Miscellaneous | |
| Package Contents | GXT5LI-1000LVRT2UXL 1000VA Rack/Tower UPS USB Type A to USB Type B Cable 1.8 Meter (6ft) in Length Printed Quick Start Guide with Safety Instructions Adjustable 4-Post Rack Mounting Kit Support Base for Tower Configuration Vertiv™Power Assist (USB Management Software; Free Download) Vertiv™Power Insight (Network Management Software; Free Download) (Optional RDU101 Network Card Required) |
| Software Included | Yes |
| Energy Star | Yes |
| Country of Origin | China |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the runtime of this UPS at full and half load?
The Liebert GXT5LI-1000LVRT2UXL provides 13 minutes of backup runtime at full 1000W load and 28 minutes at half load (500W). These runtimes support graceful shutdown procedures or short-duration outage bridging for critical IT equipment.
How long does it take to recharge the batteries?
The typical battery recharge time is 2 hours. This fast recharge minimizes downtime between power events, ensuring the UPS is ready quickly for subsequent outages.
Can this UPS be used in both rack and tower configurations?
Yes, it is designed for dual rack/tower deployment. The package includes an adjustable 4-post rack mounting kit for 2U installation in standard server racks and a support base for stable tower placement on shelves or under desks.
What type of battery does this UPS use, and is it replaceable?
It uses a Lithium-Ion (Li-Ion) battery, which offers a longer lifecycle and faster recharge compared to traditional VRLA batteries. The battery is hot-swappable and user-replaceable, allowing maintenance without powering down connected equipment.
What management and monitoring options are available?
Local monitoring is provided via an LCD/LED display. Remote management supports SNMP/Web, serial, USB, and HID-compliant USB interfaces. Included software downloads enable detailed monitoring and configuration through Vertiv Power Assist (USB) and Vertiv Power Insight (network, optional card required).
What is the warranty coverage for this UPS?
The UPS comes with a 3-year limited warranty. Additionally, the UPS and batteries carry a 5-year warranty, reflecting the extended lifecycle and reliability of the Lithium-Ion technology.
What power capacity is listed for this UPS?
The listed power specification is 1 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
