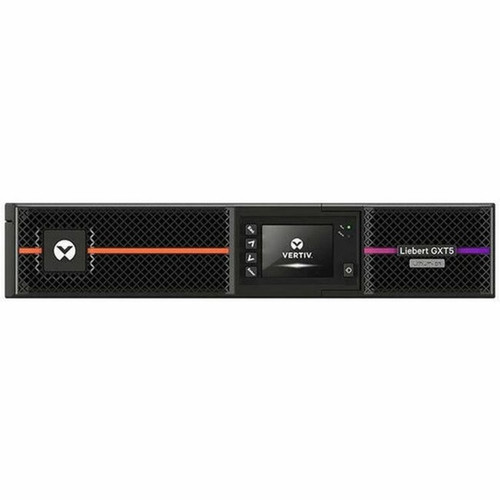

Liebert GXT5LI-2000LVRT2UXL Lithium-Ion Online UPS - 2000VA/1800W 120V 2U Rack/Tower - 2 Hour Recharge - 10. 5 Min Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This online UPS operates with double-conversion technology, continuously converting incoming AC power to DC and back to clean AC output. This ensures complete isolation from input anomalies, providing regulated voltage and frequency to connected equipment.
The unit includes a built-in LCD/LED display for real-time status monitoring and supports remote management via SNMP/Webcard, serial, and USB interfaces. Input voltage accepts a wide range from 102 to 150 V AC, accommodating typical North American power conditions.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Environmental Specifications
Operates reliably up to 10,000 ft elevation, with a maximum operating temperature of 104°F (40°C) and storage range from -4°F to 140°F (-20°C to 60°C). Sound emission is rated at 45 dB.
- Max operating elevation: 10,000 ft
- Operating temp: up to 104°F (40°C)
- Sound emission: 45 dB
Key Product Advantages
The GXT5LI series delivers superior runtime performance with faster recharge cycles. At half load, runtime extends to 22.5 minutes, providing extended protection during prolonged outages. The 2-hour recharge time minimizes downtime between backup events.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include 3x longer battery life vs VRLA, 5-year UPS & battery warranty, Lower total cost of ownership, Energy Star certified, RoHS/REACH/WEEE compliant.
Deployment / Use Cases
This 2000VA UPS is purpose-built for environments where power continuity directly impacts operational integrity. Its 2U rack/tower design integrates seamlessly into standard server racks or stands independently as a tower unit.
The unit's six NEMA 5-15/20R outlets and one NEMA L5-20R outlet accommodate a mix of IT equipment, while the pure sine wave output ensures compatibility with sensitive servers, networking gear, and storage systems.
Primary Applications
Ideal for critical systems in server rooms, network closets, and edge computing sites where space efficiency and reliable backup power are paramount.
- Server room power protection
- Network closet backup
- Edge computing infrastructure
- IT system critical load support
Scalability Option
Runtime can be extended by adding 1U external battery cabinet units, allowing organizations to scale backup duration as needs evolve without replacing the core UPS.
Physical Profile
The UPS measures 3.4 inches in height, 16.9 inches in width, and 18.5 inches in depth, occupying 2U of rack space. Weighing 39.7 pounds, it is manageable for installation in both rack and tower configurations.
The package includes an adjustable 4-post rack mounting kit and a support base for tower deployment, providing flexibility for diverse IT environments. The compact design optimizes space utilization in crowded racks or under-desk placements.
- Width
- 16.90" (429.26 mm)
- Depth
- 18.50" (469.90 mm)
- Height
- 3.40" (86.36 mm)
- Weight
- 39.70 lb (18007.62 g)
What's in the Box
The unit ships complete with all necessary components for immediate deployment in either rack or tower orientation.
Highlights
- 2000VA/1800W double-conversion online UPS with pure sine wave output
- Lithium-Ion battery technology for up to 3x longer life vs traditional VRLA
- 5-year warranty covering both the UPS and batteries
- 2-hour typical battery recharge time minimizes downtime
- 10.5 minutes runtime at full load, 22.5 minutes at half load
- 2U rack/tower form factor with included mounting hardware
- Six NEMA 5-15/20R and one NEMA L5-20R outlets
- SNMP/Webcard, serial, USB, and HID-compliant USB management interfaces
- Hot-swappable, replaceable battery design
- Energy Star certified and RoHS/REACH/WEEE compliant
Specifications
| Specifications | |
|---|---|
| Manufacturer | Vertiv |
| Manufacturer Part Number | GXT5LI-2000LVRT2UXL |
| Brand Name | Vertiv Liebert |
| Product Series | GXT |
| Product Model | GXT5LI |
| Product Name | GXT5LI 2000 LV UPS |
| Packaged Quantity | 1 |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L5-20P |
| Receptacle Type | NEMA 5-15/20R,NEMA L5-20R |
| Receptacle Detail | 6 x NEMA 5-15/20R,1 x NEMA L5-20R |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage | Critical System,IT System,Server Room,Network Closet,Edge Computing |
| Power Description | |
| Load Capacity (VA) | 2 kVA |
| Load Capacity (Watt) | 1.80 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 102 V AC - 150 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Pure Sine Wave |
| Circuit Breaker | Yes |
| Display & Graphics | |
| Display | LCD/LED |
| Management | |
| Network Management | SNMP/Webcard |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Backup/Run Time (Full Load) | 10.50 Minute |
| Backup/Run Time (Half Load) | 22.50 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 2 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Storage Temperature | -4°F (-20°C) - 140°F (60°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 45 dB |
| Physical Characteristics | |
| Height | 3.40" (86.36 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 18.50" (469.90 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 39.70 lb (18007.62 g) |
| Miscellaneous | |
| Package Contents | GXT5LI-2000LVRT2UXL 2000VA Rack/Tower UPS USB Type A to USB Type B Cable 1.8 Meter (6ft) in Length Printed Quick Start Guide with Safety Instructions Adjustable 4-Post Rack Mounting Kit Support Base for Tower Configuration Vertiv™Power Assist (USB Management Software; Free Download) Vertiv™Power Insight (Network Management Software; Free Download) (Optional RDU101 Network Card Required) |
| Software Included | Yes |
| Energy Star | Yes |
| Country of Origin | China |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Liebert UPS?
This UPS provides 2000 VA (2 kVA) and 1800 watts of power capacity. It operates at 120 volts AC input and output, with a wide input voltage range from 102 to 150 V AC to accommodate typical line variations.
How long does the battery last during a power outage?
At full load (1800W), the Lithium-Ion battery provides 10.5 minutes of runtime. At half load (900W), runtime extends to 22.5 minutes. These times are based on standard testing conditions and actual runtime may vary with load and battery age.
What type of battery does this UPS use and how is it different?
This UPS uses Lithium-Ion (Li-Ion) batteries, which typically last up to three times longer than traditional valve-regulated lead-acid (VRLA) batteries. They also recharge faster—this unit reaches full charge in about 2 hours—and come with a 5-year warranty covering both the UPS and batteries.
Can this UPS be installed in a server rack?
Yes, it is designed for both rack and tower deployment. It occupies 2U of rack space (3.4 inches high) and includes an adjustable 4-post rack mounting kit. The package also contains a support base for standalone tower use, offering installation flexibility.
What management and monitoring options are available?
The UPS features an LCD/LED display for local status. For remote management, it supports SNMP/Webcard networking, serial communication, and USB connectivity. Included software—Vertiv Power Assist (USB) and Power Insight (network)—provides monitoring, alerts, and graceful shutdown capabilities.
What outlets are provided and what equipment can be connected?
The unit has six NEMA 5-15/20R outlets and one NEMA L5-20R outlet. These accommodate standard North American plugs for servers, switches, routers, and other IT gear. The pure sine wave output ensures safe operation with sensitive electronic equipment.
What power capacity is listed for this UPS?
The listed power specification is 2 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
