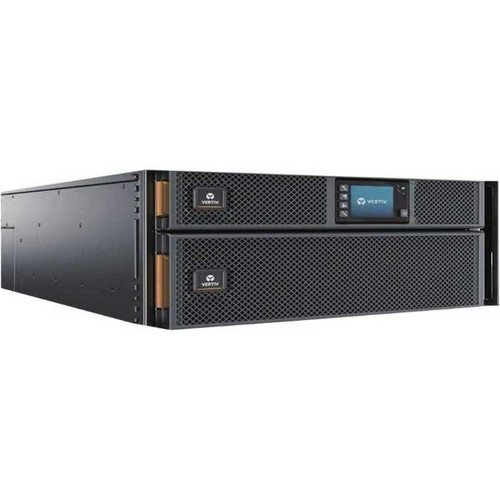

Vertiv Liebert GXT5 UPS - 6kVA/6kW 230V | Online Rack Tower Energy Star - Double Conversion | 5U | Built-in RDU101 Card| Color/Graphic (GXT5-6000IRT5UXLN)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- UPS
- RDU101 SNMP/Webcard
- 4 Post Fixed Rail Kit and Tower Stand
- USB Cable
- Quick Start Guide
- Safety Instruction Manual
Plug/Connector Type: Hardwired
Receptacle Type: Terminal Block,IEC 60320 C19,IEC 60320 C13
Receptacle Detail: 2 x IEC 60320 C19,6 x IEC 60320 C13
Transfer Time: 0 ns
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Application/Usage: IT Equipment,Finance,Banking,Telecommunication,Healthcare,Retail Building,Edge Computing,IOT Device,Business,Mission Critical Equipment,Network
Load Capacity (VA): 6 kVA
Load Capacity (Watt): 6 kW
Input Voltage: 230 V AC
Input Voltage Range: 115 V AC - 288 V AC
Output Voltage: 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC
Input Frequency: 70 Hz
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Status Indicators:
LED/Full Color Graphic LCD
Serial Port: Yes
Network (RJ-45): Yes
USB (HID Compliant) Port: Yes
Number of Batteries: 16
Battery Characteristics: Valve-regulated, Non-spillable
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 9000 mAh
Backup/Run Time (Full Load): 5.50 Minute
Backup/Run Time (Half Load): 14.50 Minute
Battery Life: 5 Year
Hot Swappable: Yes
Replaceable Battery: Yes
Maximum Operating Elevation: 9842.52 ft (3000000 mm)
Storage Temperature: 5°F (-15°C) - 104°F (40°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission: 55 dB
Product Color: Black
Height: 8.54" (217 mm)
Width: 16.93" (430 mm)
Depth: 24.80" (630 mm)
Form Factor: Rack/Tower
Weight (Approximate): 156.09 lb (70800 g)
Package Contents:
Energy Star: Yes
Country of Origin: China
TAA Compliant: No
Environmentally Friendly: Yes
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- Offers reliable, easy-to-manage power protection and battery backup with 6kVA (6kW) capacity.
- UNITY Power Factor (1.0) for more usable power and more connected loads to save space and costs.
- Includes a built-in Vertiv RDU101 network communications card for remote management.
- Vertiv 3-year warranty with optional 2-year extension for a total of 5 years in coverage.
- It is ENERGY STAR 2.0 certified with higher efficiency, for energy savings and improved reliability.
[custom-specifications]
| Specifications | |
| Manufacturer | Vertiv |
| Manufacturer Part Number | GXT5-6000IRT5UXLN |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Brand Name | Vertiv Liebert |
| Product Series | GXT5 |
| Product Model | GXT5-6000IRT5UXLN |
| Product Name | GXT5 UPS-6kVA/6kW/230V|Online Rack Tower Energy Star |
| Product Condition | New |
| Packaged Quantity | 1 |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | Terminal Block,IEC 60320 C19,IEC 60320 C13 |
| Receptacle Detail | 2 x IEC 60320 C19,6 x IEC 60320 C13 |
| Transfer Time | 0 ns |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Application/Usage | IT Equipment,Finance,Banking,Telecommunication,Healthcare,Retail Building,Edge Computing,IOT Device,Business,Mission Critical Equipment,Network |
| Power Description | |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 6 kW |
| Input Voltage | 230 V AC |
| Input Voltage Range | 115 V AC - 288 V AC |
| Output Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Controls/Indicators | |
| Status Indicators | LED/Full Color Graphic LCD |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Number of Batteries | 16 |
| Battery Characteristics | Valve-regulated, Non-spillable |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 5.50 Minute |
| Backup/Run Time (Half Load) | 14.50 Minute |
| Battery Life | 5 Year |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Storage Temperature | 5°F (-15°C) - 104°F (40°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 55 dB |
| Physical Characteristics | |
| Product Color | Black |
| Height | 8.54" (217 mm) |
| Width | 16.93" (430 mm) |
| Depth | 24.80" (630 mm) |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 156.09 lb (70800 g) |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Country of Origin | China |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
