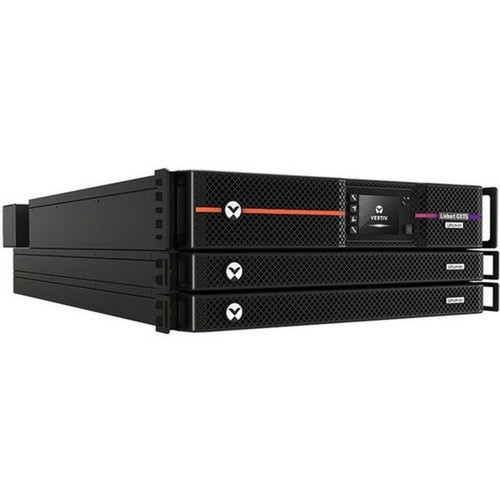

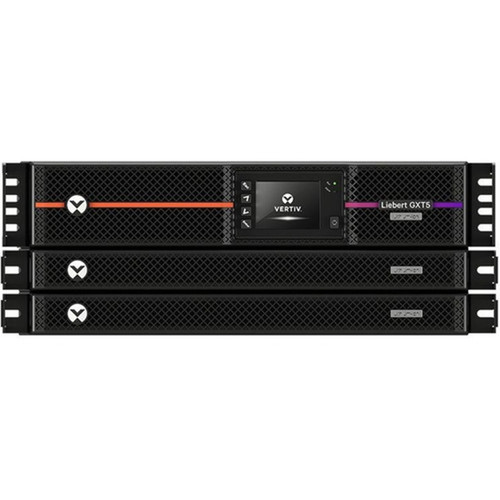

Liebert GXT5LI-8000MVRT4UXLN 8000VA/8000W Rack/Tower UPS - 4U Double Conversion Online - 14 Minute Full Load Runtime - 120/240V AC - Lithium Ion
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This UPS operates on a double-conversion online topology, continuously converting incoming AC power to DC and back to AC, providing complete isolation from grid anomalies. It accepts a wide input voltage range from 120V to 240V AC and delivers stable 120V or 240V AC output, making it suitable for diverse electrical infrastructures.
The lithium-ion battery chemistry offers a longer lifecycle and faster recharge compared to traditional lead-acid batteries. Management interfaces include serial, USB, and Ethernet ports for integration with network management systems. An internal circuit breaker provides overload protection, while the unit carries Energy Star certification for energy efficiency.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Transfer Time, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include High-Capacity Power Protection, Flexible Deployment Options.
High-Capacity Power Protection
With 8 kVA/8 kW capacity, this UPS supports multiple servers, storage arrays, and networking gear, ensuring business continuity during extended outages.
- Zero transfer time for uninterrupted operation
- Pure sine wave output protects sensitive equipment
- Wide input voltage range accommodates varying grid conditions
Flexible Deployment Options
The rack/tower convertible design allows installation in standard 4-post racks or as a standalone tower, adapting to space-constrained server rooms or edge sites.
- Includes rail kits for 4-post rack mounting
- Tower base kit for floor-standing deployment
- Hot-swappable batteries enable maintenance without shutdown
Deployment / Use Cases
This UPS is designed for environments where power quality and uptime are critical. Its 8 kW capacity makes it ideal for protecting server racks housing virtualization hosts, database servers, or network core switches. The double-conversion online design ensures clean power delivery, safeguarding sensitive medical imaging equipment or laboratory instruments.
Edge computing locations with unstable grid power benefit from the wide input voltage range and lithium-ion batteries, which perform well in temperature-variable conditions. Network closets supporting VoIP systems and security appliances maintain connectivity during brownouts. The included management ports allow integration with DCIM software for centralized monitoring across distributed IT assets.
Server Room & Data Center
Provides backup power for rack-mounted servers, storage, and networking equipment, with runtime sufficient for graceful shutdowns or transfer to generators.
Edge Computing & Network Closet
Protects remote IT equipment in branch offices or industrial settings, where power fluctuations are common and on-site support is limited.
Physical Profile
The unit measures 6.90" high, 16.90" wide, and 35" deep, occupying 4U of vertical rack space. Its weight of approximately 155 pounds requires proper rack reinforcement or stable floor placement when used in tower mode. The included rail kits support secure mounting in 4-post racks, while the tower base kit provides stability for standalone deployment.
- Width
- 16.90" (429.26 mm)
- Depth
- 35" (889 mm)
- Height
- 6.90" (175.26 mm)
- Weight
- 155 lb (70306.82 g)
What's in the Box
The package includes all necessary components for rack mounting or tower setup, along with essential cables and documentation.
Highlights
- 8000VA/8000W double-conversion online UPS for high-density IT loads
- 14 minutes of runtime at full load, 27 minutes at half load
- Lithium-ion batteries with hot-swappable design for easy maintenance
- Rack/tower convertible form factor with 4U rack height
- Pure sine wave output protects sensitive server and network equipment
- Wide input voltage range from 120V to 240V AC

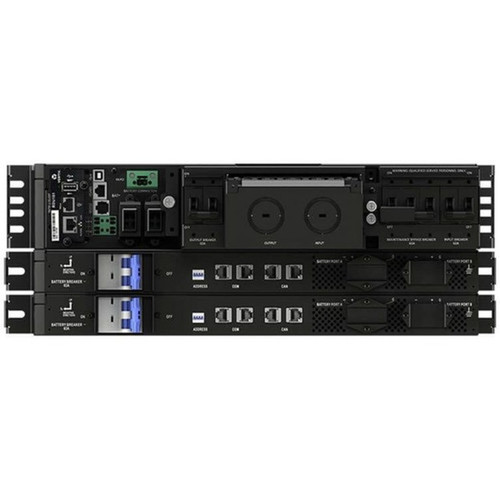

- Serial, USB, and Ethernet ports for remote management
- Energy Star certified for energy efficiency
- 5-year limited warranty for long-term reliability
- Includes rail kits and tower base for flexible installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Vertiv |
| Manufacturer Part Number | GXT5LI-8000MVRT4UXLN |
| Brand Name | Vertiv Liebert |
| Product Model | GXT5LI-8000MVRT4UXLN |
| Product Name | GXT5LI-8000MVRT4UXLN 8000VA/8000W Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | Hardwired |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage | Server Room,Network Closet,IT Equipment,Edge Computing |
| Power Description | |
| Load Capacity (VA) | 8 kVA |
| Load Capacity (Watt) | 8 kW |
| Input Voltage | 120 V AC,230 V AC |
| Input Voltage Range | 120 V AC - 240 V AC |
| Output Voltage | 120 V AC,240 V AC |
| Waveform Type | Pure Sine Wave |
| Circuit Breaker | Yes |
| Display & Graphics | |
| Display | LCD |
| Controls/Indicators | |
| Status Indicators | LED & LCD |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Network (RJ-45) | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Backup/Run Time (Full Load) | 14 Minute |
| Backup/Run Time (Half Load) | 27 Minute |
| Hot Swappable | Yes |
| Physical Characteristics | |
| Height | 6.90" (175.26 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 35" (889 mm) |
| Rack Height | 4U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 155 lb (70306.82 g) |
| Miscellaneous | |
| Package Contents | GXT5LI-8000MVRT4UXLN 8000VA/8000W Rack/Tower UPS USB Cable Quick Install Guide (QIG) 1 x 4-Post Rack 2U Rail Kit 2 x VEBCLI-192VRT1U 2 x 4-Post Rack 1U Rail Kit Tower Base Kit |
| Energy Star | Yes |
| Country of Origin | China |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the power capacity of this Liebert UPS?
This Liebert GXT5LI-8000MVRT4UXLN UPS provides 8000VA (8 kVA) and 8000W of power capacity. It is designed to support high-density server racks, networking equipment, and other critical IT loads, ensuring continuous operation during power disturbances or outages.
How long does the battery last during a power outage?
At full load (8000W), the lithium-ion batteries provide up to 14 minutes of runtime. At half load (4000W), runtime extends to approximately 27 minutes. These durations allow sufficient time for connected equipment to perform graceful shutdowns or for backup generators to engage.
Can this UPS be installed in a server rack?
Yes, this UPS is designed for both rack and tower deployment. It occupies 4U of vertical space in a standard 4-post rack, and the package includes 2U and 1U rail kits for secure mounting. A tower base kit is also included for standalone floor placement.
What input voltages does this UPS support?
The UPS accepts input voltages of 120V AC or 230V AC, with an operating range from 120V to 240V AC. This wide range accommodates various electrical infrastructures, making it suitable for North American and international deployments without requiring external transformers.
Does this UPS provide pure sine wave output?
Yes, it delivers pure sine wave output, which is essential for protecting sensitive electronic equipment like servers, storage arrays, and medical devices. Pure sine wave power ensures compatibility with active PFC power supplies and reduces the risk of equipment damage or instability.
What management interfaces are available on this UPS?
The UPS includes a serial port, USB port, and Ethernet (RJ-45) port for remote monitoring and management. These interfaces allow integration with network management systems, enabling administrators to monitor power status, configure alerts, and perform shutdowns via software.
What power capacity is listed for this UPS?
The listed power specification is 8 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC,230 V AC, which helps position the unit for the right load level and installation role.
