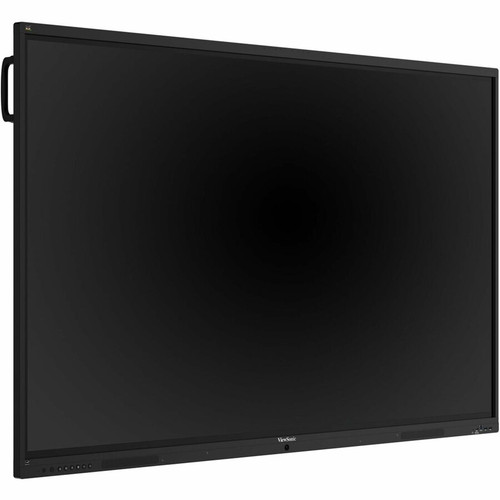

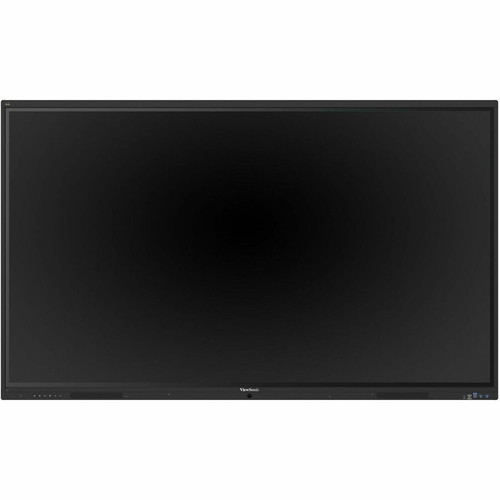

ViewSonic IFP8641 ViewBoard 86" 4K UHD Interactive Flat Panel Display - 3840 x 2160400 cd/m² - Rockchip RK3576128 GB - Android 16
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ViewSonic ViewBoard IFP8641 is an 86-inch LCD collaboration display with 4K UHD resolution (3840 x 2160) and a brightness of 400 cd/m². The scan format is 2160p, ensuring smooth video playback. The display is equipped with a Rockchip RK3576 processor and 128 GB of internal storage.
The operating system is Android 16, providing a familiar tablet-like interface. Connectivity options include USB-C with 100W power delivery, supporting single-cable video, data, and charging. The display also features a built-in 55W front-facing soundbar, a subwoofer, and an eight-microphone array with beamforming and noise cancellation for clear audio capture up to 8 meters.
Physical dimensions are 77.04" x 46.08" x 3.44" (1956.82 x 1170.43 x 87.38 mm) and weight is 128.31 lb (58.2 kg). The unit is Energy Star and EPEAT certified, and manufactured in China with RoHS compliance. It comes with a 3-year limited warranty.
Key Product Advantages
The ViewBoard IFP8641 combines a large 86-inch 4K display with powerful audio and touch capabilities, making it an all-in-one collaboration solution. Its EDLA certification ensures enterprise-grade security and management options, while the single-cable USB-C connectivity simplifies setup and reduces cable clutter.
Collaboration Ready
64-point multi-touch and anti-glare glass enable natural, simultaneous interaction for groups. Ideal for brainstorming and interactive lessons.
Enterprise Security
Android EDLA certification allows IT admins to manage apps via Google Admin Console or Microsoft Intune, ensuring secure deployment.
Eco-Friendly Design
PIR motion sensors and ambient light sensors reduce power consumption. Flicker-free technology and blue light filter protect eyes during extended use.
Deployment / Use Cases
The ViewSonic ViewBoard IFP8641 is designed for large meeting rooms, classrooms, and training facilities where interactive collaboration and clear audio are critical. Its 86-inch screen is visible from any seat, and the eight-microphone array with noise cancellation ensures remote participants hear everyone clearly.
Use cases include hybrid teaching with recorded lessons, corporate brainstorming sessions, and video conferences. The built-in Android 16 platform allows direct installation of collaboration apps like Microsoft Teams, Google Meet, and whiteboarding tools without a connected PC.
Classroom Instruction
Teachers can annotate directly on the 4K display, share content wirelessly, and record lessons with built-in audio. The anti-glare glass reduces reflections for better visibility.
Boardroom Presentations
Presenters can connect laptops via USB-C with 100W charging, display content, and use the touch screen for interactive discussions. The 55W soundbar fills the room with clear audio.
Localization and Operating System
The ViewSonic ViewBoard IFP8641 runs on Android 16, offering a user-friendly tablet-like interface with access to thousands of apps through the Google Play Store. The EDLA certification ensures compatibility with Google Workspace and Microsoft 365, allowing users to edit documents, join video calls, and manage files directly on the display.
The operating system supports multiple languages and is designed for global deployment. IT administrators can centrally manage devices using Google Admin Console or Microsoft Intune, ensuring compliance with organizational policies.
This section brings together practical product details such as Viewable Screen Size, Screen Size Class, Display Screen Type, Processor Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The ViewBoard IFP8641 has a slim depth of 3.44 inches (87.38 mm), allowing for flush wall mounting. The display measures 77.04 inches wide by 46.08 inches tall (1956.82 x 1170.43 mm) and weighs 128.31 lb (58.2 kg). The screen is protected by anti-glare 9H tempered glass, making it durable for high-traffic environments. It is VESA mount compatible (standard 600x400 pattern).
- Width
- 77.04" (1956.82 mm)
- Depth
- 3.44" (87.38 mm)
- Height
- 46.08" (1170.43 mm)
- Weight
- 128.31 lb (58200.44 g)
Highlights
- 86-inch 4K UHD (3840x2160) interactive LCD display with anti-glare 9H tempered glass and 64-point multi-touch.
- Rockchip RK3576 processor with 128 GB storage running Android 16 for a responsive, app-ready experience.
- EDLA certification for secure access to Google Play Store and Microsoft 365, managed via Google Admin Console or Intune.
- USB-C port supports 4K video, data, and up to 100W power delivery over a single cable.
- Built-in 55W front-facing soundbar with subwoofer and eight-microphone array with noise cancellation for clear audio up to 8 meters.
- PIR motion sensors and ambient light sensors for automatic wake and brightness adjustment, reducing power consumption.
- Flicker-free technology and blue light filter to reduce eye strain during extended use.
- Energy Star and EPEAT certified, with RoHS compliance and 3-year limited warranty.
Specifications
| Specifications | |
|---|---|
| Manufacturer | ViewSonic Corporation |
| Manufacturer Part Number | IFP8641 |
| Brand Name | ViewSonic |
| Product Line | ViewBoard |
| Product Model | IFP8641 |
| Product Name | 86" ViewBoard 4K Interactive Flat Panel, 3840 x 2160 Resolution |
| Packaged Quantity | 1 |
| Product Type | Collaboration Display |
| Display & Graphics | |
| Viewable Screen Size | 86" (2184.40 mm) |
| Screen Size Class | 86" (2184.40 mm) |
| Display Screen Type | LCD |
| Screen Mode | 4K UHD |
| Screen Resolution | 3840 x 2160 |
| Scan Format | 2160p |
| Brightness | 400 cd/m² |
| Processor & Chipset | |
| Processor Manufacturer | Rockchip |
| Processor Model | RK3576 |
| Memory | |
| Standard Memory | 128 GB |
| Software | |
| Operating System Platform | Android |
| Operating System | Android 16 |
| Physical Characteristics | |
| Height | 46.08" (1170.43 mm) |
| Width | 77.04" (1956.82 mm) |
| Depth | 3.44" (87.38 mm) |
| Weight (Approximate) | 128.31 lb (58200.44 g) |
| Miscellaneous | |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool (EPEAT) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What is the screen resolution of the ViewSonic ViewBoard IFP8641?
The ViewSonic ViewBoard IFP8641 features a 4K UHD resolution of 3840 x 2160 pixels. Combined with its 86-inch LCD display and 400 cd/m² brightness, it delivers sharp and vivid visuals suitable for presentations, video conferencing, and interactive collaboration.
What operating system does the ViewBoard IFP8641 run?
The IFP8641 runs Android 16, providing a familiar tablet-like interface. It is EDLA certified, which means it has native access to the Google Play Store and Microsoft 365, and IT administrators can manage apps securely via Google Admin Console or Microsoft Intune.
How many touch points does the ViewBoard IFP8641 support?
The ViewBoard IFP8641 supports 64-point multi-touch technology, allowing multiple users to interact with the screen simultaneously. This makes it ideal for group brainstorming, collaborative drawing, and interactive lessons without lag.
What audio features are built into the ViewBoard IFP8641?
The display includes a built-in 55W front-facing soundbar with an integrated subwoofer for room-filling sound. It also features a beamforming eight-microphone array with noise cancellation that captures clear voices from up to eight meters away, making it ideal for hybrid meetings and recorded lessons.
What connectivity options does the ViewBoard IFP8641 offer?
Key connectivity includes a USB-C port that supports 4K video, high-speed data, and up to 100W power delivery over a single cable. This allows presenters to charge their laptop while sharing content. The display also includes HDMI, USB, and other standard ports for flexible integration.
What are the physical dimensions and weight of the ViewBoard IFP8641?
The ViewBoard IFP8641 measures 77.04 inches wide, 46.08 inches high, and 3.44 inches deep (1956.82 x 1170.43 x 87.38 mm). It weighs approximately 128.31 lb (58.2 kg). The slim profile and VESA mount compatibility (600x400 pattern) allow for easy wall mounting.
What screen size is listed?
It features a display specification of 86" (2184.40 mm), giving you clear visuals for work and media use.
What resolution or display format is specified?
It features a display specification of 3840 x 2160, giving you clear visuals for work and media use.
