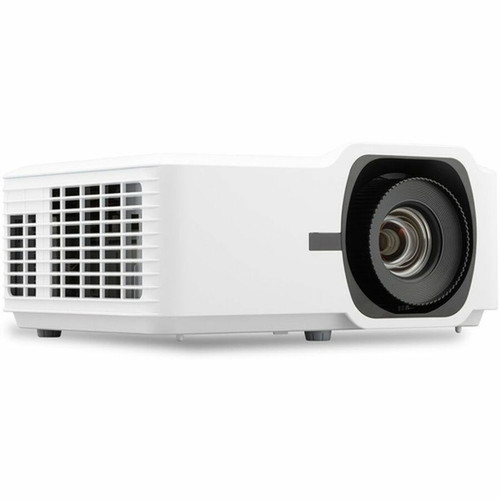

Viewsonic LS741HD 5000 ANSI Lumens 1080p Laser DLP Projector - 3D Ready - 16: 9 - White/Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The ViewSonic LS741HD is a professional-grade laser DLP projector engineered for demanding installation environments such as boardrooms, lecture halls, and galleries. It combines a high-brightness 5,000 ANSI lumen laser light source with native Full HD 1080p resolution to deliver crisp, vibrant images even in well-lit spaces.
This projector supports 3D content and projects a massive color gamut of 1.07 billion colors, producing lifelike visuals with a high 3,000,000:1 contrast ratio. The laser/phosphor light source provides consistent performance and an exceptionally long 30,000-hour operational life in normal mode, drastically reducing maintenance and total cost of ownership compared to traditional lamp-based models.
Relevant factors for this section include Projection Method, 3D Type, Native Resolution, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
At its core, the LS741HD utilizes DLP projection technology for reliable, single-chip performance. The optical system features a 1.5x optical zoom lens with a throw ratio range of 1.4 to 2.24, offering significant placement flexibility. You can project images from a compact 30 inches up to a massive 25-foot diagonal, with a throw distance ranging from just over 3 feet to nearly 49 feet.

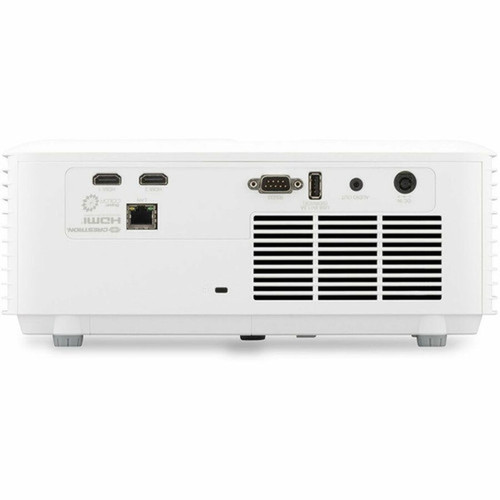

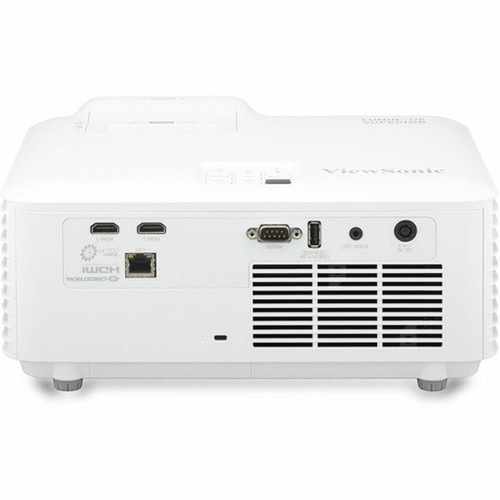

For system integration, it includes essential connectivity ports: HDMI for high-definition video sources, a USB port for media playback or service functions, and a wired network (RJ-45) port. The network interface enables advanced management via industry-standard protocols like Crestron, AMX, Extron, PJ Link, and ViewSonic's own vController software for remote scheduling, power management, and monitoring.
Relevant factors for this section include Projection Method, 3D Type, Native Resolution, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The LS741HD stands out with features designed to simplify installation, enhance usability, and support specialized applications. Its laser light source enables instant power-on and shut-off, with no cool-down period, and allows for automatic scheduling—ideal for fixed installations that operate on a daily timetable.
Advanced Installation Flexibility
The projector supports ceiling mounting and is compatible with the ViewSonic PJ-WMK-007 mount. A comprehensive suite of image adjustment tools includes vertical and horizontal keystone correction, 4-corner adjustment, and even 360-degree projection capability for creative installations.
- H/V Keystone Correction
- 4-Corner Adjustment
- Portrait Mode Support
- 360-Degree Projection
Specialized Application Modes
Beyond standard presentations, the projector includes a dedicated Golf Mode that optimizes settings for compatibility with major golf simulator software, creating an immersive virtual course experience. This makes it a versatile choice for entertainment and training facilities.
Deployment / Use Cases
This laser projector is purpose-built for commercial and institutional settings where reliability, brightness, and low maintenance are critical. Its 5,000-lumen output cuts through ambient light in conference rooms and training centers, ensuring presentations remain clear and legible.
The long-life laser engine and network management capabilities make it an excellent fit for managed AV environments in universities, corporate offices, and museums. Technicians can remotely control power, input selection, and monitor status, reducing the need for physical access. The throw flexibility allows it to be installed in rooms of various sizes, from intimate meeting spaces to large auditoriums.
Physical Profile
The projector features a two-tone White and Black chassis that blends into professional environments. It has a compact form factor, measuring 11.26" wide by 8.50" deep by 5.08" high, and weighs approximately 6.61 pounds. This relatively light weight and standard mounting points facilitate straightforward installation on ceilings or shelves.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 5.08" (129 mm), 11.26" (286 mm), 8.50" (216 mm), 6.61 lb (3000 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 11.26" (286 mm)
- Depth
- 8.50" (216 mm)
- Height
- 5.08" (129 mm)
- Weight
- 6.61 lb (3000 g)
- Length
- 20.9 mm (0.82")
What's in the Box
The package includes all essential items for initial setup and operation.
Package contents include 5,000 ANSI Lumens 1080p Laser Installation Projector, 1 x Power Cord, 1 x Remote Control QSG. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 5,000 ANSI lumen laser brightness for vivid images in lit rooms
- Native Full HD 1080p (1920x1080) resolution with 3D support
- Long-life laser/phosphor light source rated for 30,000 hours
- 1.5x optical zoom and flexible throw ratio (1.4-2.24) for easy placement
- Network control (RJ-45) for remote management via Crestron, AMX, PJ Link
- Includes Golf Mode for compatibility with golf simulator software
- Instant on/off with scheduling for automated operation
- Ceiling mountable and compatible with ViewSonic mount PJ-WMK-007
- Projects images from 30 inches up to 300 inches diagonal
- Comprehensive image adjustment: keystone, 4-corner, 360-degree projection
Specifications
| Specifications | |
|---|---|
| Manufacturer | ViewSonic Corporation |
| Manufacturer Part Number | LS741HD |
| Brand Name | ViewSonic |
| Product Model | LS741HD |
| Product Name | 5,000 ANSI Lumens 1080p Laser Installation Projector |
| Product Type | DLP Projector |
| Technical Information | |
| Projection Method | Front |
| 3D Type | 3D |
| Display & Graphics | |
| Native Resolution | 1920 x 1080 |
| Graphic Mode | Full HD |
| Native Aspect Ratio | 16:9 |
| Projection Lens | |
| Minimum Focal Length | 20.9 mm (0.82") |
| Maximum Focal Length | 32.6 mm (1.28") |
| Minimum Diagonal Image Size | 30" (762 mm) |
| Maximum Diagonal Image Size | 25 ft (7620 mm) |
| Optical Zoom | 1.5x |
| Minimum Projection Distance | 36.61" (930 mm) |
| Maximum Projection Distance | 48.82 ft (14880 mm) |
| Lamp | |
| Number of Lamps | 1 |
| Lamp Type | Laser/Phosphor |
| Normal Mode Lamp Life | 30000 Hour |
| Image | |
| Standard Mode Brightness | 5000 lm |
| Color Supported | 1.07 Billion Colors |
| Throw Ratio | 1.4 to 2.24 |
| Contrast Ratio | 3,000,000:1 |
| Video | |
| Video Signal Standard | HDTV |
| Output Scan Format | 1080p |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Operating Power Consumption | 210 W |
| Physical Characteristics | |
| Product Color | White,Black |
| Height | 5.08" (129 mm) |
| Width | 11.26" (286 mm) |
| Depth | 8.50" (216 mm) |
| Weight (Approximate) | 6.61 lb (3000 g) |
| Miscellaneous | |
| Application/Usage | Board Room,Lecture Hall,Gallery |
| Package Contents | 5,000 ANSI Lumens 1080p Laser Installation Projector 1 x Power Cord 1 x Remote Control QSG |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the brightness of the ViewSonic LS741HD projector?
The LS741HD delivers 5,000 ANSI lumens of brightness. This high lumen output is powered by a laser/phosphor light source, making it suitable for use in environments with significant ambient light, such as boardrooms, lecture halls, and galleries, without requiring complete darkness for a clear image.
What is the native resolution and does it support 3D?
This projector has a native resolution of 1920 x 1080 (Full HD 1080p). It is fully 3D-ready, supporting 3D content playback when used with compatible 3D sources and glasses, enhancing its suitability for presentations, simulations, and entertainment applications.
How long does the laser light source last?
The laser/phosphor light source in the LS741HD has an exceptionally long rated life of 30,000 hours in normal mode. This longevity minimizes maintenance intervals and replacement costs, providing a reliable and cost-effective solution for permanent installations over many years of operation.
What connectivity options are available?
The projector is equipped with an HDMI input for high-definition video, a USB port, and a wired Network (RJ-45) port. The network connection enables advanced remote management, scheduling, and control using protocols like PJ Link, Crestron, AMX, and ViewSonic's vController software.
How flexible is the installation for this projector?
Installation is highly flexible. It features a 1.5x optical zoom lens and a throw ratio range from 1.4 to 2.24, allowing it to project a 100-inch image from approximately 13 feet away. It supports ceiling mounting, offers H/V keystone correction, 4-corner adjustment, and even 360-degree projection for versatile setup options.
What is included in the box with the projector?
The package contains the ViewSonic LS741HD laser projector unit itself, a standard power cord for operation, and a remote control (QSG) for convenient navigation of the on-screen menu and basic functions. The product is backed by a standard limited 3-year warranty from ViewSonic.
