Viewsonic TD3207 32" Open-Frame LED Touchscreen Monitor - 31.5" Viewable - Full HD 1080p - 10-Point Projected Capacitive - IPS Panel - 450 cd/m²
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview

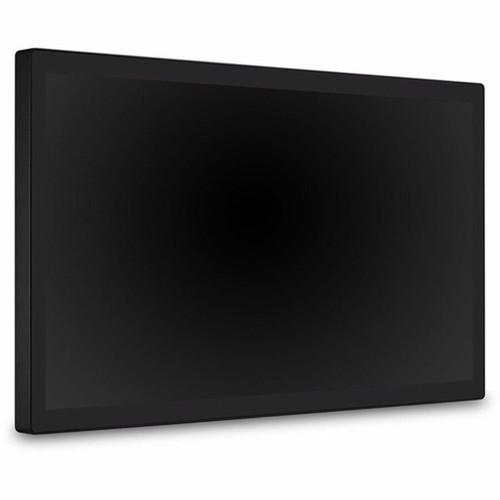

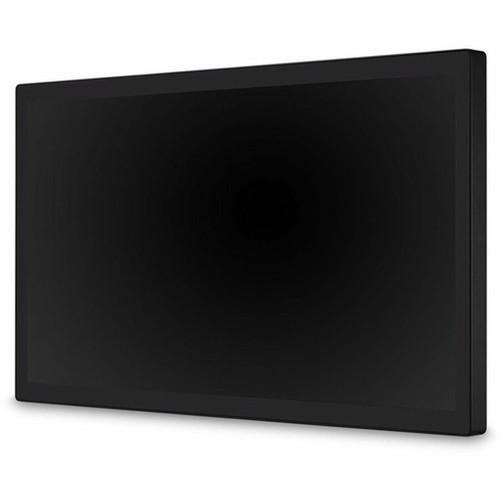

The ViewSonic TD3207 is a 32-inch open-frame LED touchscreen monitor engineered for demanding commercial and interactive applications. Its 31.5-inch viewable Full HD display combines a robust, frameless design with a high-performance projected capacitive touchscreen, delivering reliable operation in retail, hospitality, digital signage, and control room environments.
Built for continuous use, this monitor features a 24/7 operation rating and an IP54 ingress protection rating, making it resistant to dust and water splashes. The 3H and 7H glass hardness ensures the touch surface withstands scratches and daily wear, while the open-frame construction allows for seamless integration into kiosks, enclosures, or wall-mounted setups.
Relevant factors for this section include Screen Size Class, Viewable Screen Size, Screen Mode, Maximum Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
At the core of the TD3207 is a 31.5-inch In-plane Switching (IPS) panel that delivers Full HD 1920 x 1080 resolution with wide 178-degree viewing angles horizontally and vertically. The display produces 16.7 million colors with a native contrast ratio of 3,000:1 and a dynamic contrast ratio of 50,000,000:1, ensuring vibrant and consistent image quality from any vantage point.
The monitor is driven by a high-brightness 450 cd/m² LED backlight, providing excellent visibility even in brightly lit spaces. A fast 5 ms response time minimizes motion blur for smooth touch interactions and video playback. The integrated anti-glare coating, on-screen display controls, and anti-burn-in technology further enhance usability and panel longevity.
Relevant factors for this section include Screen Size Class, Viewable Screen Size, Screen Mode, Maximum Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This touchscreen monitor stands out with its combination of industrial durability, precise touch response, and versatile connectivity, making it a dependable solution for interactive deployments.
Advanced 10-Point Projected Capacitive Touch

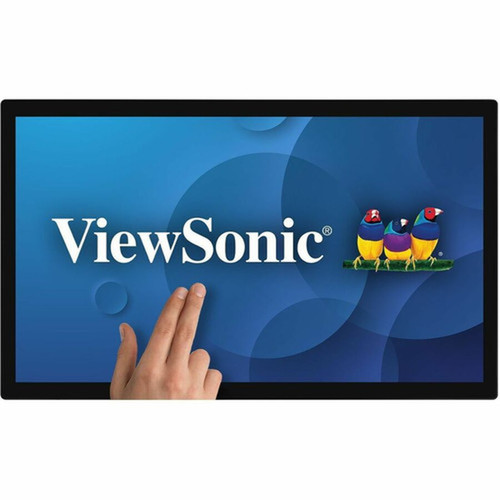

The projected capacitive touchscreen supports 10 simultaneous touchpoints, enabling smooth multi-finger gestures like zooming, scrolling, and rotating. This technology provides excellent accuracy and responsiveness without requiring excessive pressure, ideal for public use and collaborative applications.
- 10-point multi-touch support
- Accurate gesture recognition
- Durable glass surface
Robust Build for Continuous Operation
Engineered for non-stop environments, the TD3207 features an IP54 rating for dust and water resistance, 3H/7H hardened glass, and a 24/7 operation certification. This durability ensures reliable performance in high-traffic areas, outdoor kiosks, or industrial settings where equipment faces constant use and environmental exposure.
- IP54 rated
- 24/7 operation capable
- Scratch-resistant glass
Flexible Installation and Connectivity

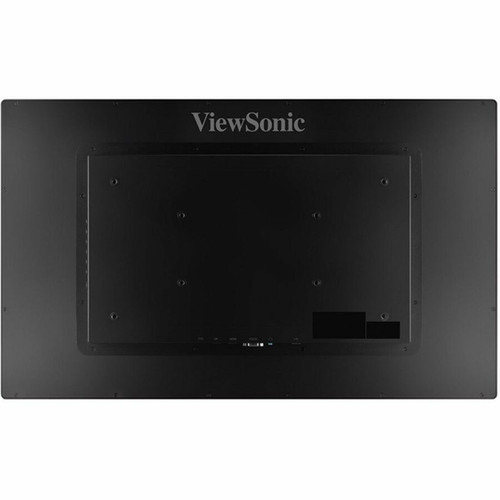

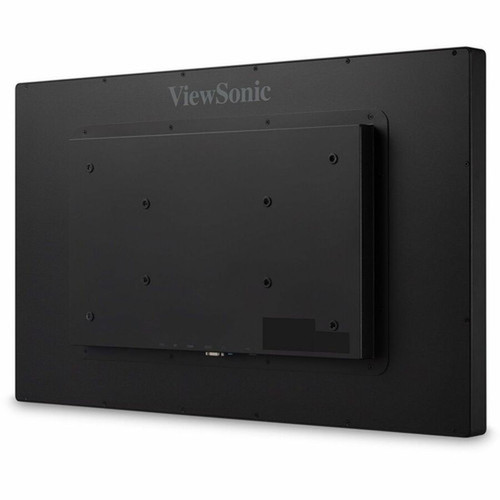

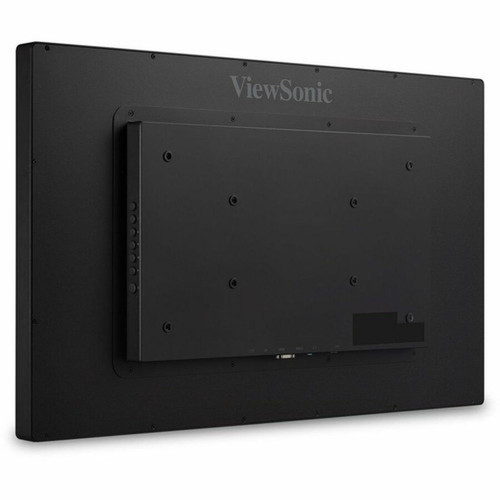

The open-frame design and VESA 400x200 mm mount compatibility allow for easy integration into custom enclosures, wall mounts, or stand assemblies. Connectivity includes HDMI 1.4 and DisplayPort inputs for high-quality digital video, plus a USB Type-B port for touch data transmission, simplifying cabling and system integration.
- VESA 400x200 mount
- HDMI & DisplayPort inputs
- Open-frame for integration
Deployment / Use Cases
The ViewSonic TD3207 is tailored for commercial and institutional settings where interactive display reliability and touch performance are critical. Its robust construction and high-brightness screen make it suitable for environments that demand both visual clarity and physical resilience.
In retail and hospitality, this monitor serves as an interactive kiosk for wayfinding, product catalogs, or self-service ordering. The 10-point touch capability supports engaging customer experiences, while the IP54 rating protects against spills and dust in busy public areas. For digital signage, the open-frame design allows seamless embedding into wall displays or informational totems, with the 24/7 operation ensuring uninterrupted content delivery.
Interactive Kiosks & Self-Service Terminals
Ideal for retail, museums, or transportation hubs, where users interact with maps, menus, or information systems. The durable touch surface and high brightness maintain usability under heavy public use and varying lighting conditions.
Control Room & Industrial Monitoring
Suited for control panels, manufacturing floors, or security operations centers. The wide viewing angles and reliable 24/7 operation support continuous monitoring, while the VESA mount enables flexible installation in console setups or wall arrays.
What's in the Box
The package includes all essential components for quick setup and integration into your interactive system.
Highlights
- 31.5-inch viewable Full HD 1080p IPS display with 178-degree viewing angles for clear visibility from any position.
- 10-point projected capacitive multi-touch screen enables smooth zooming, scrolling, and gesture-based interactions.
- High 450 cd/m² brightness ensures excellent image clarity and readability in brightly lit commercial environments.
- IP54 rating provides protection against dust and water splashes, enhancing durability for public or industrial use.
- Open-frame design with VESA 400x200 mm mount compatibility allows for flexible integration into kiosks, walls, or custom enclosures.
- 24/7 continuous operation capability supports non-stop applications in retail, digital signage, or control rooms.
- 3H and 7H glass hardness resists scratches and abrasions, maintaining touch sensitivity and display quality over time.
- Includes HDMI, DisplayPort, and USB Type-B connectivity for versatile video input and touch data transmission.
- Energy Star certified and RoHS compliant, meeting environmental standards for reduced power consumption and hazardous substance restrictions.
- Backed by a 3-year limited warranty, providing reliable support for commercial deployments.
Specifications
| Specifications | |
|---|---|
| Manufacturer | ViewSonic Corporation |
| Manufacturer Part Number | TD3207 |
| Brand Name | ViewSonic |
| Product Model | TD3207 |
| Product Name | TD3207 32" LCD FHD Touch Screen Monitor (HDMI, DisplayPort) |
| Packaged Quantity | 1 |
| Product Type | Open-frame LED Touchscreen Monitor |
| Technical Information | |
| Screen Size Class | 32" |
| Viewable Screen Size | 31.5" |
| Screen Mode | Full HD |
| Panel Technology | In-plane Switching (IPS) Technology |
| Response Time | 5 ms |
| Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Backlight Technology | LED |
| Features | Anti-glare,On-screen Display (OSD),Anti-Burn-in Technology |
| Horizontal Frequency | 15 kHz to 73 kHz - HDMI 1.4,15 kHz to 73 kHz - DisplayPort |
| Vertical Frequency | 47 Hz to 75 Hz - HDMI 1.4,47 Hz to 75 Hz - DisplayPort |
| Adjustable Stand | No |
| Operation Hours | 24 Hours/7 Days |
| Ingress Protection (IP) Rating | IP54 |
| Glass Hardness | 3H,7H |
| Video | |
| Maximum Resolution | 1920 x 1080 |
| Color Supported | 16.7 Million Colors |
| Native Contrast Ratio | 3,000:1 |
| Dynamic Contrast Ratio | 50,000,000:1 |
| Brightness | 450 cd/m² |
| Audio | |
| Speakers | Yes |
| Touchscreen Information | |
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| DisplayPort | Yes |
| Number of HDMI Inputs | 1 |
| Total Number of HDMI Ports | 1 |
| Number of DisplayPorts | 1 |
| Number of USB Ports | 1 |
| Number of USB Type-B Ports | 1 |
| Environmental Conditions | |
| Operating Temperature Range | 32°F (0°C) to 104°F (40°C) |
| Operating Humidity Range | 20% to 90% (Non-condensing) |
| Power Description | |
| Operating Power Consumption | 50 W |
| Maximum Power Consumption | 50 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 400 x 200 |
| Height with Stand | 17.76" (451 mm) |
| Width with Stand | 29.41" (747 mm) |
| Depth with Stand | 2.52" (64 mm) |
| Weight with Stand (Approximate) | 28.22 lb (12800 g) |
| Miscellaneous | |
| Package Contents | 32" 1080p Open Frame 10-Point Touch Monitor with 24/7 Operation and HDMI, DisplayPort and RS232 Power Cable HDMI to HDMI Cable USB A to USB B Cable Quick Start Guide |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What is the screen size and resolution of the ViewSonic TD3207 monitor?
The ViewSonic TD3207 features a 31.5-inch viewable screen with a Full HD resolution of 1920 x 1080 pixels. This provides sharp, detailed visuals suitable for interactive applications, digital signage, and control displays, ensuring content is clear and legible even in commercial settings.
How many touchpoints does this touchscreen monitor support?
This monitor supports 10 simultaneous touchpoints using projected capacitive technology. This allows for multi-finger gestures such as pinching to zoom, rotating, and scrolling, making it ideal for collaborative applications, interactive kiosks, or environments where multiple users may interact with the screen at once.
Is the ViewSonic TD3207 suitable for outdoor or harsh environments?
Yes, the TD3207 is built for demanding environments with an IP54 ingress protection rating, which makes it resistant to dust and water splashes. Combined with its 24/7 operation capability and hardened 3H/7H glass, it is well-suited for use in retail kiosks, outdoor digital signage, or industrial areas where exposure to elements and continuous use are common.
What inputs and connectivity options are available on this monitor?
The monitor includes one HDMI 1.4 port and one DisplayPort for high-quality digital video input, along with a USB Type-B port for touch data transmission. This connectivity suite supports easy integration with PCs, media players, or control systems, and the included cables facilitate quick setup without additional purchases.
Can the ViewSonic TD3207 be wall-mounted or integrated into a kiosk?
Absolutely. The open-frame design removes the external bezel, allowing for seamless integration into custom enclosures, kiosks, or wall mounts. It is VESA mount compatible with a 400 x 200 mm pattern, providing flexibility to use with a wide range of third-party mounting solutions for fixed or adjustable installations.
What is the brightness level and panel type of this monitor?
The TD3207 delivers a brightness of 450 cd/m², ensuring excellent visibility in brightly lit spaces like stores or lobbies. It uses an In-plane Switching (IPS) panel, which offers wide 178-degree viewing angles and consistent color reproduction, making it effective for applications where viewers may be positioned at various angles to the screen.
