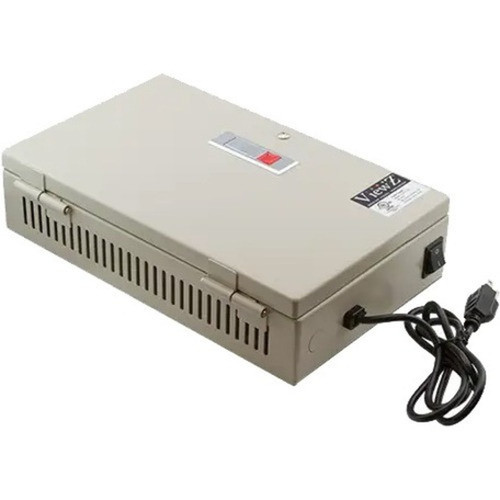

ViewZ VZ-DC24-320 VZ-DC24-320320 VA Step Down Transformer - 24V DC Output - 120/230V AC & 124/370V DC Input - Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This transformer operates with a power rating of 320 VA, converting input voltages to a precise 24V DC output. It accommodates both AC and DC inputs: 120V AC and 230V AC for standard electrical systems, plus 124V DC and 370V DC for DC-based power sources. The maximum line current of 13.40 A ensures it can support connected loads effectively while maintaining stable output under typical operating conditions.
The unit's electrical design focuses on consistent voltage transformation, minimizing fluctuations to protect downstream equipment. Its compatibility with multiple input types reduces the need for additional converters, simplifying power setup in mixed-environment deployments. This technical flexibility makes it a valuable component in setups requiring reliable DC power from varied input sources.
Key Product Advantages
The VZ-DC24-320 combines versatile input compatibility with a sturdy, wall-mountable build, offering distinct advantages for power management. Its ability to accept both AC and DC inputs provides installation flexibility, reducing dependency on specific power sources and simplifying integration into diverse electrical environments.
Multi-Input Compatibility
Supports 120V AC, 230V AC, 124V DC, and 370V DC inputs, allowing deployment in standard AC grids or DC-based systems without extra converters.
- Eliminates need for additional adapters
- Simplifies power source selection
Stable DC Output
Delivers a consistent 24V DC output with a 320 VA capacity, ensuring reliable power for devices requiring stable DC voltage.
- Precise voltage transformation
- Suitable for sensitive electronics
Durable Construction
Wall-mountable design and robust build enhance longevity, supported by a 3-year warranty for assured performance in demanding conditions.
- Saves space with wall mounting
- Backed by manufacturer warranty
Deployment / Use Cases
This transformer is ideal for scenarios requiring conversion to 24V DC power, such as industrial control systems, telecommunications equipment, LED lighting arrays, or security installations. Its wall-mountable form factor suits environments where floor space is limited, such as equipment rooms, server closets, or manufacturing floors.
Common applications include powering DC-powered devices in facilities with mixed AC/DC infrastructure, serving as a reliable power source in backup systems, or integrating into renewable energy setups where DC input from solar or battery sources is present. The multi-input capability allows it to bridge different power systems, making it a versatile choice for upgrading or expanding existing power networks.
Physical Profile

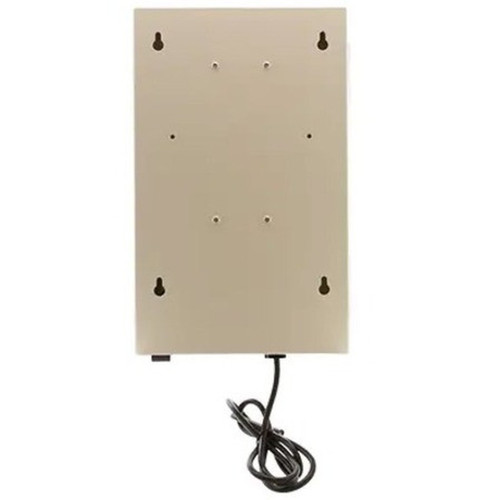

The transformer measures 13.38 inches in height and 8.26 inches in width (339.85 mm x 209.80 mm), with a weight of approximately 3.72 kg. Its wall-mountable design allows for vertical installation, conserving floor space and facilitating neat cable management in tight areas. The compact footprint makes it easy to integrate into racks, enclosures, or directly onto walls in industrial or commercial settings.
- Width
- 8.26" (209.80 mm)
- Height
- 13.38" (339.85 mm)
- Weight
- 3.72 kg
Highlights
- 320 VA power rating for reliable DC output
- 24V DC output voltage, stable for connected devices
- Accepts 120V AC, 230V AC, 124V DC, and 370V DC inputs
- Maximum line current of 13.40 A supports substantial loads
- Wall-mountable form factor saves installation space
- Dimensions: 13.38" H x 8.26" W (339.85 mm x 209.80 mm)
- Weight: 3.72 kg for sturdy, portable handling
- 3-year limited warranty for long-term assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | ViewZ |
| Manufacturer Part Number | VZ-DC24-320 |
| Brand Name | ViewZ |
| Product Model | VZ-DC24-320 |
| Product Name | Output 24V DC / 320W Power Transformer |
| Product Type | Step Down Transformer |
| Technical Information | |
| Power Rating | 320 VA |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC,124 V DC,370 V DC |
| Output Voltage | 24 V DC |
| Maximum Line Current | 13.40 A |
| Physical Characteristics | |
| Height | 13.38" (339.85 mm) |
| Width | 8.26" (209.80 mm) |
| Form Factor | Wall Mountable |
| Weight (Approximate) | 3.72 kg |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What is the power rating of the ViewZ VZ-DC24-320 transformer?
The ViewZ VZ-DC24-320 has a power rating of 320 VA, which indicates its capacity to handle apparent power for converting input voltages to a 24V DC output. This rating ensures it can support connected loads effectively in various applications.
What input voltages does this transformer support?
This transformer supports multiple input voltages: 120V AC and 230V AC for standard alternating current sources, plus 124V DC and 370V DC for direct current inputs. This flexibility allows deployment in diverse power environments without additional converters.
What is the output voltage and current capability?
The output voltage is 24V DC, with a maximum line current of 13.40 A. This provides stable DC power suitable for devices requiring consistent voltage, such as industrial controls or LED systems, while handling substantial current loads.
Is the transformer wall-mountable?
Yes, the VZ-DC24-320 features a wall-mountable form factor, enabling vertical installation to conserve floor space. This design is ideal for equipment rooms, server closets, or industrial settings where efficient use of space is important.
What are the physical dimensions and weight?
The transformer measures 13.38 inches in height and 8.26 inches in width (339.85 mm x 209.80 mm), with an approximate weight of 3.72 kg. These dimensions make it compact enough for easy integration while remaining sturdy for reliable operation.
What warranty is included with this product?
The ViewZ VZ-DC24-320 comes with a 3-year limited warranty, covering defects in materials and workmanship. This warranty provides assurance of its durability and performance in demanding power conversion applications.
