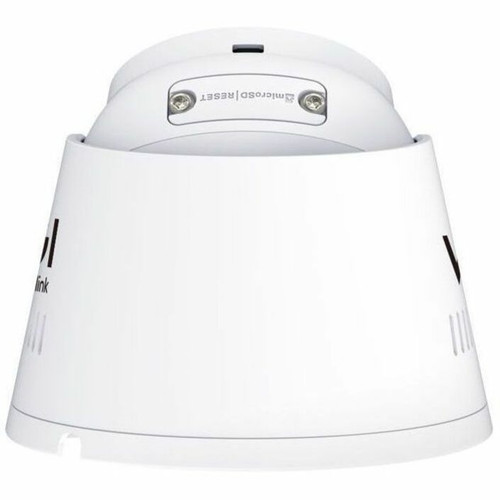

VIGI INSIGHT S445S(2. 8MM) InSight S445S 4MP Turret Network Camera - 2. 8mm Lens - 98. 43 ft Color Night Vision - H. 265+ - AI-Powered - IP67 - PoE/DC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera uses a 1/1.79" CMOS sensor and supports advanced video compression formats including H.265+, H.265, and H.264 variants, optimizing bandwidth and storage efficiency. Wide Dynamic Range (WDR) at 120 dB balances lighting in high-contrast scenes, while 3D digital noise reduction enhances image clarity.
Network connectivity is handled via Fast Ethernet with support for TCP/IP, HTTP, HTTPS, RTSP, and IPv6 protocols, enabling seamless integration into existing security systems. Remote management capabilities allow for configuration and monitoring from any location.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The S445S stands out with its AI-enhanced imaging and robust construction. Smart detection algorithms distinguish between humans and vehicles, reducing false alarms and focusing alerts on relevant activity. Two-way audio and flexible alarm I/O integration support interactive security responses.
AI-Powered Analytics
Leverages AI-ISP for real-time human and vehicle classification, enabling smarter event triggers and more efficient monitoring.
- People & Vehicle Attributes Analytics
- Human & Vehicle Classification
- Smart Detection
Enhanced Video Quality
Combines 4MP resolution with Smart Video Enhancement Technology, including WDR and noise reduction, for crisp footage in various lighting conditions.
- 4MP Super-High Definition
- Wide Dynamic Range
- 3D Digital Noise Reduction
Durable Design
Built with a metal turret housing and IP67 rating, this camera withstands harsh weather, making it suitable for outdoor installations year-round.
- IP67 Weatherproof
- Metal Construction
- Turret Form Factor
Deployment / Use Cases
Ideal for commercial, retail, and residential security applications, the S445S excels in environments requiring detailed monitoring and reliable performance. Its turret design offers a discreet profile while deterring vandalism.
Common use cases include perimeter surveillance, parking lot monitoring, entryway security, and indoor hallways. The camera's PoE support simplifies installation by delivering power and data over a single Ethernet cable, reducing wiring complexity.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Outdoor Perimeter Security
With IP67 weatherproofing and color night vision, this camera provides 24/7 coverage for building exteriors, gates, and fences.
Retail & Commercial Monitoring
AI-powered detection helps track customer and vehicle movement, supporting loss prevention and operational insights in stores or warehouses.
Physical Profile
The turret form factor measures 3.30" (83.70 mm) in height and 4.40" (111.76 mm) in diameter, with a weight of 1.21 lb (550 g). Its compact size facilitates easy mounting on ceilings or walls using the included template and hardware. The metal construction ensures durability, while the IP67 rating guarantees protection against dust and water ingress.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.30" (83.70 mm), 1.21 lb (550 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 3.30" (83.70 mm)
- Weight
- 1.21 lb (550 g)
- Length
- 2.8 mm (0.11")
What's in the Box
This package includes all necessary components for installation and operation:
Highlights
- 4MP resolution for detailed 2688 x 1520 video at 30 fps
- AI-powered color night vision up to 98.43 ft (30 m)
- Wide 137° diagonal field of view with fixed 2.8 mm lens
- H.265+ compression reduces bandwidth and storage needs
- IP67 weatherproof rating for reliable outdoor use
- PoE and DC 12V power options for flexible installation
- AI-enhanced human and vehicle detection analytics
- Two-way audio and alarm I/O integration capabilities
- Metal turret design with ceiling/wall mounting
- 2-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | INSIGHT S445S(2.8MM) |
| Brand Name | VIGI |
| Product Line | InSight |
| Product Model | S445S |
| Product Name | 4MP ColorPro 2.0 Turret Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared/Color |
| Number of IR LEDs | 2 |
| Wide Dynamic Range (WDR) | Yes |
| Wide Dynamic Range Detail | 120 dB |
| AI-powered | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/1.79" |
| Color Supported | Color |
| Field of View | Horizontal FOV: 112.5° ? Vertical FOV: 61.4° ? Diagonal FOV: 137° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.265+,H.265,H.264,H.264+,H.264H,H.265M |
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 30 fps |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1 |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/3 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | TCP/IP,UDP,ICMP,HTTP,HTTPS,DHCP,DNS,RTSP,NTP,UPnP,SSL/TLS,FTP,SFTP,RTP,IPv4,IPv6,ARP,RTMP,SNMP,SMTP |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 17.90 W |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Product Material | Metal |
| Mount Type | Ceiling Mount,Wall Mount |
| Form Factor | Turret |
| Durability | Water Proof,Weather Proof |
| Height | 3.30" (83.70 mm) |
| Diameter | 4.40" (111.76 mm) |
| Weight (Approximate) | 1.21 lb (550 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Maximum Operating Humidity (Non-condensing) | 95% |
| Maximum Storage Humidity (Non-condensing) | 95% |
| Miscellaneous | |
| Features | Alarm Triggering,Vehicle Detection,Human Detection,Wide Dynamic Range,3D Digital Noise Reduction,Noise Reduction,White Balance,Built-in Microphone,Day/Night,Mirror |
| Package Contents | 4MP ColorPro 2.0 Turret Network Camera Waterproof Cable Attachments GNU General Public License Notice Mounting Template Installation Guide L-shaped Metal Screwdriver Tapping Screws Anchors Washers Screws Nuts Terminal Blocks |
| Ingress Protection Rating | IP67 |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the resolution and video quality of this camera?
The VIGI InSight S445S delivers 4MP (2688 x 1520) resolution at 30 frames per second, providing sharp, high-definition video suitable for identifying details like faces or license plates. It supports H.265+, H.265, and H.264 compression formats to optimize storage without compromising clarity.
How does the night vision perform in low-light conditions?
This camera features AI-powered ColorPro 2.0 technology, offering infrared/color night vision with a range of 98.43 ft (30 m). It uses two IR LEDs and an AI-ISP to maintain color video in ultra low-light, enhancing visibility compared to traditional monochrome night vision.
What AI capabilities does this camera include?
AI enhancements include real-time human and vehicle detection, classification, and analytics. These smart features reduce false alarms by distinguishing between relevant activity (like people or cars) and irrelevant motion, making monitoring more efficient and actionable.
Is this camera suitable for outdoor installation?
Yes, with an IP67 weatherproof rating and metal turret construction, the S445S is designed for outdoor use. It withstands temperatures from -22°F to 140°F (-30°C to 60°C) and up to 95% humidity, ensuring reliable performance in rain, snow, or dust.
What power options are available for this network camera?
It supports both Power over Ethernet (PoE) and DC 12V power sources, with a maximum consumption of 17.90 W. PoE allows for simpler installation by combining power and data over a single Ethernet cable, while DC provides a traditional wired option.
What is included in the package for installation?
The package contains the 4MP ColorPro 2.0 Turret Network Camera, waterproof cable attachments, mounting template, installation guide, L-shaped metal screwdriver, screws, anchors, washers, nuts, terminal blocks, and a GNU General Public License notice for comprehensive setup.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
